Y 30081B (80168) - Snapper 30" Walk-Behind Mower, 8hp Shift Lever Parts Diagram

30" Walk-Behind Mower, 8hp

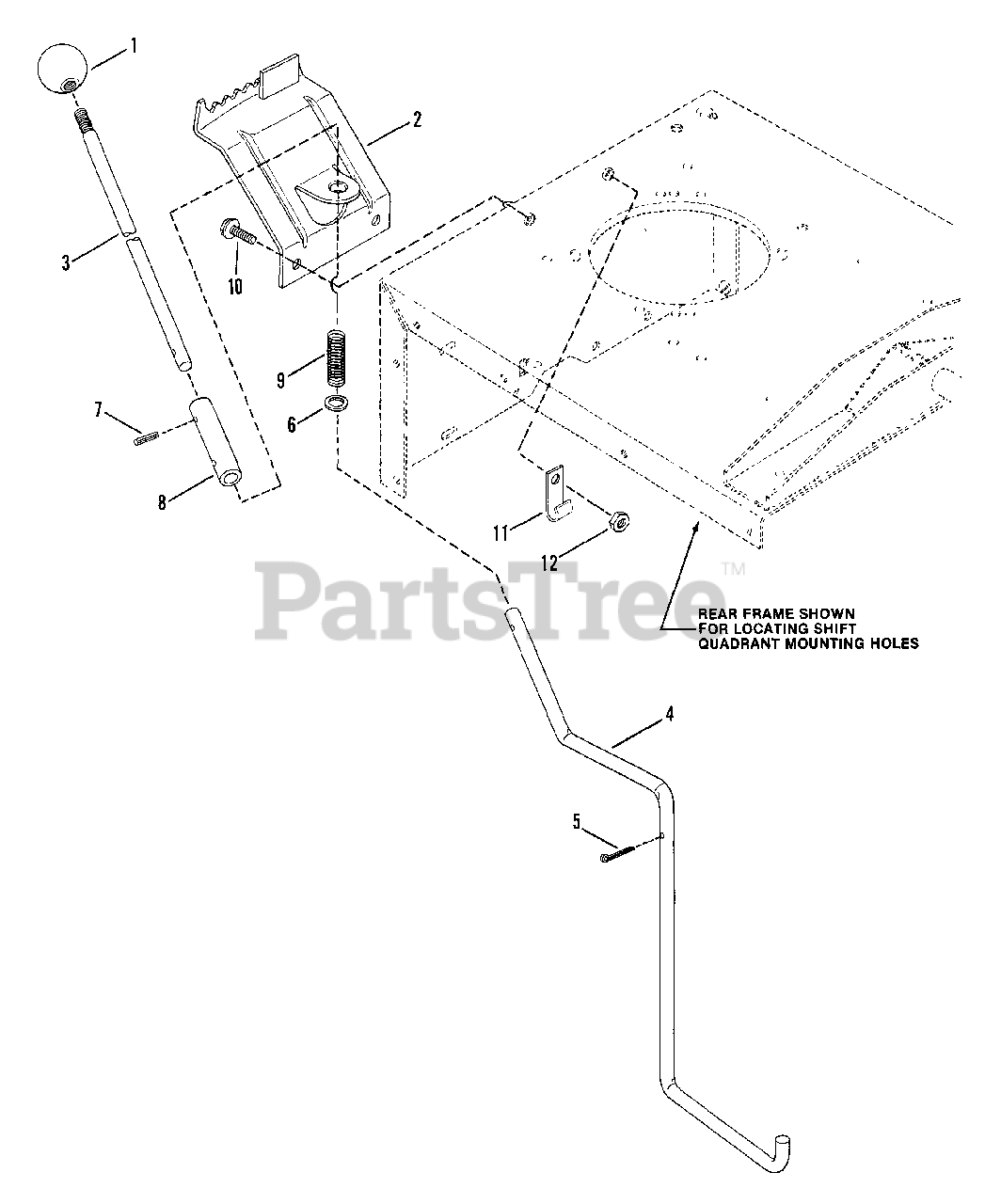

Shift Lever Parts Diagram

  • Title
1

Snapper 7014501

KNOB, Shift Lever, Upper
(Superseded to 7014501YP)

$17.99

$

In Stock, Qty 6

0

2

Snapper 7040554

QUADRANT, Shift
(Superseded to 7040554YP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper 7018856

LEVER, Shift, Upper
(Superseded to 7018856YP)

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7017339

LEVER, Shift, Lower

$

$

Currently unavailable

5

Snapper 7091313

COTTER-PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7014296

WASHER, Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 7090844

ROLL-PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7021997

CONNECTOR, Shift Lever
(Superseded to 7021997YP)

$38.99

$

Usually ships in 2-12 days

0

9

Snapper 7015547

SPRING
(Superseded to 7015547YP)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, 5/16-18 x 3/4" H.W.H. Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7012652

CLIP, Harness
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0
