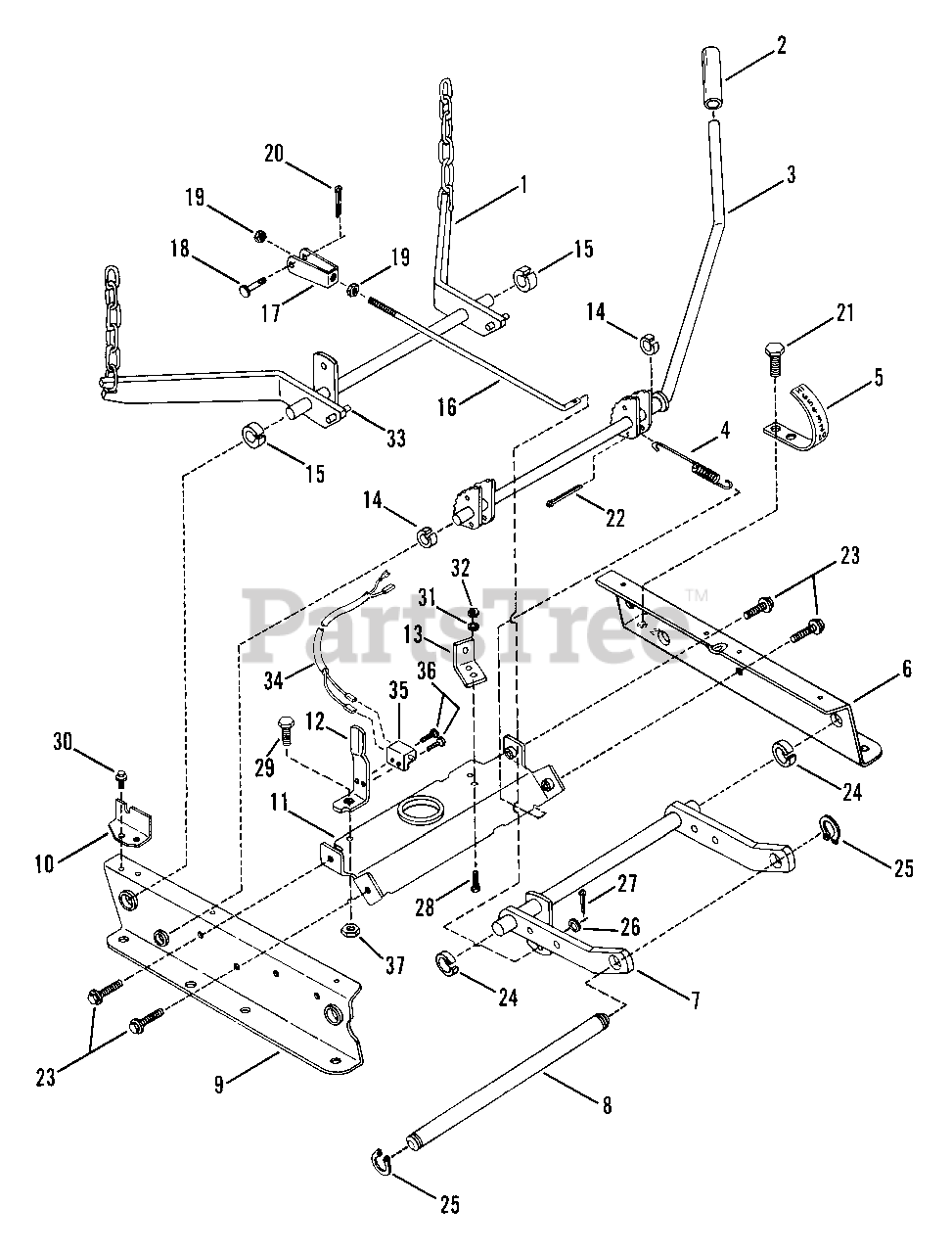

Y 30081B (80168) - Snapper 30" Walk-Behind Mower, 8hp Rails, Lift Arms, Cam Lift Parts Diagram

30" Walk-Behind Mower, 8hp

Rails, Lift Arms, Cam Lift Parts Diagram

  • Title

1

Snapper 7057283

ASSEMBLY, REAR LIFT ARM
(Superseded to 7057283YP)

$193.99

$

Usually ships in 2-12 days

0

2

Snapper 7010684

GRIP, Cam Lift Lever

$6.99

$

In Stock, Qty 8

0

3

Snapper 7042641

CAM LIFT LEVER

Note: Was 47894

$

$

Not available

4

Snapper 7011074

SPRING, Cam Lift

$

$

Not available

5

Snapper 7031975

PLATE, Indicator
(Superseded to 7031975YP)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper 7037709

RAIL, Left Hand
(Superseded to 7037709YP)

$9.99

$

Usually ships in 2-12 days

0

7

Snapper 7047710

ASSEMBLY, FRONT LIFT ARM

$

$

Not available

8

Snapper 7020882

SUPPORT ROD (Front Lift Arm to Frame Front End)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper 7037710

RAIL, Right Hand
(Superseded to 7037710YP)

$10.99

$

In Stock, only 1 left!

0

10

Snapper 7032561

BRACKET, Cable
(Superseded to 7032561YP)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 7031838

BRACE, Top Rail
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

12

Snapper 7032600

GUIDE, Belt
(Superseded to 7032600YP)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

$8.99

$

Usually ships in 2-12 days

0

14

Snapper 7010996

RING, White
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7012030

ROD, Timing

$2.99

$

In Stock, Qty 7

0

17

Snapper 7031837

CLEVIS, Timing Rod
(Superseded to 7031837YP)

$27.99

$

Usually ships in 2-12 days

0

18

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

19

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 91082

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7090292

SCREW, 3/8-24 x 3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

22

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

23

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Head Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

28

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

29

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

30

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Head Cap Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

31

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7010737

PIN, Roll

Note: (Part of item 1)

$

$

Not available

34

Snapper 7018957

WIRE, Mower Deck

$

$

Currently unavailable

35

Snapper 7014847

SWITCH, Interlock
(Superseded to 7014847YP)

Note: Was 15668

$10.99

$

Usually ships in 2-12 days

0

36

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

37

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
