Y 30081B (80168) - Snapper 30" Walk-Behind Mower, 8hp Cutting Deck, Blade Parts Diagram

30" Walk-Behind Mower, 8hp

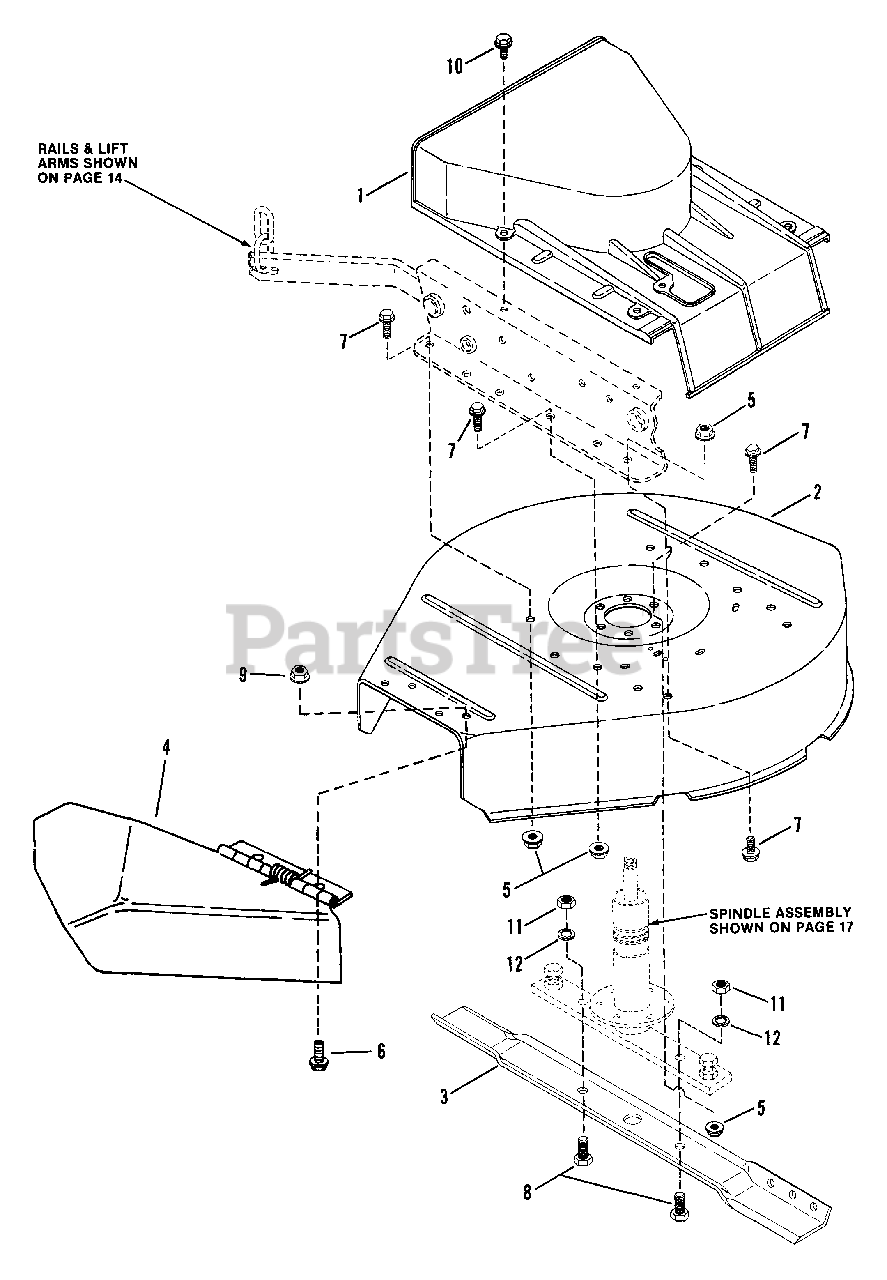

Cutting Deck, Blade Parts Diagram

  • Title
1

Snapper 7016019

COVER, Spindle & Belt
(Superseded to 7016019YP)

$32.99

$

In Stock, only 1 left!

0

2

Snapper 7061971

DECK, 30"
(Superseded to 7061971YP)

Note: Was 49743 or 60996 (Now 61971 + 52553)

$902.99

$

Usually ships in 2-12 days

0

3

Snapper 7018069

BLADE
(Superseded to 7018069BZYP)

$32.99

$

In Stock, only 4 left!

0

4

Snapper 7052553

DEFLECTOR, Discharge
(Superseded to 7052553YP)

Note: Was 52057

$243.99

$

In Stock, only 1 left!

0

5

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

6

Snapper 7090721

BOLT, 5/16-18 x 1/2" Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

7

Snapper 7091588

BOLT, 3/8-16 x 3/4" Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

8

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

11

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0
