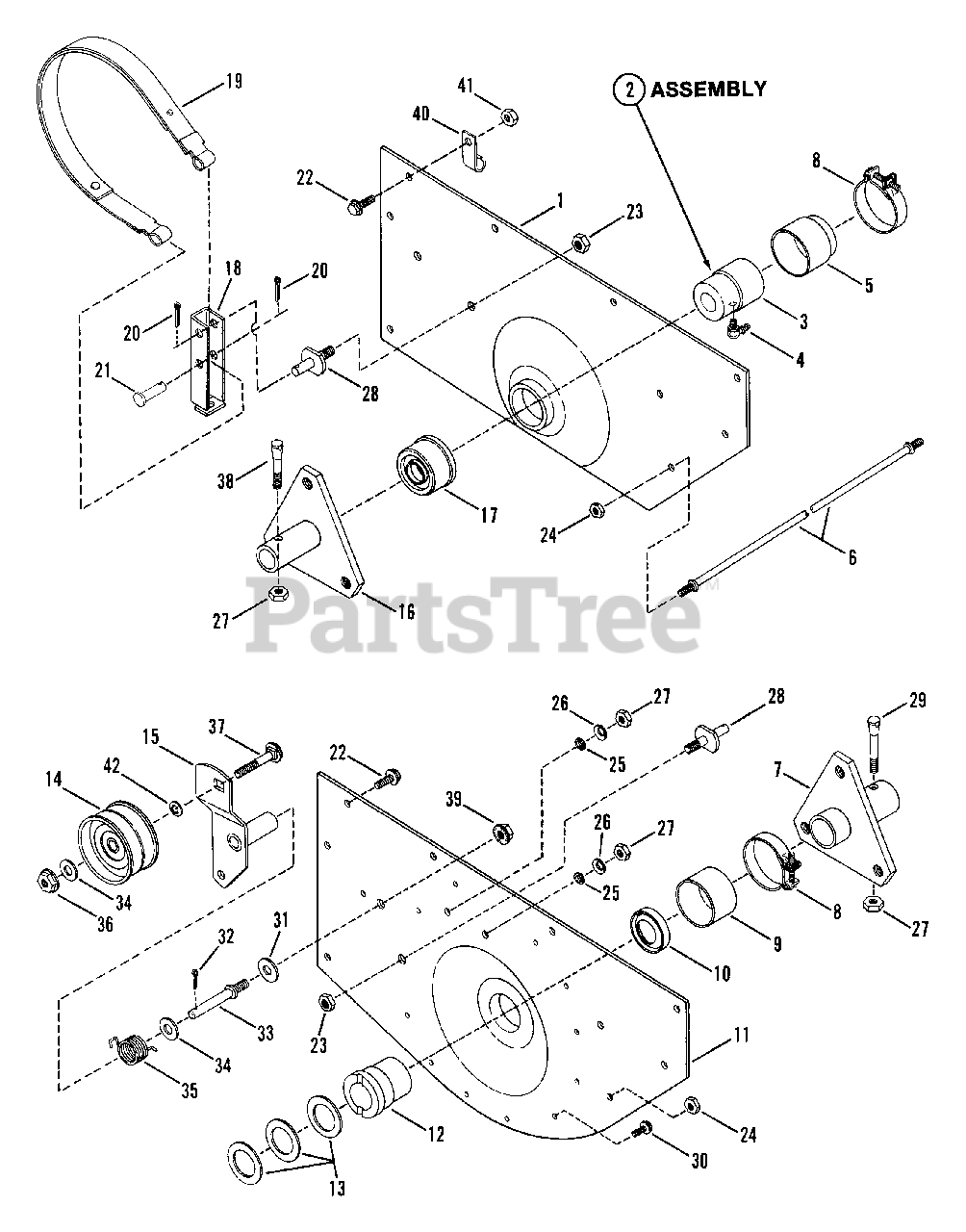

Y 30080 (88027) - Snapper 30" Walk-Behind Mower, 8hp Frame, Right & Left Side Parts Diagram

30" Walk-Behind Mower, 8hp

Frame, Right & Left Side Parts Diagram

  • Title

1

Snapper 7036189

FRAME SIDE, Right Hand
(Superseded to 7036189YP)

$85.99

$

Usually ships in 2-12 days

0

2

Snapper 7050918

ASSEMBLY, Axle Bearing
(Superseded to 7050918YP)

Note: (Includes items 3 & 4)

$

$

Not available

3

Snapper 7010989

BEARING, Axle

$

$

Not available

4

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

5

Snapper 7014658

CAP
(Superseded to 7014658YP)

$7.99

$

In Stock, Qty 20+

0

6

Snapper 7015552

ROD, Tie

$

$

Currently unavailable

7

Snapper 7040543

HUB, Rear Wheel, Left Hand

$

$

Currently unavailable

8

Snapper 7011037

CLAMP, 1-7/8"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

9

Snapper 7031732

CAP, Dust
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

10

Snapper 7011817

SEAL, 1-1/8"
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7036183

FRAME SIDE, Left Hand

$

$

Currently unavailable

12

Snapper 7012296

BEARING, Axle
(Superseded to 7012296YP)

$14.99

$

In Stock, only 4 left!

0

13

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

14

Snapper 7015615

PULLEY, Idler
(Superseded to 7015615YP)

$26.99

$

Usually ships in 2-12 days

0

15

Snapper 7040539

IDLER ARM
(Superseded to 7040539YP)

$54.99

$

Usually ships in 2-12 days

0

16

Snapper 7040544

HUB, Rear Wheel, Right Hand

$

$

Currently unavailable

17

Snapper 7014658

CAP, Seal L.H. 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

18

Snapper 7032526

ARM, Brake
(Superseded to 7032526YP)

$38.99

$

Usually ships in 2-12 days

0

19

Snapper 7018878

BAND, Brake
(Superseded to 7018878YP)

$68.99

$

Usually ships in 2-12 days

0

20

Snapper 7090673

COTTER-PIN, 1/16 x 1/2"
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7073953

PIN, Clevis
(Superseded to 7073953YP)

Note: Was 10434

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7090289

LOCKNUT, 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

24

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7011782

WASHER, Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7092062

NUT, 5/16-24 Hex Lock, GR C
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7015541

STUD, Brake

$

$

Not available

29

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered, Left Hand
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

30

Snapper 7091122

SCREW, 1/4-20 x 1/2" H.W.H. Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 5

0

31

Snapper 7020984

WASHER, 3/8" Flat
(Superseded to 7021746YP)

Note: Was 21746

$3.99

$

In Stock, Qty 11

0

32

Snapper 7091597

COTTER-PIN, 3/32 x 1/2"
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7012111

STUD, Idler
(Superseded to 703836)

$8.49

$

In Stock, only 1 left!

0

34

Snapper 7090122

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7015660

SPRING, Idler Return
(Superseded to 7015660YP)

$6.99

$

Usually ships in 2-12 days

0

36

Snapper 7091619

LOCKNUT, 3/8-16 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

37

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Short Neck Carriage
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

38

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered, Right Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

39

Snapper 7090962

LOCKNUT, 3/8-24 Hex Flange

$4.49

$

In Stock, Qty 6

0

40

Snapper 7012652

CLIP, Harness
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 17

0

42

Snapper 7013847

RETAINER, Bolt, 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0
