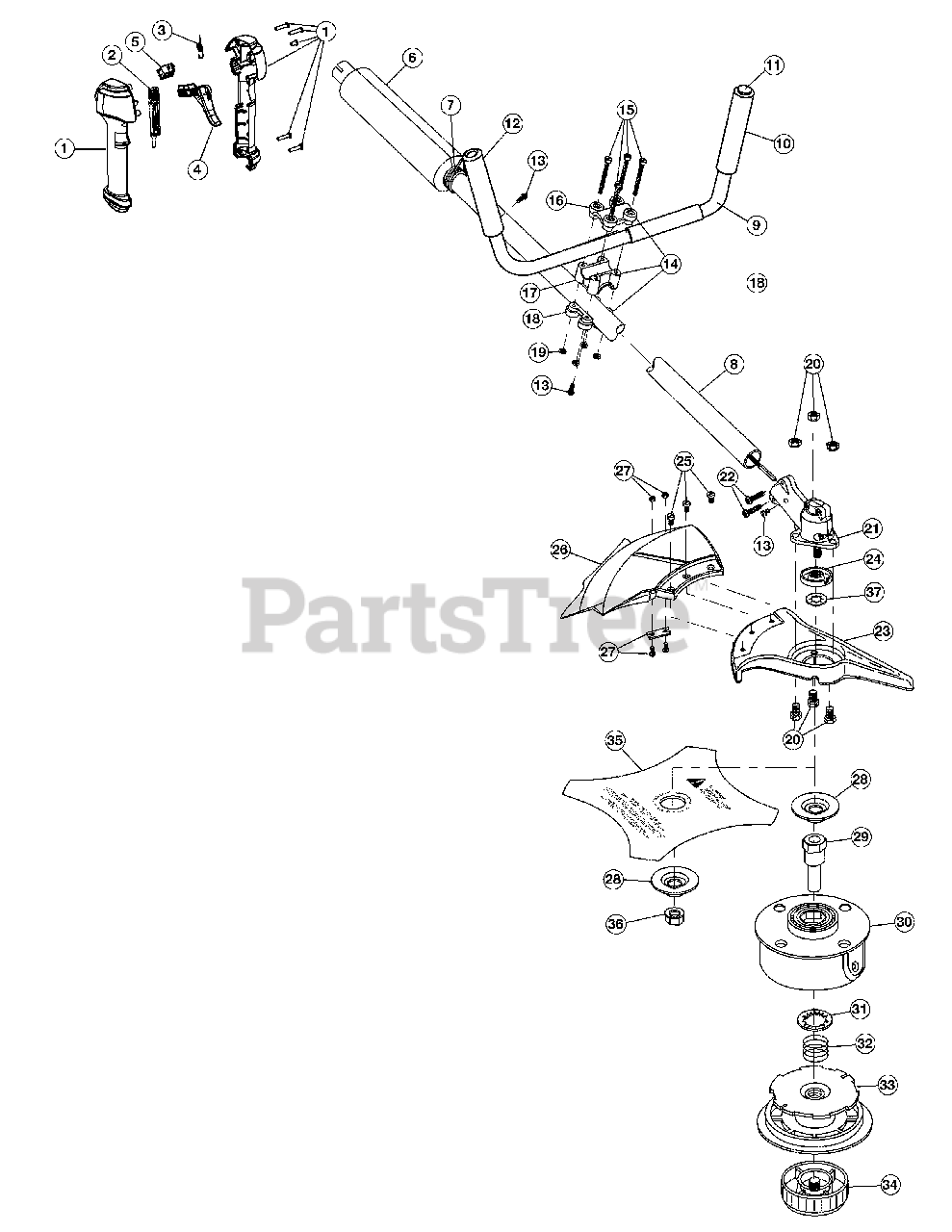

Y 2900 EC (41AD290C900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-05175

Throttle Housing Assembly (Incl. 2 - 5)

$

$

Not available

2

MTD 731-04971C-10

Throttle Trigger Lock-Out
(Superseded to 731-04971B-10)

$5.49

$

In Stock, only 1 left!

0

3

MTD 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

4

MTD 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

5

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

6

MTD 791-180858

Foam Grip & Cover

$

$

Not available

7

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

MTD 791-160226

Drive Shaft Housing Assembly

$70.99

$

In Stock, only 2 left!

0

9

MTD 753-05177

Bullhorn Handle Assembly (Incl. 10 - 13)

$

$

Not available

10

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-612021

Plug
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

12

MTD 753-04096

Adapter
(Superseded to 792-10029)

$5.49

$

Usually ships in 3-6 days

0

13

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

14

MTD 791-683295

Handle Bracket Assembly (Incl. 13 & 15 - 19)

$45.99

$

Usually ships in 3-6 days

0

15

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

16

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

17

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

18

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

19

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

20

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

21

MTD 791-182193

2 Piece Gearbox Assembly (Incl. 13, 22, 24 & 37)

$99.99

$

In Stock, only 2 left!

0

22

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

23

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

24

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 2 left!

0

25

MTD 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

26

MTD 791-683299

Shield Assembly (Incl. 27)

$

$

Not available

27

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

28

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 2 left!

0

29

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

30

MTD 791-683301

Outer Spool Assembly (Incl. 31)

$48.99

$

In Stock, Qty 6

0

31

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

32

MTD 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

33

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

34

MTD 791-180814B

Bump Head Knob Assembly (Incl. 31)

$21.99

$

In Stock, Qty 20+

0

35

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 4 left!

0

36

MTD 712-04105

Nut

$10.99

$

Usually ships in 3-6 days

0

37

MTD 753-04348

Palnut

$6.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Harness

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

MTD 791-180014B

Blade Retaining Kit (Incl. 28 & 36)

Note: (not shown)

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: (not shown)

$14.99

$

In Stock, only 1 left!

0

MTD 753-04216

Replacement Line, 0.105 Diameter

Note: (not shown)

$

$

Not available

MTD 753-1224

Reel and Line Assembly

Note: (not shown)

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1161

Bump Head Assembly (Incl. 33 - 38)
(Superseded to 791-147498)

Note: (not shown)

$117.99

$

In Stock, only 1 left!
