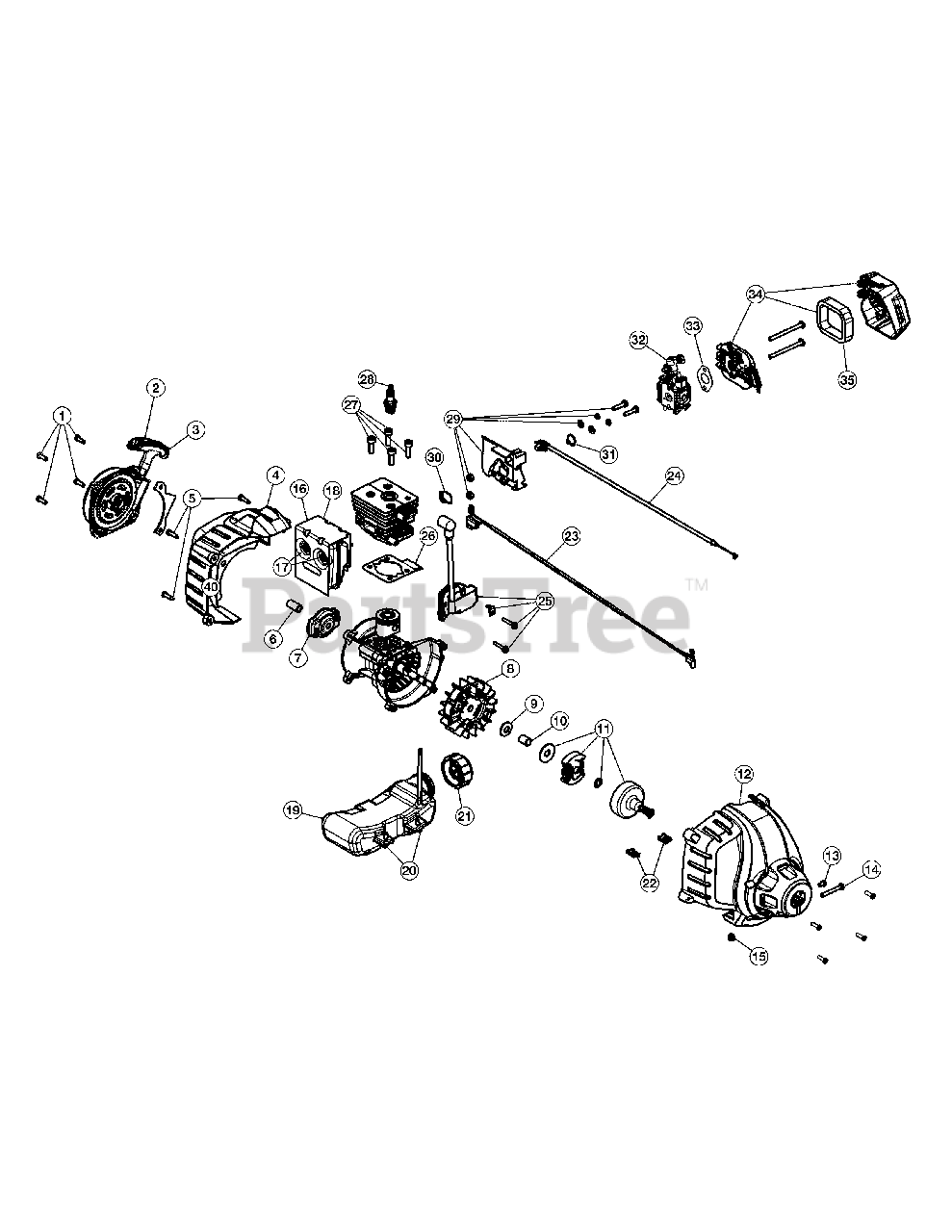

Y 2900 EC (41AD290C900) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

Starter Assembly (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-06245

Rear Engine Cover (Incl. 5)

$

$

Not available

5

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 753-06104

Adapter

$4.49

$

In Stock, Qty 20+

0

7

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

8

MTD 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

9

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 20+

0

10

MTD 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

11

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 9

0

12

MTD 753-06249

Clutch Cover Assembly (Incl. 2, 13 -15 and 22)

$

$

Not available

13

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

14

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

15

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

16

MTD 753-06418

Muffler Assembly (Incl. 17 and 18)
(Superseded to 753-08745)

$26.99

$

In Stock, only 1 left!

0

17

MTD 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

18

MTD 753-04619

Muffler Gasket

$9.49

$

In Stock, only 3 left!

0

19

MTD 753-06856

Fuel Tank Assembly (Incl. 20 and 21)
(Superseded to 753-06250)

$21.99

$

In Stock, Qty 8

0

20

MTD 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

21

MTD 753-06857

Fuel Cap

$7.99

$

In Stock, only 4 left!

0

22

MTD 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

23

MTD 791-182815

Lead Wires

$

$

Not available

24

MTD 753-05892

Throttle Cable

$6.99

$

Usually ships in 3-6 days

0

25

MTD 753-06826

Module Assembly

$34.99

$

In Stock, only 1 left!

0

26

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

27

MTD 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

28

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

29

MTD 753-06189

Insulator Assembly (Incl. 30 and 31)

$7.99

$

In Stock, only 3 left!

0

30

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

31

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

32

MTD 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

33

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

34

MTD 753-06913

Air Cleaner Assembly (Incl. 35)

$11.99

$

In Stock, Qty 5

0

35

MTD 753-06417

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

MTD 753-06762

Short Block Assembly

Note: (not shown) (Incl. Crankcase, Cylinder,Piston, 8 - 11, 25 - 28)

$96.99

$

Usually ships in 3-6 days

0

MTD 625-04120

Electric Start Assembly

Note: (not shown)

$77.99

$

Usually ships in 3-6 days

0

MTD 49MESCBP953

Electric Start Chuck
(Superseded to 49MASCBP953)

Note: (not shown)

$20.99

$

In Stock, only 3 left!

0
