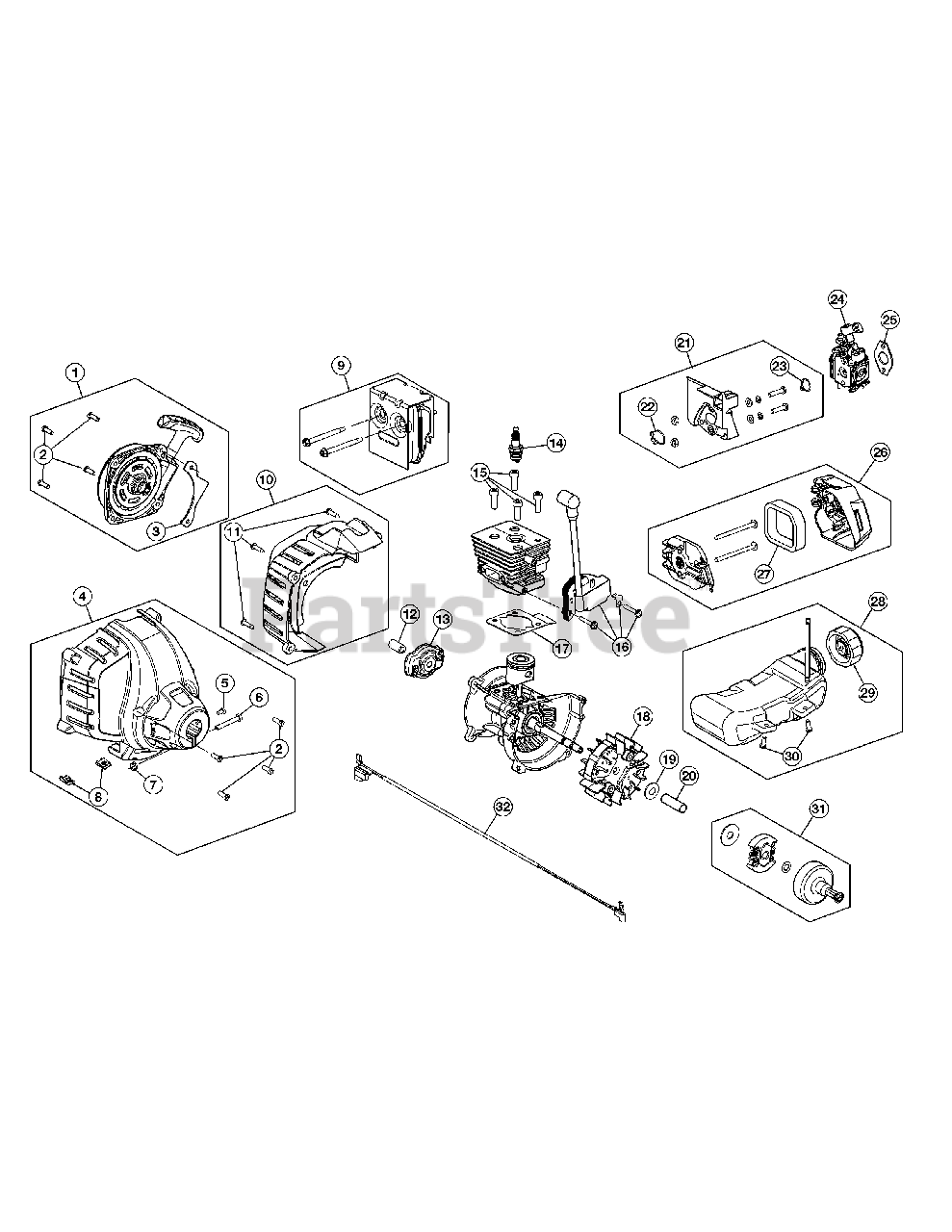

Y 2900 EC (41AD290C800) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

Starter Assembly (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-08250

Clutch Cover Assembly (Incl. 2 and 5 - 8)

$5.49

$

Usually ships in 3-6 days

0

5

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

6

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

7

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

8

MTD 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

9

MTD 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

In Stock, only 1 left!

0

10

MTD 753-06245

Rear Engine Cover (Incl. 11)

$

$

Not available

11

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

12

MTD 753-06104

Adapter

$4.49

$

In Stock, Qty 20+

0

13

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

14

MTD 753-08216

Spark Plug
(Superseded to 794-00097)

$6.99

$

In Stock, Qty 11

0

15

MTD 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

16

MTD 753-08379

Module Assembly

$32.99

$

Usually ships in 3-6 days

0

17

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

18

MTD 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

19

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 20+

0

20

MTD 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

21

MTD 753-06189

Insulator Assembly (Incl. 22 and 23)

$7.99

$

In Stock, only 3 left!

0

22

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

23

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

24

MTD 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

25

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

26

MTD 753-06913

Air Cleaner Assembly (Incl. 27)

$11.99

$

In Stock, Qty 5

0

27

MTD 753-06954

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

28

MTD 753-06250

Fuel Tank Assembly (Incl. 29 and 30)

$21.99

$

In Stock, Qty 8

0

29

MTD 753-06857

Tank Fuel Cap

$7.99

$

In Stock, only 4 left!

0

30

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

31

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 9

0

32

MTD 725-06194

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

MTD 753-06508

Short Block Assembly

Note: (Incl. Crankcase, Cylinder, Piston, 14 - 20)(not shown)

$108.99

$

Usually ships in 3-6 days

0
