Y 26 SS (41CD26SC900) - Yard Machines String Trimmer Engine Assembly Parts Diagram

String Trimmer

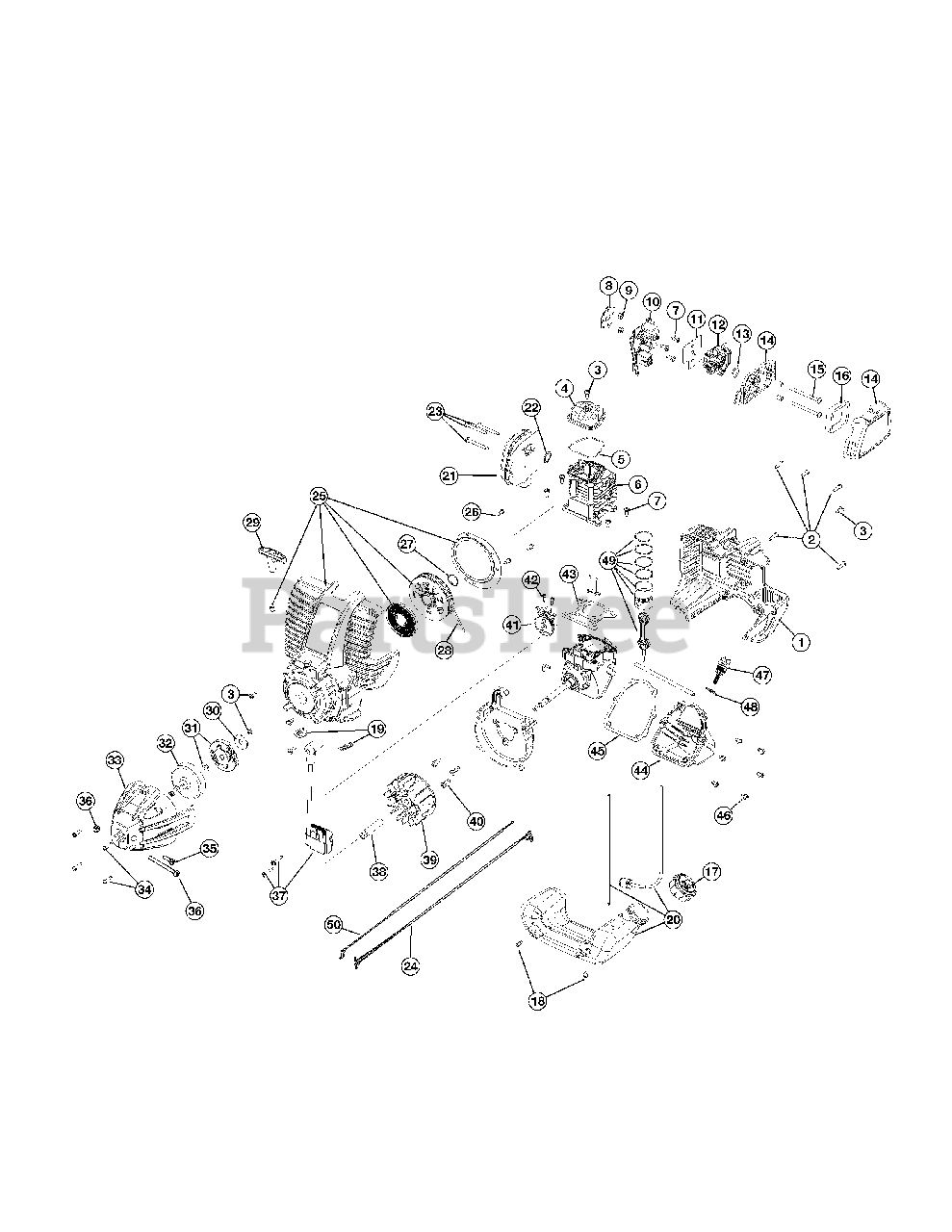

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05449

Engine Cover

$23.99

$

Usually ships in 3-6 days

0

2

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-05209

Valve Cover

$18.99

$

Usually ships in 3-6 days

0

5

MTD 721-04132

Valve Cover Gasket

$9.49

$

Usually ships in 3-6 days

0

6

MTD 753-05438

Cylinder Assembly (includes 5, 7 & 43)

$114.99

$

Usually ships in 3-6 days

0

7

MTD 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

8

MTD 753-05247

Insulator Gasket

$

$

Not available

9

MTD 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

10

MTD 753-05452

Insulator (includes 11)

$17.99

$

Usually ships in 3-6 days

0

11

MTD 753-05439

Carburetor Gasket

$

$

Not available

12

MTD 753-1225

Carburetor w/Primer

$71.99

$

In Stock, Qty 13

0

13

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

14

MTD 753-06061

Air Filter Cover Assembly (includes 16)

$

$

Not available

15

MTD 710-04517

Air Filter Mounting Screw

$5.49

$

In Stock, Qty 20+

0

16

MTD 753-05442

Air Filter

$12.99

$

In Stock, Qty 12

0

17

MTD 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

18

MTD 791-181930

Screw

$6.99

$

In Stock, only 1 left!

0

19

MTD 791-182366

Clip Nut

$5.99

$

In Stock, only 1 left!

0

20

MTD 753-05443

Fuel Tank Assembly (includes 17)

$

$

Not available

21

MTD 753-05444

Muffler Assembly (includes 22 & 23)

$43.99

$

Usually ships in 3-6 days

0

22

MTD 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

23

MTD 710-04487

Muffler Mounting Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

24

MTD 753-05264

Lead Wire

$16.99

$

In Stock, only 1 left!

0

25

MTD 753-06062

Starter Housing Assembly (includes 3 & 26-29)

$35.99

$

Usually ships in 3-6 days

0

26

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 712-04096

Push Nut

$

$

Not available

28

MTD 753-05840

Rope
(Superseded to 791-613103)

$10.99

$

In Stock, only 2 left!

0

29

MTD 631-04164A

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

MTD 9162-1

Washer

$4.49

$

In Stock, only 3 left!

0

31

MTD 753-1238

Clutch Assembly

$45.99

$

In Stock, Qty 13

0

32

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

33

MTD 753-05446

Clutch Cover Assembly (includes 34-36)

$

$

Not available

34

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

36

MTD 753-04291

Clamping Screw Assembly

$

$

Not available

37

MTD 753-05243

Ignition Module Assembly
(Superseded to 753-05301)

$113.99

$

Usually ships in 3-6 days

0

38

MTD 750-04434

Spacer

$6.99

$

In Stock, Qty 14

0

39

MTD 753-05240

Flywheel

$76.99

$

In Stock, only 2 left!

0

40

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

41

MTD 753-04919

Cam Bracket Assembly (includes 42)

$36.99

$

Usually ships in 3-6 days

0

42

MTD 791-181012

Cam Bracket Screw

$

$

Not available

43

MTD 791-182374

Cylinder Gasket

$

$

Not available

44

MTD 791-182377

Oil Pan (includes 45 & 46)

$

$

Not available

45

MTD 791-181018

Oil Pan Gasket

$

$

Not available

46

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

47

MTD 791-182378

Dipstick Assembly (includes 48)

$10.99

$

Usually ships in 3-6 days

0

48

MTD 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

49

MTD 753-06031

Piston Assembly

$

$

Not available

50

MTD 753-05266

Throttle Cable

$20.99

$

In Stock, Qty 12

0

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

Note: Not Shown

$7.49

$

In Stock, Qty 6

0

MTD 753-06117

Shortblock Assembly (includes 3-7 & 37-49)

Note: Not Shown

$

$

Not available
