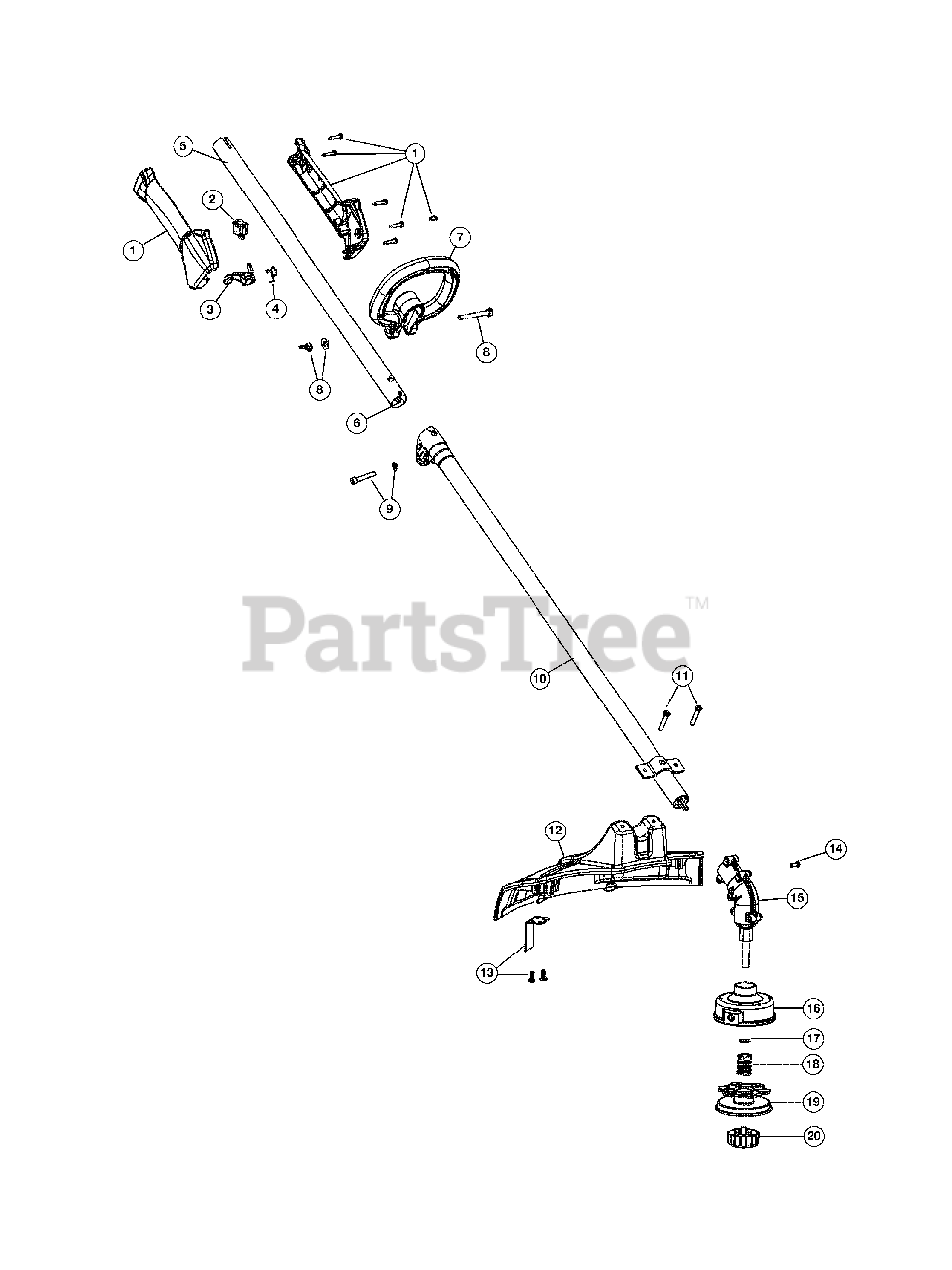

Y 2550 EC (41AD25SC900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-06217

Upper Shaft Housing Assembly (includes 6)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-06216

Upper Flexible Drive Shaft

$7.49

$

In Stock, only 2 left!

0

7

MTD 753-06198

D-Handle (includes 8)

$4.99

$

Usually ships in 3-6 days

0

8

MTD 753-06199

D-Handle Hardware Assembly

$2.49

$

Usually ships in 3-6 days

0

9

MTD 753-06215

Clamp Hardware

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06330

Lower Shaft Housing Assembly

$22.99

$

In Stock, only 1 left!

0

11

MTD 753-06125

Shield Mounting Screw

$6.99

$

In Stock, only 4 left!

0

12

MTD 753-06329

Shield Assembly (includes 11 & 13)

$13.99

$

Usually ships in 3-6 days

0

13

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

14

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

15

MTD 753-06165

Gearbox Assembly (includes 15-20)

$50.99

$

In Stock, only 1 left!

0

16

MTD 753-04284

Outer Spool Assembly (includes 17)

$28.99

$

In Stock, only 1 left!

0

17

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

18

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

19

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

20

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Reel & Line Assembly

Note: Not Shown

$28.99

$

In Stock, only 2 left!

0

MTD 753-06276

Allen Wrench

Note: Not Shown

$2.49

$

In Stock, only 2 left!
