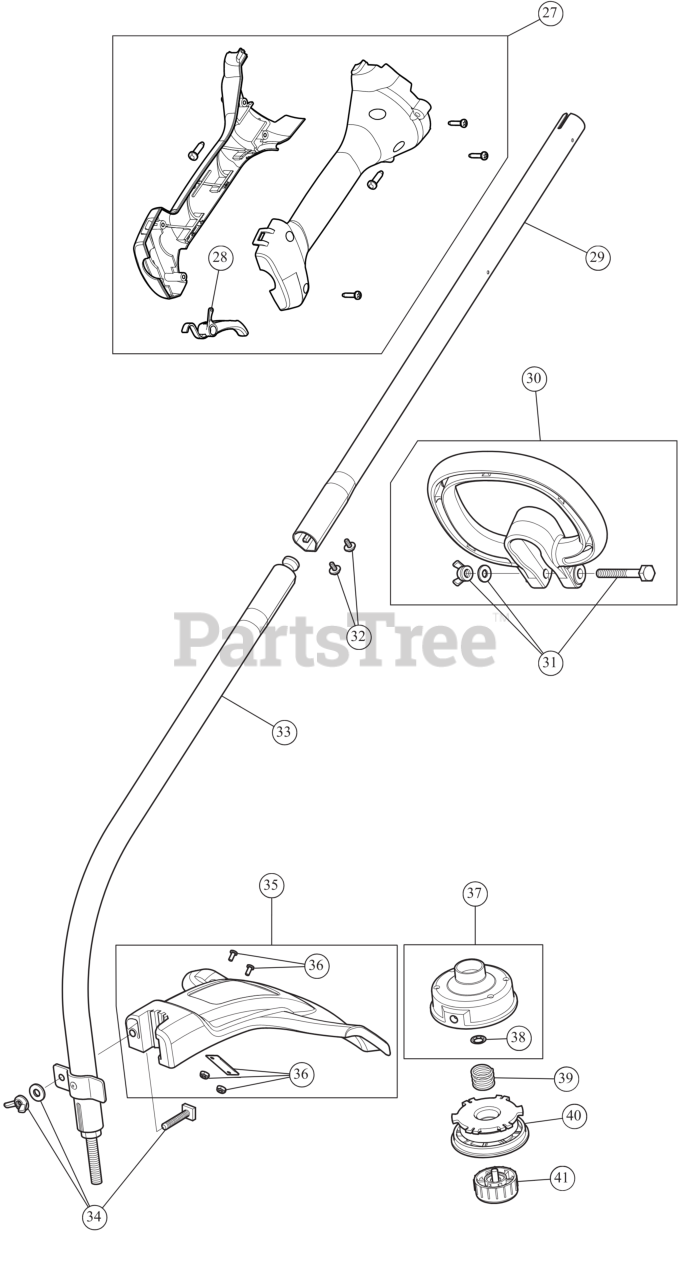

Y 2530 (41AD130G900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

27

MTD 753-09146

THROTTLE GRIP ASSEMBLY

Note: (Incl. 28)

$8.49

$

In Stock, only 4 left!

0

28

MTD 731-13693

THROTTLE TRIGGER

$2.99

$

In Stock, Qty 20+

0

29

MTD 753-09147

UPPER BOOM ASSEMBLY

$7.49

$

In Stock, only 4 left!

0

30

MTD 753-06198

HANDLE

Note: (Incl. 31)

$4.99

$

Usually ships in 3-6 days

0

31

MTD 753-06199

HANDLE HWD

$2.49

$

Usually ships in 3-6 days

0

32

MTD 710-06562

SCREW 8-32X3/8

$2.99

$

In Stock, only 3 left!

0

33

MTD 753-08687

LOWER BOOM ASSEMBLY

$22.99

$

In Stock, only 1 left!

0

34

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

35

MTD 753-06200

GUARD ASSEMBLY

Note: (Incl. 36)

$23.99

$

Usually ships in 3-6 days

0

36

MTD 753-06803

BLADE ASSEMBLY CUTOFF

$3.49

$

Usually ships in 3-6 days

0

37

MTD 753-04284

REEL:OTR W/RET

Note: (Incl. 38)

$28.99

$

Usually ships in 3-6 days

0

38

MTD 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

39

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, Qty 6

0

40

MTD 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

41

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 19

0

MTD 953-1156

REEL SPOOL ASSEMBLY

$31.99

$

In Stock, only 1 left!

0
