Y 2500 (41BD25CC900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

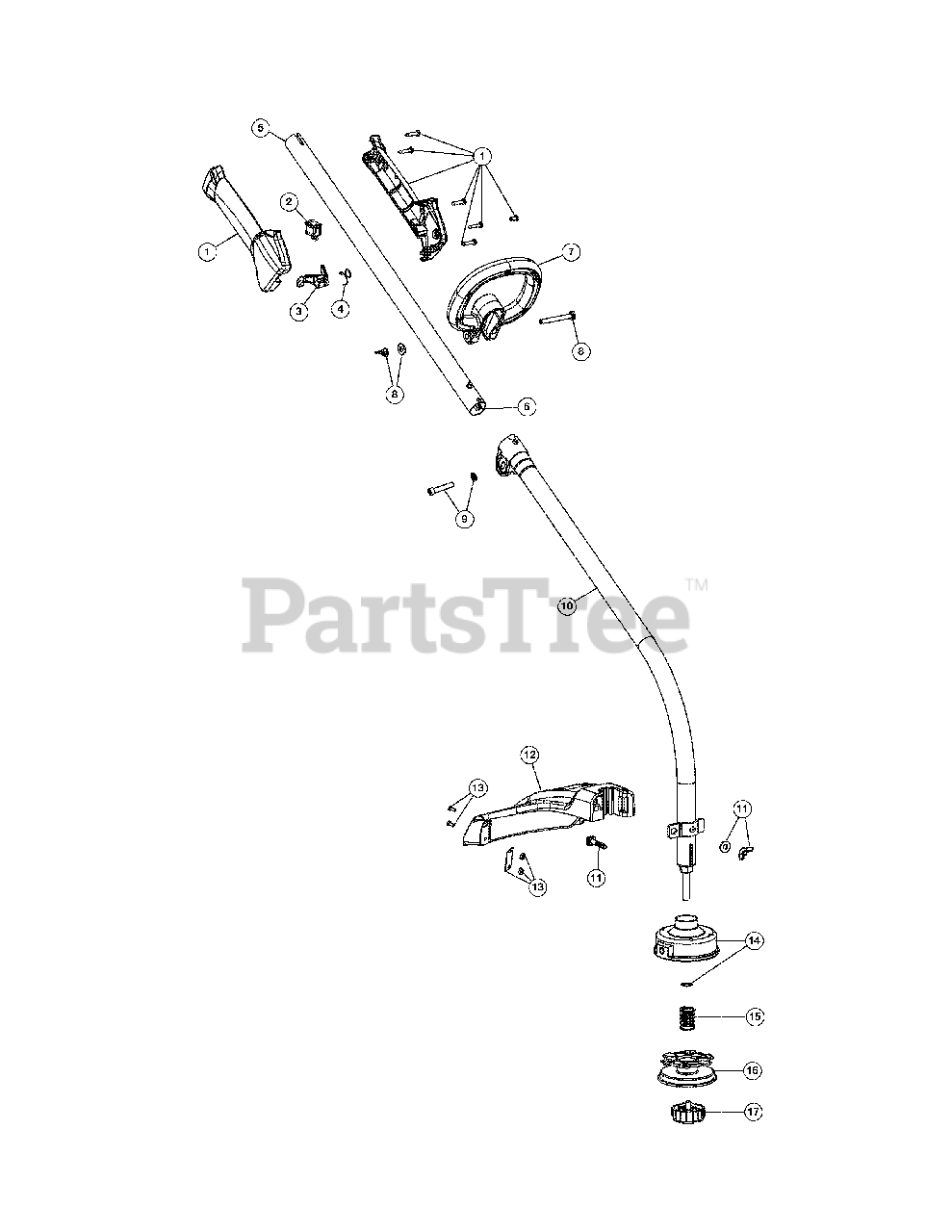

General Assembly Parts Diagram

  • Title

1

MTD 753-1211

Throttle Housing Assembly (includes 3-4)
(Superseded to 753-04234)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-06217

Upper Shaft Housing Assembly (includes 6)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-06216

Upper Flexible Drive Shaft

$7.49

$

In Stock, only 2 left!

0

7

MTD 753-06198

D-Handle (includes 8)

$4.99

$

Usually ships in 3-6 days

0

8

MTD 753-06199

D-Handle Hardware Assembly

$2.49

$

Usually ships in 3-6 days

0

9

MTD 753-06215

Clamp Hardware

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06214

Lower Shaft Housing Assembly (includes 9 & 14)

$38.99

$

In Stock, Qty 20+

0

11

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

12

MTD 753-04283

Shield Assembly (includes 11 & 13)

$50.99

$

In Stock, only 1 left!

0

13

MTD 753-1191

Blade Assembly

$64.99

$

In Stock, only 1 left!

0

14

MTD 753-04284

Outer Spool w/Retainer

$28.99

$

In Stock, only 2 left!

0

15

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

16

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

17

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 791-153577B

Reel & Line Assembly .080 Line

Note: Not shown

$28.99

$

In Stock, only 2 left!

0

MTD 753-06276

Allen Wrench

Note: Not shown

$2.49

$

In Stock, only 2 left!
