Y 25 BT (41AD25BT900) - Yard Machines String Trimmer Trimmer - Engine Parts Diagram

String Trimmer

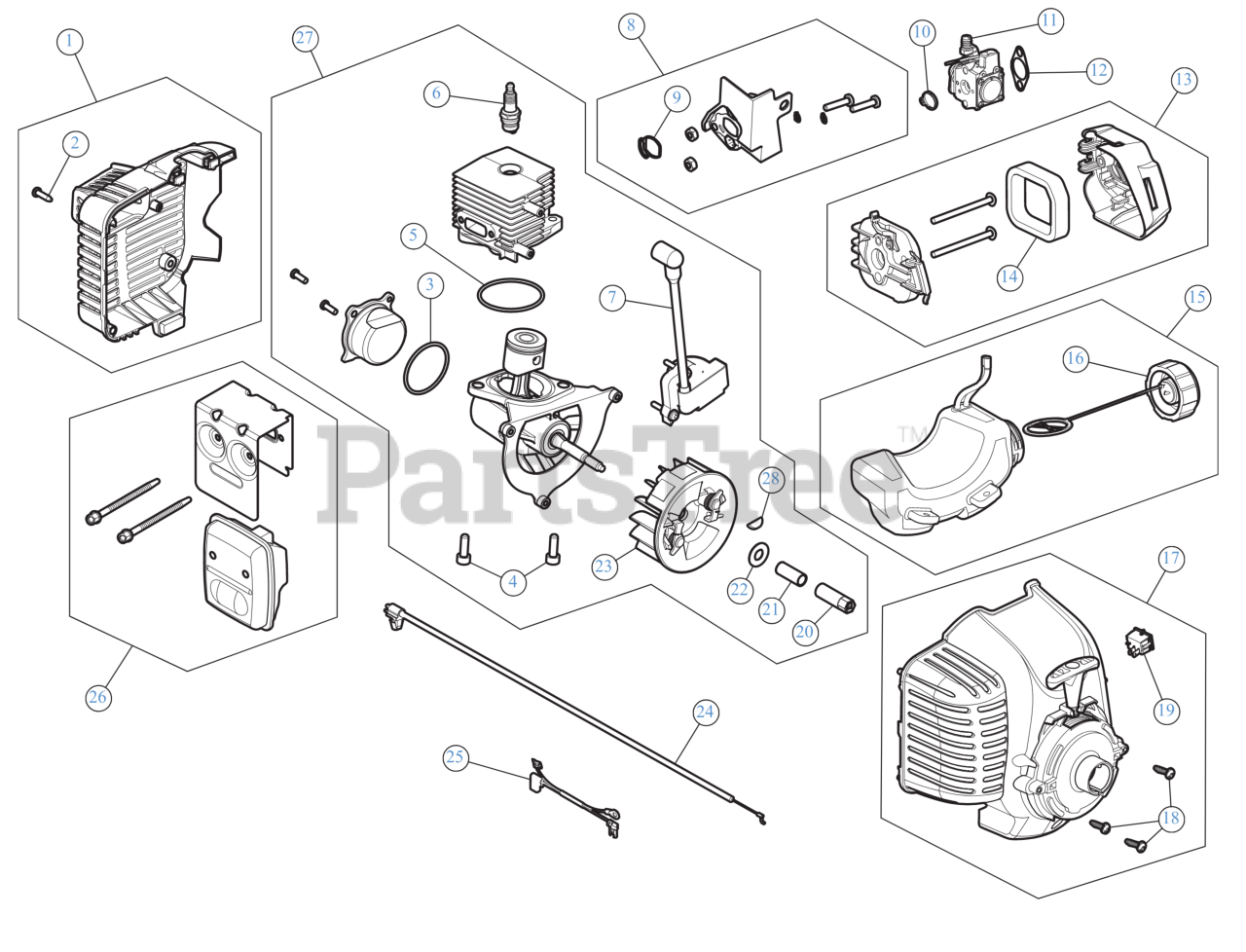

Trimmer - Engine Parts Diagram

  • Title
1

MTD 753-09084

HOUSING ASSEMBLY RR

Note: (Incl. 2)

$4.99

$

In Stock, Qty 5

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 753-09086

O-RING SEAL CRANKCASE

$2.99

$

In Stock, Qty 20+

0

4

MTD 710-06241

SCREW 5/16-18x3/4 T40

$2.99

$

Usually ships in 3-6 days

0

5

MTD 753-09085

O-RING SEAL CYLINDER

$2.99

$

In Stock, only 4 left!

0

6

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

7

MTD 753-09104

MODULE ASSEMBLY

$15.99

$

In Stock, Qty 8

0

8

MTD 753-09105

INTAKE ASSEMBLY

Note: (Incl. 9)

$4.99

$

In Stock, Qty 20+

0

9

MTD 721-04973

INSL/CYL SEAL

$2.99

$

In Stock, Qty 11

0

10

MTD 721-04972

CARBURETOR SEAL

$1.49

$

In Stock, Qty 20+

0

11

MTD 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

12

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

13

MTD 753-09344

AIR CLEANER

Note: (Incl. 14)

$10.99

$

In Stock, only 1 left!

0

14

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

15

MTD 753-08751

FUEL TANK ASSEMBLY

Note: (Incl. 16)

$16.99

$

In Stock, only 1 left!

0

16

MTD 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 10

0

17

MTD 753-09346

STARTER HOUSING

Note: (Incl. 18 & 19)

$19.99

$

In Stock, Qty 6

0

18

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

20

MTD 711-07481-1

POWER SHAFT ADAPTER

$2.99

$

In Stock, Qty 6

0

21

MTD 753-09087

SPACER CRANKSHAFT

$2.99

$

Usually ships in 3-6 days

0

22

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 20+

0

23

MTD 753-09125

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, Qty 12

0

24

MTD 746-05451

THROTTLE CABLE

$3.99

$

In Stock, only 1 left!

0

25

MTD 794-00184

SHORT WIRE LEAD

$2.49

$

Usually ships in 3-6 days

0

26

MTD 753-09144

MUFFLER ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

27

MTD 753-09145

SHORT BLOCK

Note: (Incl. Crankcase, Cylinder, Piston, 3 - 9, 20 -23 & 28)

$61.99

$

Usually ships in 3-6 days

0

28

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0
