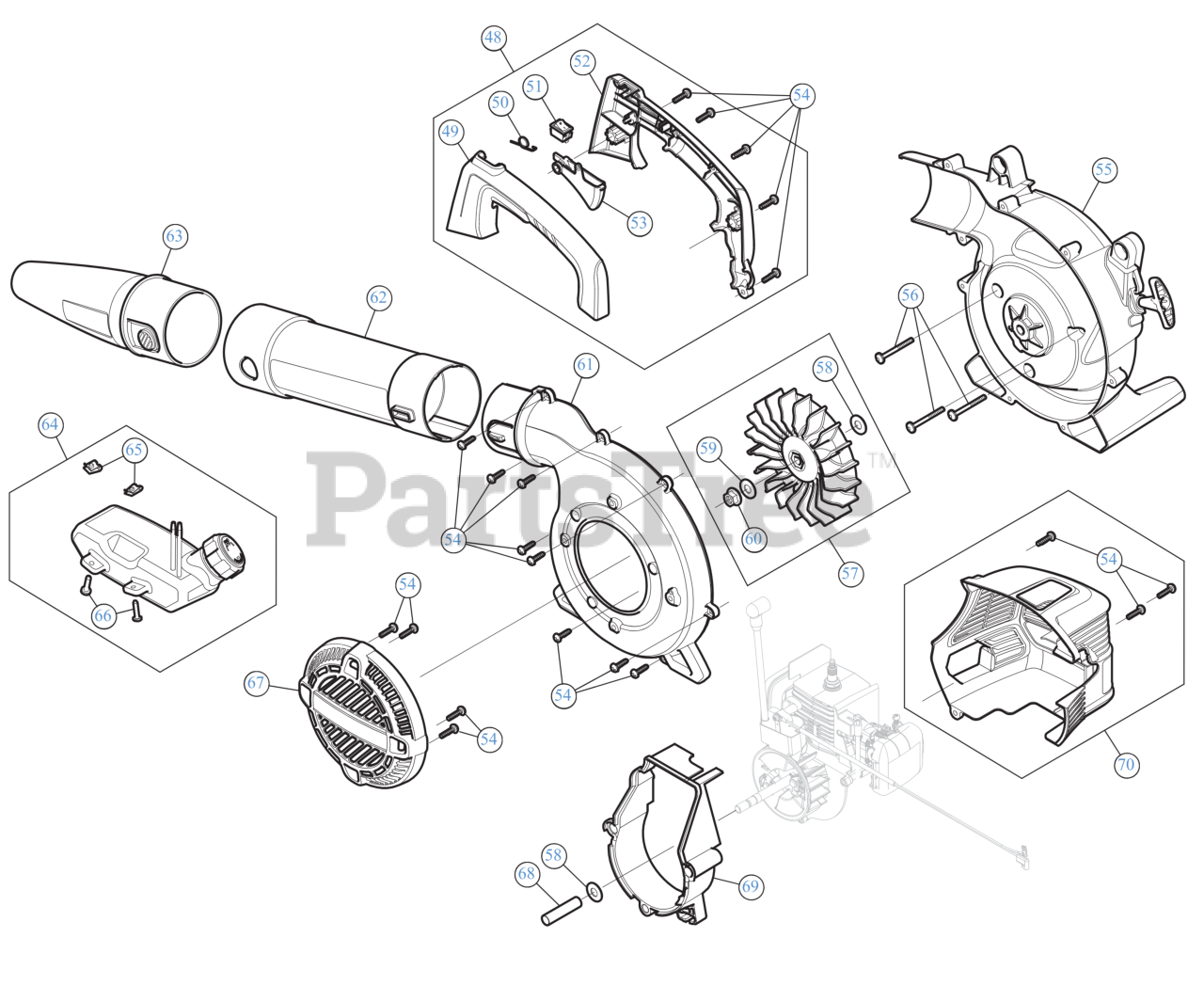

Y 25 BT (41AD25BT900) - Yard Machines String Trimmer Blower - General Assembly Parts Diagram

String Trimmer

Blower - General Assembly Parts Diagram

  • Title

48

MTD 753-09484

HANDLE

Note: (Incl. 49 - 54)

$12.99

$

Usually ships in 3-6 days

0

49

MTD 731-11027-48

HANDLE (LH)

$6.49

$

Usually ships in 3-6 days

0

50

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

51

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

52

MTD 731-10776A-48

HANDLE (RH)

$6.49

$

Usually ships in 3-6 days

0

53

MTD 731-09987-1

THROTTLE TRIGGER

$3.49

$

Usually ships in 3-6 days

0

54

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

55

MTD 753-08676

IMPELLER HOUSING ASSEMBLY

$34.99

$

Usually ships in 3-6 days

0

56

MTD 710-06341

SCREW 10/32

$3.49

$

In Stock, Qty 20+

0

57

MTD 753-08491

IMPELLER ASSEMBLY

Note: (Incl. 58 - 60)

$7.99

$

In Stock, Qty 20+

0

58

MTD 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

59

MTD 736-04110A

LOCK WASHER

$5.49

$

In Stock, only 1 left!

0

60

MTD 712-04137

NUT 3/8-24

$6.99

$

Usually ships in 3-6 days

0

61

MTD 753-09485

IMPELLER HOUSING

Note: (Incl. 54)

$9.99

$

Usually ships in 3-6 days

0

62

MTD 731-10598

TUBE UPPER

$7.49

$

Usually ships in 3-6 days

0

63

MTD 731-10604

NOZZLE

$5.49

$

In Stock, only 1 left!

0

64

MTD 753-08500

FUEL TANK ASSEMBLY

Note: (Incl. 65 & 66)

$21.99

$

In Stock, Qty 5

0

65

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

66

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

67

MTD 753-08494

INTAKE COVER

Note: (Incl. 54)

$4.99

$

In Stock, only 1 left!

0

68

MTD 750-06367

SPACER

$3.49

$

Usually ships in 3-6 days

0

69

MTD 753-08496

ENGINE ADAPTER

Note: (Incl. 56)

$7.49

$

Usually ships in 3-6 days

0

70

MTD 753-08510

ENGINE COVER

Note: (Incl. 54)

$22.99

$

Usually ships in 3-6 days

0
