Y 25 B (41ARY25B900) - Yard Machines Handheld Blower General Assembly Parts Diagram

Handheld Blower

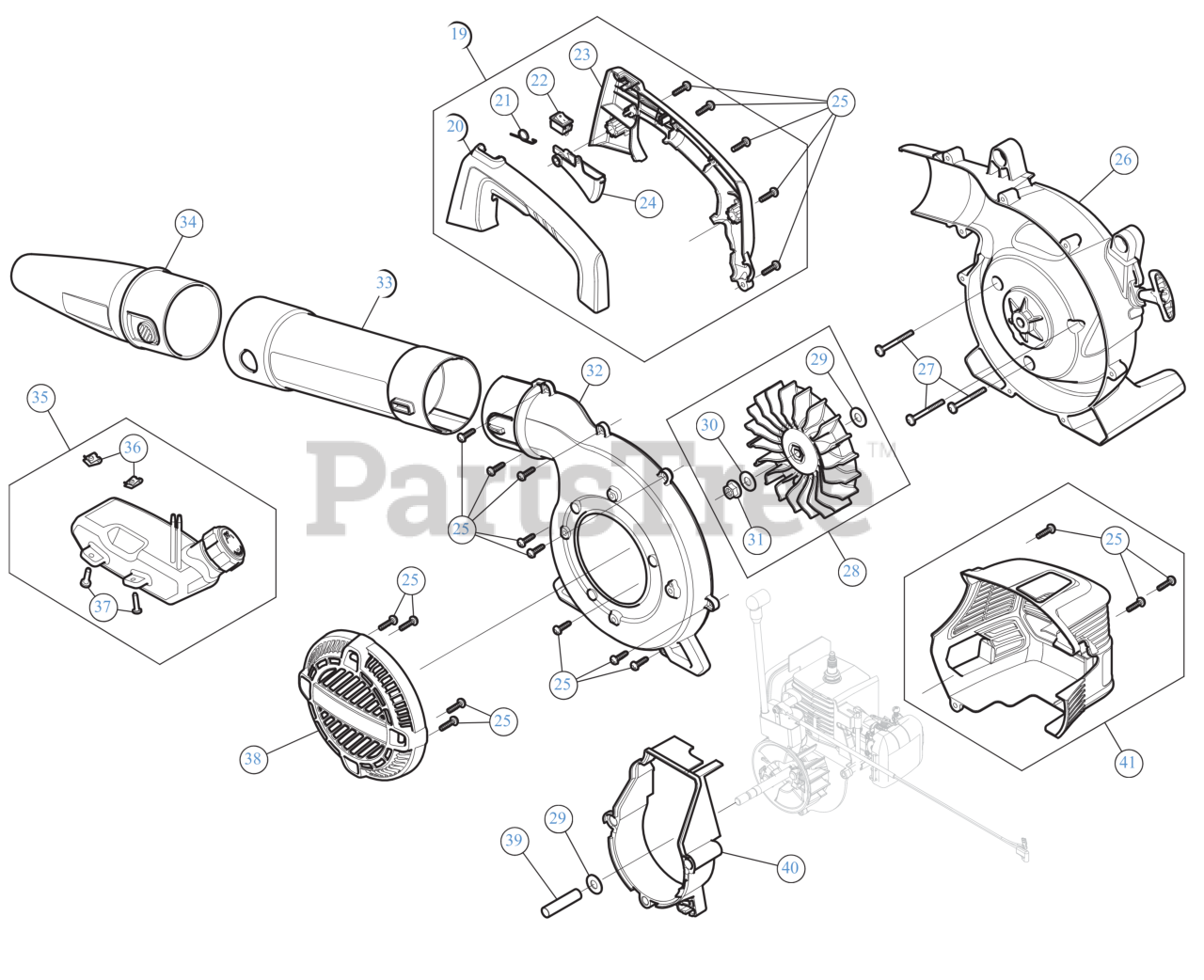

General Assembly Parts Diagram

  • Title

19

MTD 753-09484

HANDLE

Note: (Incl. 20 - 25)

$12.99

$

Usually ships in 3-6 days

0

20

MTD 731-11027-48

HANDLE (LH)

Note: (LH)

$6.49

$

Usually ships in 3-6 days

0

21

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 3 left!

0

22

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

23

MTD 731-10776A-48

HANDLE (RH)

Note: (RH)

$6.49

$

Usually ships in 3-6 days

0

24

MTD 731-09987-1

THROTTLE TRIGGER

$3.49

$

Usually ships in 3-6 days

0

25

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

26

MTD 753-08676

IMPELLER HOUSING ASSEMBLY

Note: (RH)

$34.99

$

Usually ships in 3-6 days

0

27

MTD 710-06341

SCREW 10/32

$3.49

$

In Stock, Qty 20+

0

28

MTD 753-08491

IMPELLER ASSEMBLY

Note: (Incl. 29 - 31)

$7.99

$

In Stock, Qty 20+

0

29

MTD 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

30

MTD 736-04110A

LOCK WASHER

$5.49

$

In Stock, only 1 left!

0

31

MTD 712-04137

NUT 3/8-24

$6.99

$

In Stock, only 1 left!

0

32

MTD 753-09485

IMPELLER HOUSING

Note: (LH) (Incl. 25)

$9.99

$

Usually ships in 3-6 days

0

33

MTD 731-10598

TUBE UPPER

$7.49

$

In Stock, only 1 left!

0

34

MTD 731-10604

NOZZLE

$5.49

$

In Stock, only 1 left!

0

35

MTD 753-08500

FUEL TANK ASSEMBLY

Note: (Incl. 36 & 37)

$21.99

$

In Stock, Qty 5

0

36

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 2 left!

0

37

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

38

MTD 753-08494

INTAKE COVER

Note: (Incl. 25)

$4.99

$

In Stock, only 1 left!

0

39

MTD 750-06367

SPACER

$3.49

$

Usually ships in 3-6 days

0

40

MTD 753-08496

ENGINE ADAPTER

Note: (Incl. 27)

$7.49

$

Usually ships in 3-6 days

0

41

MTD 753-08510

ENGINE COVER

Note: (Incl. 25)

$22.99

$

Usually ships in 3-6 days

0
