Y 25 B (41ARY25B900) - Yard Machines Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

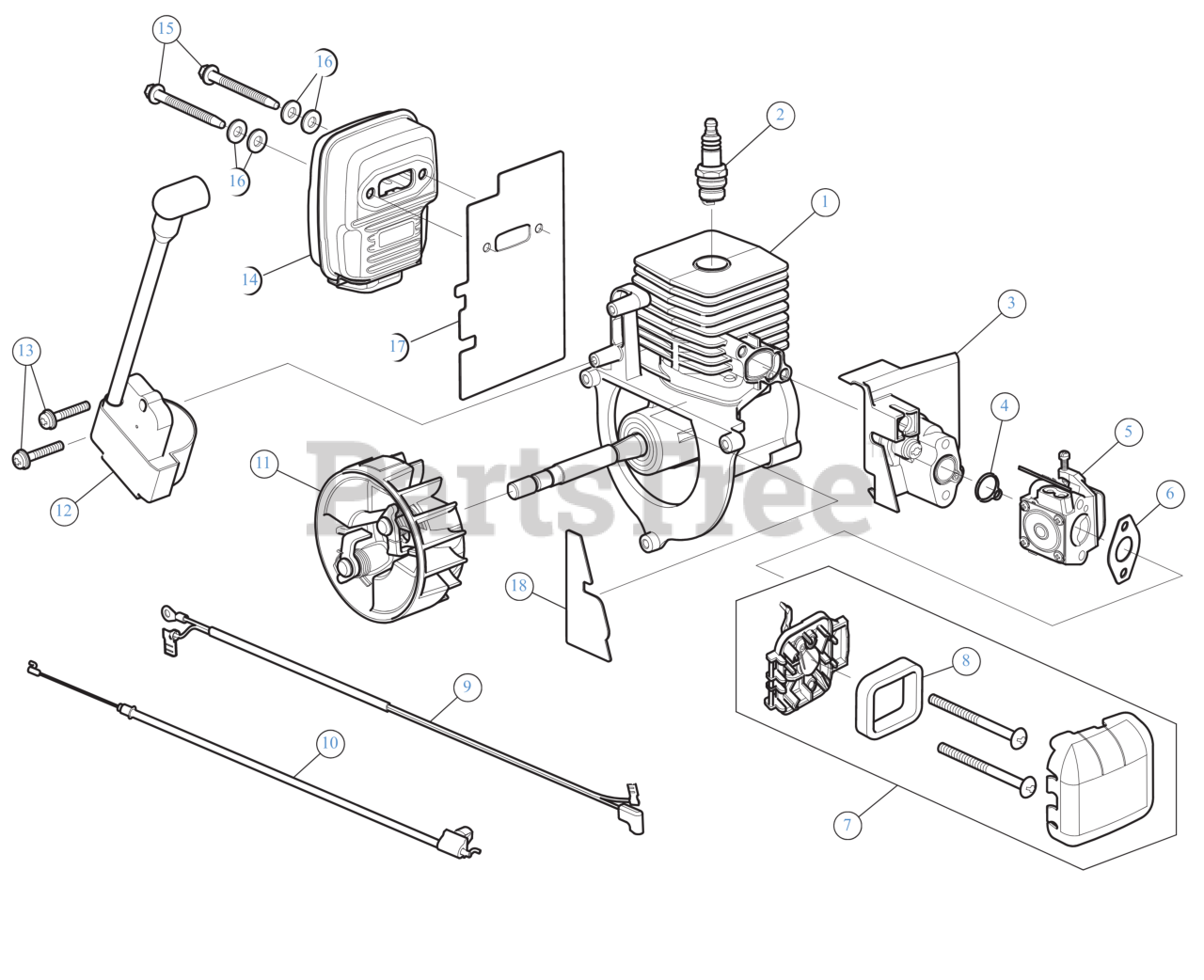

Engine Assembly Parts Diagram

  • Title

1

MTD 753-09204

SHORT BLOCK

$54.99

$

In Stock, only 1 left!

0

2

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

3

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 4)

$7.99

$

In Stock, only 1 left!

0

4

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

5

MTD 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

6

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-08498

AIR CLEANER ASSEMBLY

Note: (Incl. 8)

$8.99

$

In Stock, Qty 15

0

8

MTD 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

9

MTD 725-06313

WIRE LEAD

$3.49

$

In Stock, only 1 left!

0

10

MTD 746-05226

THROTTLE CABLE

$4.99

$

In Stock, only 1 left!

0

11

MTD 753-08490

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

12

MTD 753-08489

MODULE

Note: (Incl. 13)

$17.99

$

In Stock, only 1 left!

0

13

MTD 710-06301

SCREW 8-32X.750

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-08488

MUFFLER ASSEMBLY

Note: (Incl. 15 - 17)

$29.99

$

In Stock, only 1 left!

0

15

MTD 753-06294

MUFFLER SCREW

$2.99

$

Usually ships in 3-6 days

0

16

MTD 791-182568

WASH, FLAT .480X.1

$4.49

$

Usually ships in 3-6 days

0

17

MTD 721-04801

GASKET

$3.49

$

In Stock, only 1 left!

0

18

MTD 721-04824

SHORTBLOCK GASKET

$2.99

$

Usually ships in 3-6 days

0
