Y 25 (41AD251G900) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

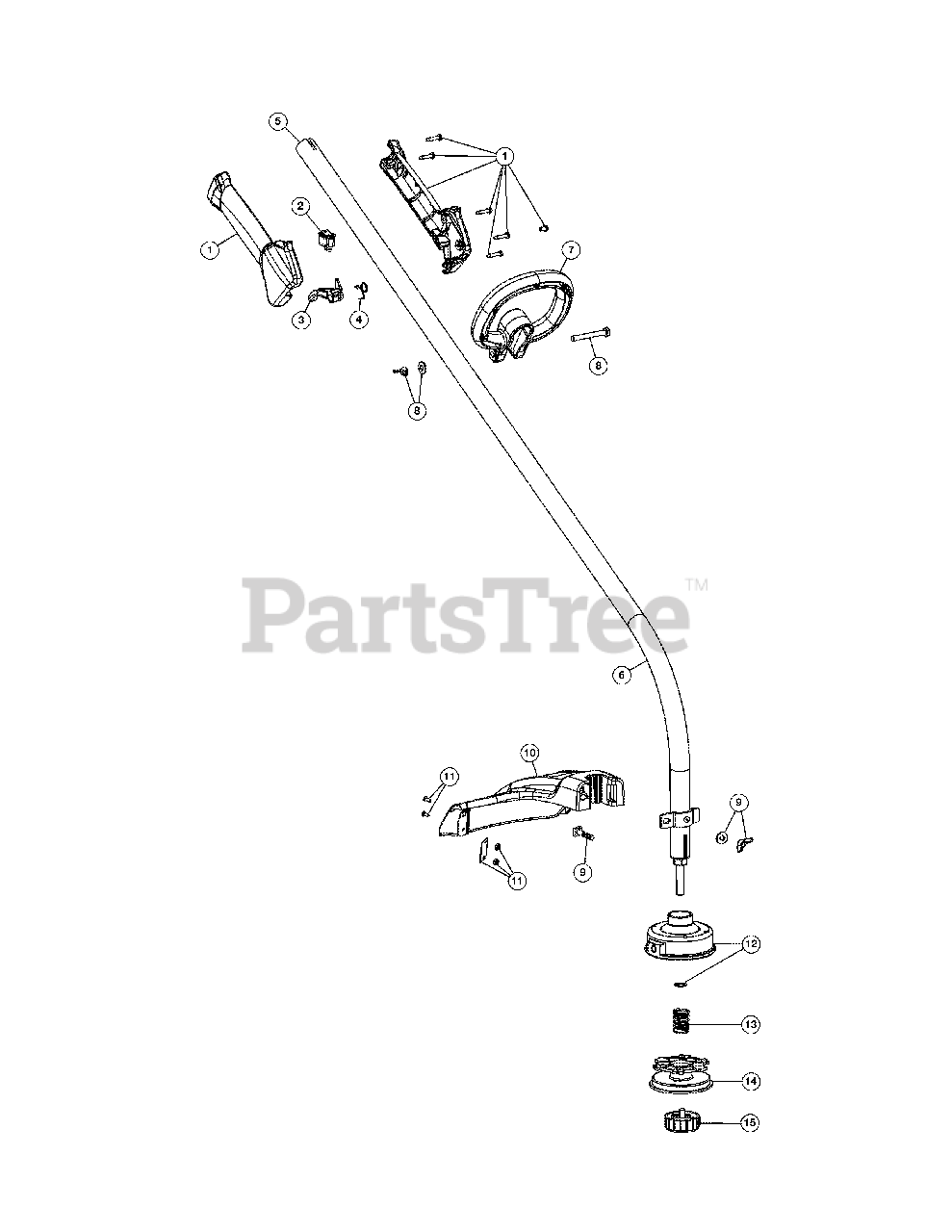

General Assembly Parts Diagram

  • Title

1

MTD 753-04829

Throttle Housing Assembly (includes 2-4)

$7.49

$

Usually ships in 3-6 days

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-06065

Flexible Drive Shaft

$13.99

$

In Stock, only 3 left!

0

6

MTD 753-05748

Drive Shaft Housing Assembly (includes 5)

$48.99

$

In Stock, only 4 left!

0

7

MTD 753-06198

D-Handle (includes 8)

$4.99

$

Usually ships in 3-6 days

0

8

MTD 753-06199

D-Handle Hardware Assembly

$2.49

$

Usually ships in 3-6 days

0

9

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

10

MTD 753-04283

Shield Assembly (includes 9 & 11)

$50.99

$

In Stock, only 1 left!

0

11

MTD 753-1191

Blade Assembly

$64.99

$

In Stock, only 1 left!

0

12

MTD 753-04284

Outer Spool w/Retainer

$28.99

$

In Stock, only 1 left!

0

13

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

14

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

15

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Reel & Line Assembly

Note: Not shown

$28.99

$

In Stock, only 2 left!

0
