Y 18H44 E - Electrolux/AYP Lawn Tractor (1995) HYDRO GEAR TRANSAXLE Parts Diagram

Lawn Tractor

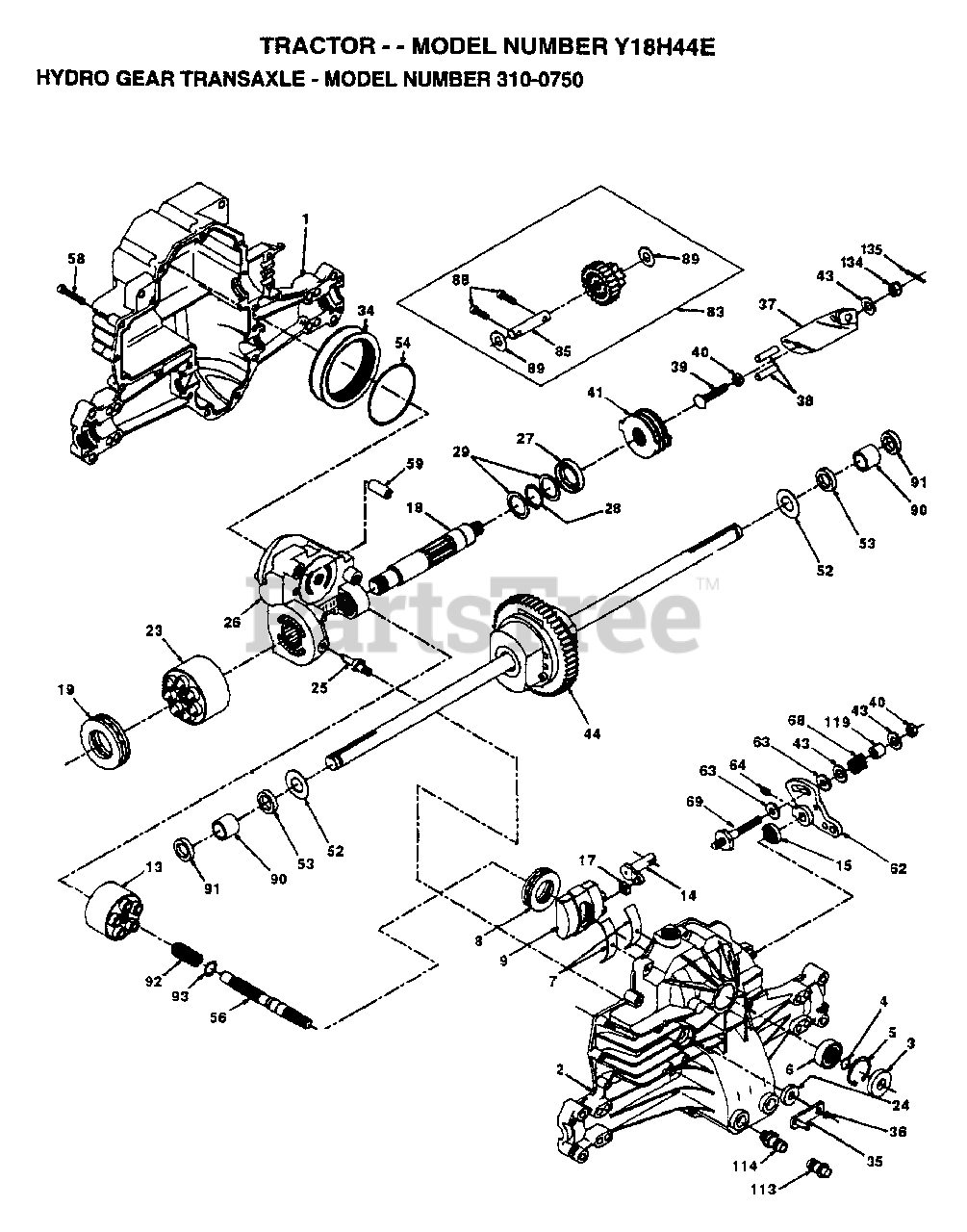

HYDRO GEAR TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 142930

HOUSING.L.50074RM
(Superseded to 532142930)

$

$

Not available

2

Electrolux/AYP 142931

HOUSING.UP.70125
(Superseded to 532142931)

$424.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 142932

SEAL.9008000-0128
(Superseded to 532142932)

$

$

Not available

4

Electrolux/AYP 142928

RING.RET.2003016.
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 142933

RING.RET.2003052.
(Superseded to 532142933)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 142934

BEARING.(50552)42X68X16
(Superseded to 122745X)

$96.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 142935

CRADLE- 2003023.
(Superseded to 532142935)

$30.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 142936

BEARING.2003044.
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 142937

SWASHPLT.2003087.
(Superseded to 532142937)

$160.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 142938

BLOCK.CLYN.70079.
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 142939

ARM.TRUN.2003005.
(Superseded to 532142939)

$218.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 142940

SEAL.9008000-0126
(Superseded to 532142940)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 142941

GUIDE.2000015.
(Superseded to 532142941)

$7.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 142942

SHAFT.MOTOR.50115
(Superseded to 532142942)

$188.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 142943

BEARING.THS.50019
(Superseded to 532142943)

$157.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 142944

BLOCK.CYLIN.70082
(Superseded to 532142944)

$

$

Not available

24

Electrolux/AYP 142945

SEAL.LIP.45074
(Superseded to 532142945)

$

$

Not available

25

Electrolux/AYP 142946

ACTUATOR.2003555
(Superseded to 532142946)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 142947

KIT.CENTER.70133
(Superseded to 532142947)

$283.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 142948

SEAL.LIP.45075
(Superseded to 532142948)

$

$

Not available

28

Electrolux/AYP 142949

RING RETAIN 50007
(Superseded to 532142949)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 142950

WASHER.44872
(Superseded to 532142950)

$3.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 142951

ELEMENT.OIL.44964
(Superseded to 532169893)

$125.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 142952

ARM.BYPASS.50270
(Superseded to 532142952)

$21.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 142953

RING.RETAIN.44870
(Superseded to 532142953)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 142954

ARM.ACTUAT.23710
(Superseded to 583156301)

$68.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 142955

PIN.ACTUAT.44891
(Superseded to 532142955)

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 142956

SUB= 149705
(Superseded to 582974501)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 142957

NUT.LOCK.HX.50108
(Superseded to 532142957)

$

$

Not available

41

Electrolux/AYP 142958

KIT.BRAKE.70135
(Superseded to 532142958)

$103.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 142884

WASHER HYD 44130
(Superseded to 532142884)

$

$

Not available

44

Electrolux/AYP 142959

DIFFERENTIA.70130
(Superseded to 532142959)

$311.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 142960

WASHER.HYD.50152
(Superseded to 532142960)

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 142961

SEAL.HYDRO.45076
(Superseded to 532142961)

$10.99

$

In Stock, only 2 left!

0

54

Electrolux/AYP 142962

O RING.HYD.45077
(Superseded to 532142962)

$

$

Not available

56

Electrolux/AYP 142963

SHAFT.INPUT.50005
(Superseded to 532142963)

$157.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 142964

BOLT.1/4-20.44876
(Superseded to 532142964)

$6.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 142965

PIN.HYDRO.50002
(Superseded to 532142965)

$10.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 142966

ARM.CONTROL.50254
(Superseded to 532142966)

$40.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 142967

PUCK.DAMPER.50281
(Superseded to 532142967)

$7.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 142920

SCREW.SET.50018.
(Superseded to 532142920)

$9.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 142969

SPRING.HYD.50277
(Superseded to 532142969)

$

$

Not available

69

Electrolux/AYP 144610

STUD.5/16-24.DANA
(Superseded to 532144610)

$9.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 142971

JACKSHAFT/PINION GEAR.70132
(Superseded to 532142971)

$188.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 142973

SCREW.CAP.50154.
(Superseded to 532142973)

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 142973

SCREW.CAP.50154.
(Superseded to 532142973)

$7.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 142974

WASHER.HYD.50132
(Superseded to 532142974)

$6.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 142975

BEARING.SLV.50118
(Superseded to 532142975)

$27.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 142976

SEAL.WIPER.50941
(Superseded to 532169054)

$20.99

$

In Stock, only 2 left!

0

92

Electrolux/AYP 142977

SPRING.2003014.
(Superseded to 532142977)

$6.49

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 142978

WASHER.2003017
(Superseded to 532142978)

$7.49

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 142917

CAP.VENT.70109
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 142918

O-RING.ASM.70110
(Superseded to 532142918)

$

$

Not available

119

Electrolux/AYP 142980

SPACER.HYD.50278
(Superseded to 532142980)

$4.99

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 144607

NUT.CAS.HYD.44142
(Superseded to 532144607)

$6.49

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 144608

PIN.COT.HYD.44101
(Superseded to 532142886)

$

$

Not available
