Y 18H44 C - Electrolux/AYP Lawn Tractor (1993) 18HP 44" TRANSAXLE AND PUMP ASSEMBLY Parts Diagram

Lawn Tractor

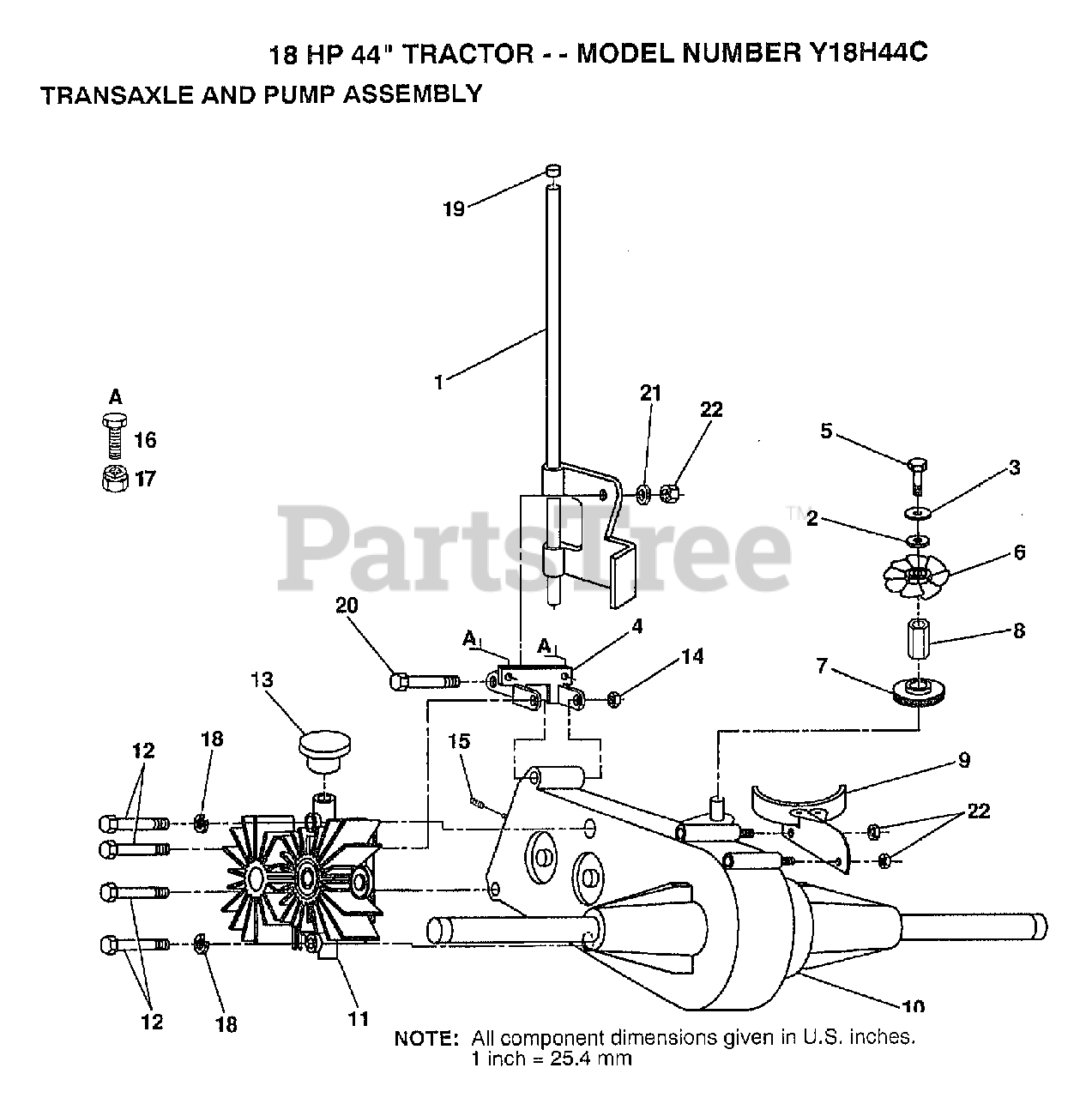

18HP 44" TRANSAXLE AND PUMP ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 123634X

CONTROL ASSY

$

$

Not available

2

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 121188X

BRACKET
(Superseded to 532121188)

$

$

Not available

5

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

6

Electrolux/AYP 121186X

FAN
(Superseded to 532121186)

$

$

Not available

7

Electrolux/AYP 121180X

PULLEY TRANSAXLE
(Superseded to 532121180)

$

$

Not available

8

Electrolux/AYP 121211X

STANDOFF
(Superseded to 532121211)

$

$

Not available

9

Electrolux/AYP 121182X

GUARD ASSY
(Superseded to 532121182)

$

$

Not available

10

Electrolux/AYP 121431X

TRANSAXLE.AGRIFAB
(Superseded to 532121431)

$

$

Not available

11

Electrolux/AYP 121430X

PUMP.BDU-10S-114
(Superseded to 532121430)

$

$

Not available

12

Electrolux/AYP 74760572

BOLT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 121323X

PUMP.2003081.
(Superseded to 532121323)

$

$

Not available

14

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

17

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 120529X

WASHER T
(Superseded to 532120529)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0
