Y 18H44 C - Electrolux/AYP Lawn Tractor (1993) 18HP 44" TRACTOR MOWER DECK Parts Diagram

Lawn Tractor

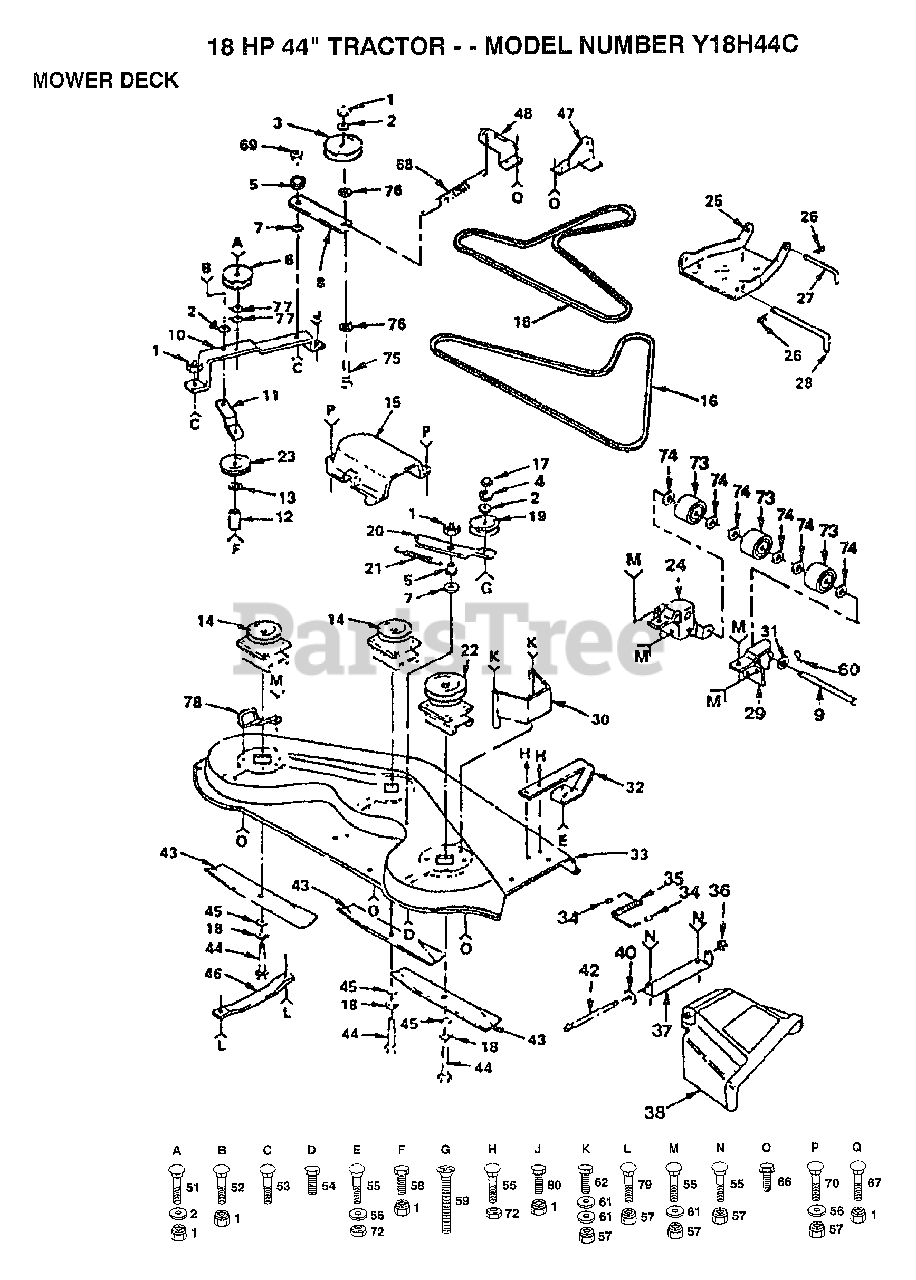

18HP 44" TRACTOR MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

2

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 677A451

IDLER-INSIDE T
(Superseded to 532124858)

$

$

Not available

7

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 121425X

ARM IDLER
(Superseded to 532121425)

$

$

Not available

9

Electrolux/AYP 109776X

PIVOT PIN T
(Superseded to 532109776)

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 106523X

"SUPPORT YT, BAR"
(Superseded to 532106523)

$

$

Not available

11

Electrolux/AYP 106522X

BRACE-IDLER YT
(Superseded to 532106522)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

13

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 136818

SUB= 136819

$

$

Not available

15

Electrolux/AYP 106214X

GUARD YT
(Superseded to 532106214)

$

$

Not available

16

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$43.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

19

Electrolux/AYP 102932X

IDLER.FLAT.GTV
(Superseded to 532102932)

$30.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 106526X

ARM-IDLER YT
(Superseded to 532106526)

$18.99

$

Usually ships in 3-10 days

0

21

$

$

Not available

22

Electrolux/AYP 121704X

SUB= 121705X

$

$

Not available

23

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$39.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 109599X

BRACKET LH YTH
(Superseded to 532109599)

$

$

Not available

25

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

26

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

28

Electrolux/AYP 109835X

HINGE PIN T
(Superseded to 532109835)

$

$

Not available

29

Electrolux/AYP 109600X

BRACKET RH YTH
(Superseded to 532109600)

$

$

Not available

30

Electrolux/AYP 108119X

GUARD BELT HYT
(Superseded to 532108119)

$

$

Not available

31

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

32

Electrolux/AYP 136321

RUNNER.RH
(Superseded to 532136321)

$

$

Not available

33

$

$

Not available

34

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 137607

BRKT DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$30.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 106635X

SUB= 25034
(Superseded to 532025034)

$

$

Not available

44

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

45

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 123807X

BRKT SUSP REAR RH
(Superseded to 532123807)

$

$

Not available

48

Electrolux/AYP 123808X

BRKT SUSP REAR LH

$

$

Not available

51

Electrolux/AYP 72140614

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

52

Murray 72140608

SUB= 72110608

$

$

Not available

53

Electrolux/AYP 72140612

BOLT
(Superseded to 872140612)

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

57

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

59

Electrolux/AYP 74110632

SCREW YT
(Superseded to 874110632)

$

$

Not available

60

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 74760580

BOLT
(Superseded to 874760580)

$2.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

68

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

69

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

72

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

73

Electrolux/AYP 109729X

ROLLER T
(Superseded to 532109729)

$

$

Not available

74

Electrolux/AYP 19151610

WASHER T
(Superseded to 819151610)

$

$

Not available

75

Electrolux/AYP 72140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

76

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

77

Electrolux/AYP 19131410

WASHER
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 121352X

BELT RETIANER
(Superseded to 532121352)

$

$

Not available

79

Electrolux/AYP 72110505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 121826X

SUB= 532131508

$

$

Not available
