Y 18H44 C - Electrolux/AYP Lawn Tractor (1993) 18HP 44" TRACTOR ENGINE Parts Diagram

Lawn Tractor

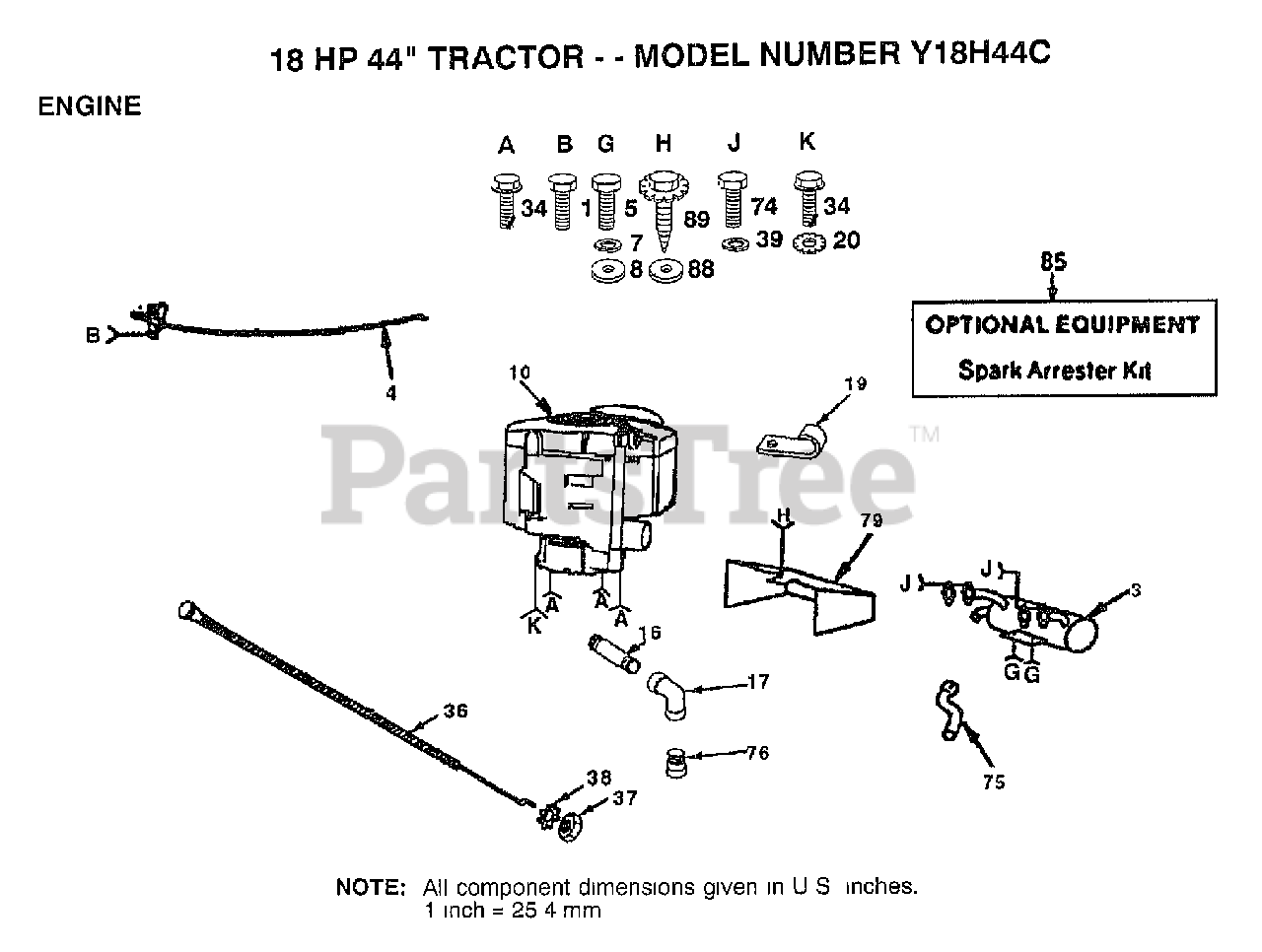

18HP 44" TRACTOR ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

$

$

Not available

4

Electrolux/AYP 133024

"CONTROL,THROTTLE"

$11.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

10

CHECK WITH SUPPLIER

$

$

Not available

16

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 122758X

MUFFLER CLAMP
(Superseded to 583667501)

$11.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

36

Electrolux/AYP 132782

SUB= 132781
(Superseded to 532132782)

$

$

Not available

37

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 74570512

SCREW
(Superseded to 874570512)

$3.99

$

In Stock, only 4 left!

0

75

Electrolux/AYP 128144

SUB= 532128144

$

$

Not available

76

CHECK WITH SUPPLIER

$

$

Not available

79

Electrolux/AYP 125891X

SUB= 532125891

$

$

Not available

85

Electrolux/AYP 132920

SPARK ARREST KIT
(Superseded to 532132920)

$

$

Not available

$

$

Not available

89

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available
