Y 18H44 C - Electrolux/AYP Lawn Tractor (1993) 18HP 44" TRACTOR DRIVE Parts Diagram

Lawn Tractor

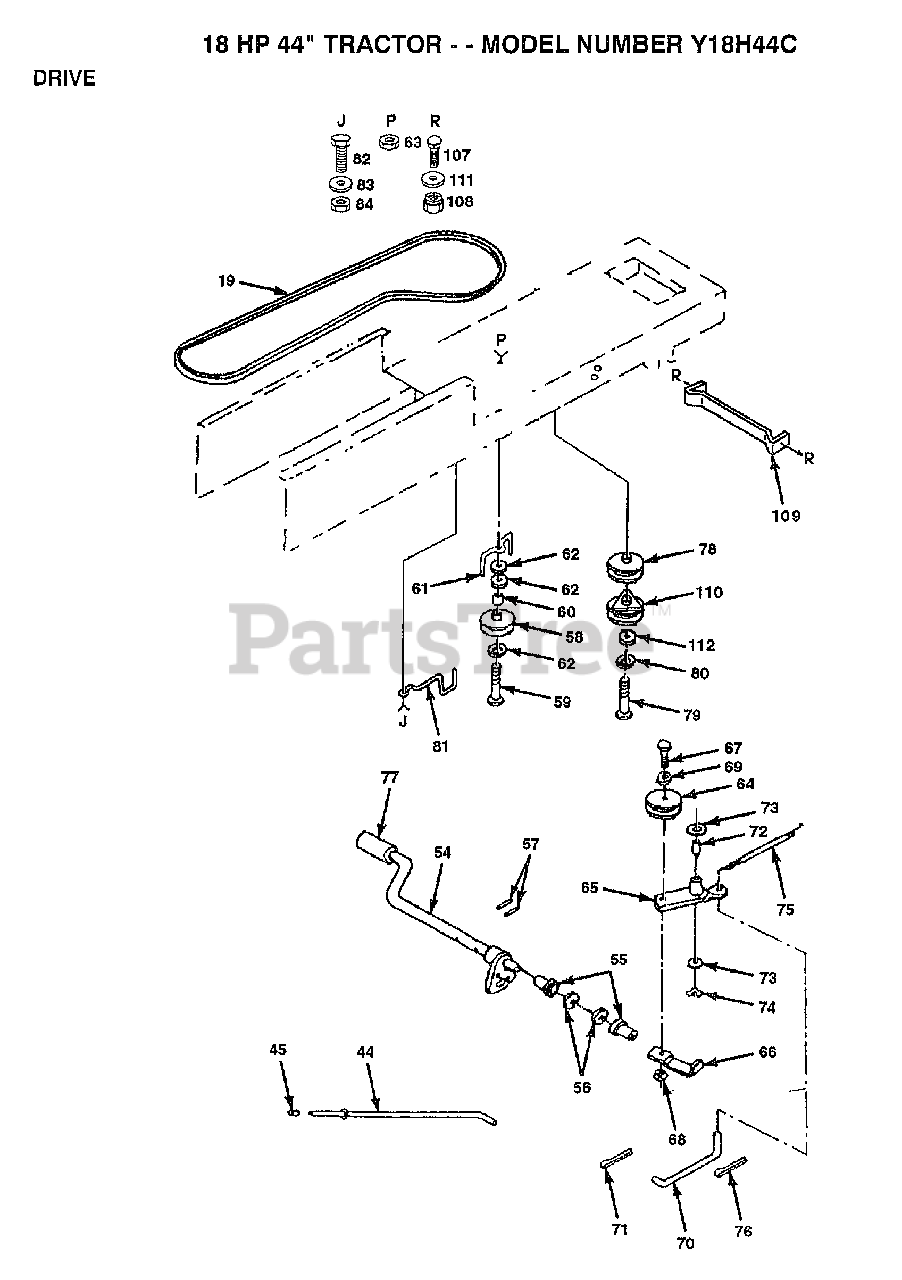

18HP 44" TRACTOR DRIVE Parts Diagram

  • Title
19

Electrolux/AYP 123461X

SUB= TH4H810
(Superseded to 532123461)

$

$

Not available

44

Electrolux/AYP 133261

BRAKE PARK ROD
(Superseded to 532133261)

$

$

Not available

45

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 122424X

SUB= 149001
(Superseded to 532122424)

$

$

Not available

55

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

56

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

57

Murray 1572H

SUB= 2882J

$

$

Not available

58

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

63

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

64

Murray 127783

SUB= 139245

$

$

Not available

65

Electrolux/AYP 123789X

ARM IDLER
(Superseded to 532123789)

$

$

Not available

66

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

74

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

75

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

In Stock, only 4 left!

0

76

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

77

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 136905

PULLEY ENGINE
(Superseded to 532109841)

$

$

Not available

79

$

$

Not available

80

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 129921

KEEPER.BELT.ENG.L
(Superseded to 532129921)

$

$

Not available

82

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

84

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

107

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

108

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

109

Electrolux/AYP 137141

BRACKET.ASM.MTG
(Superseded to 532137141)

$

$

Not available

110

Electrolux/AYP 137140

SUB= 142600
(Superseded to 532142600)

$

$

Not available

111

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0
