Y 18H44 B - Electrolux/AYP Lawn Tractor (1992) AGRI-FAB TRANSAXLE Parts Diagram

Lawn Tractor

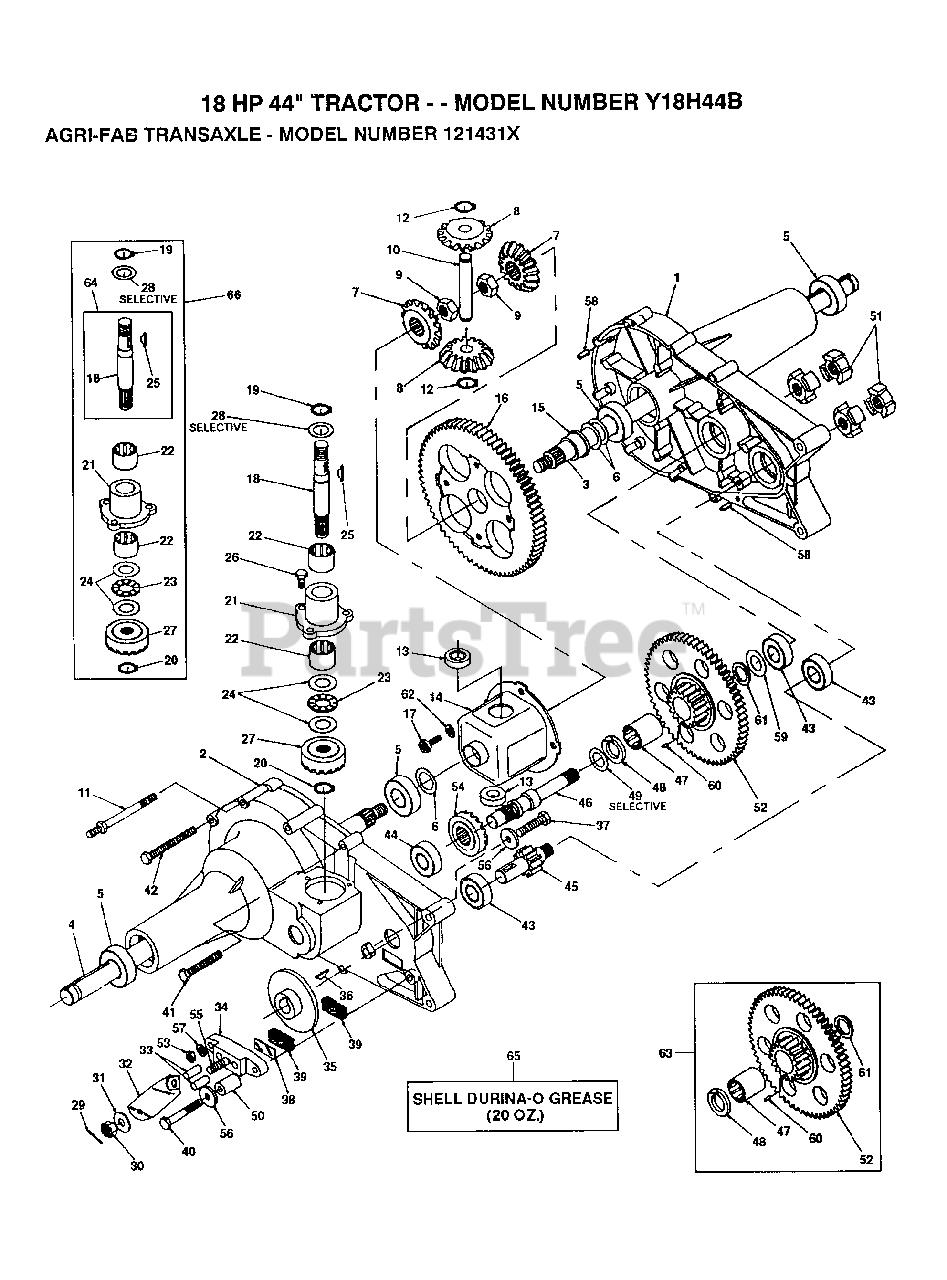

AGRI-FAB TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 122614X

HSG HALF LH-44077
(Superseded to 532122614)

$

$

Not available

2

Electrolux/AYP 122615X

HSG HALF RH-44076
(Superseded to 532122615)

$

$

Not available

3

Electrolux/AYP 122616X

AXLE LH -44273
(Superseded to 532122616)

$

$

Not available

4

Electrolux/AYP 122620X

AXLE RH-44272
(Superseded to 532122620)

$

$

Not available

5

Electrolux/AYP 122621X

BEARING.44121.AGR
(Superseded to 532122621)

$

$

Not available

6

Electrolux/AYP 122622X

WASHER -44008
(Superseded to 532122622)

$

$

Not available

7

Electrolux/AYP 122623X

GEAR MITER -44096
(Superseded to 532122623)

$

$

Not available

8

Electrolux/AYP 122624X

GEAR MITER -44097
(Superseded to 532122624)

$

$

Not available

9

Electrolux/AYP 122625X

NUT -44133
(Superseded to 532122625)

$

$

Not available

10

Electrolux/AYP 122626X

SHAFT CROSS
(Superseded to 532142893)

$

$

Not available

11

Electrolux/AYP 122688X

SCREW-STUD -44271
(Superseded to 532122688)

$

$

Not available

12

Electrolux/AYP 122629X

SNAP RING -44146
(Superseded to 532122629)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 122631X

"THRUST, BEARING -44128"
(Superseded to 532122631)

$

$

Not available

14

Electrolux/AYP 122633X

HOUSING.ASM.DIFF.-62590
(Superseded to 532122633)

$182.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 122634X

"FLANGE, BEARING-44129"
(Superseded to 532122634)

$

$

Not available

16

Electrolux/AYP 122640X

GEAR
(Superseded to 532122640)

$

$

Not available

17

Electrolux/AYP 122641X

BOLT -44126
(Superseded to 532122641)

$

$

Not available

18

Electrolux/AYP 122642X

SHAFT INPUT-44270
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 122643X

SNAP RING -44145
(Superseded to 583041601)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 122644X

RET RING (44144)
(Superseded to 532122644)

$

$

Not available

21

Electrolux/AYP 122645X

SUB= 155892
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 122646X

"NEEDLE, BEARING 44099"
(Superseded to 532122646)

$

$

Not available

23

Electrolux/AYP 122647X

BEARING.NEE.44139
(Superseded to 532122647)

$

$

Not available

24

Electrolux/AYP 122648X

WASHER-44109
(Superseded to 532122648)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 122649X

KEY.44136.HYDRO
(Superseded to 532122649)

$

$

Not available

26

Electrolux/AYP 122650X

SCREW
(Superseded to 532122650)

$

$

Not available

27

Electrolux/AYP 122651X

SUB= 155892
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 123061X

WASHER -44371
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 122678X

NLA
(Superseded to 532122678)

$

$

Not available

Electrolux/AYP 122654X

WASHER-44151
(Superseded to 532122654)

$

$

Not available

29

Electrolux/AYP 122656X

PIN COTTER -44101
(Superseded to 144608)

$

$

Not available

30

Electrolux/AYP 122653X

WASHER -44150
(Superseded to 532122653)

$

$

Not available

31

Electrolux/AYP 122659X

WASHER FLAT -44130
(Superseded to 142884)

$

$

Not available

32

Electrolux/AYP 122660X

ARM BRAKE 23710
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 122662X

PIN BRAKE ACTUATO -44127
(Superseded to 532142887)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 122663X

BRAKE YOKE
(Superseded to 532122663)

$

$

Not available

35

Electrolux/AYP 122664X

DISC BRAKE -(44090)
(Superseded to 532142890)

$37.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 123065X

KEY -44143
(Superseded to 532123065)

$

$

Not available

37

Electrolux/AYP 122666X

SCREW -44277
(Superseded to 532122666)

$

$

Not available

38

Electrolux/AYP 122667X

PLATE PUCK -44134
(Superseded to 532122667)

$

$

Not available

39

$

$

Not available

40

Electrolux/AYP 123066X

SCREW -44300
(Superseded to 532123066)

$

$

Not available

41

Electrolux/AYP 122670X

SCREW -44123
(Superseded to 532122670)

$

$

Not available

42

Electrolux/AYP 122671X

SCREW -44124
(Superseded to 532122671)

$

$

Not available

43

Electrolux/AYP 126982X

SUB= 122672X

$

$

Not available

44

Electrolux/AYP 122673X

"BALL, BEARING -44232"
(Superseded to 532122673)

$

$

Not available

45

Electrolux/AYP 122674X

SHAFT PINION 44083
(Superseded to 532122674)

$

$

Not available

46

Electrolux/AYP 122675X

SHAFT DRIVE-44080
(Superseded to 532122675)

$

$

Not available

47

Electrolux/AYP 123059X

NEEDLE BEARING -44342
(Superseded to 532123059)

$

$

Not available

48

Electrolux/AYP 123060X

THRUST.BRONZE -44343
(Superseded to 532123060)

$

$

Not available

49

Electrolux/AYP 123061X

WASHER -44371
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 122654X

WASHER-44151
(Superseded to 532122654)

$

$

Not available

50

Electrolux/AYP 122689X

SPACER -23711
(Superseded to 422988)

$

$

Not available

51

Electrolux/AYP 121839X

COUPLING- 44084
(Superseded to 532121839)

$18.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 126975X

GEAR.60/17.44523
(Superseded to 532126975)

$

$

Not available

53

Electrolux/AYP 122682X

NUT -43178
(Superseded to 532122682)

$

$

Not available

54

Electrolux/AYP 122683X

PINION-DR.44079
(Superseded to 532122683)

$

$

Not available

55

Electrolux/AYP 122684X

BOLT SQ HD
(Superseded to 532122684)

$

$

Not available

56

Electrolux/AYP 122685X

WASHER -44278
(Superseded to 532122685)

$

$

Not available

57

Electrolux/AYP 122686X

WASHER -44137
(Superseded to 126977X)

$

$

Not available

58

Electrolux/AYP 122687X

PIN ROLL-44269
(Superseded to 532122687)

$

$

Not available

59

Electrolux/AYP 122652X

WASHER -44125
(Superseded to 532122652)

$

$

Not available

60

Electrolux/AYP 123062X

DOWEL PIN -44346
(Superseded to 532123062)

$

$

Not available

61

Electrolux/AYP 123063X

SEAL GREASE -44394
(Superseded to 532123063)

$

$

Not available

62

Electrolux/AYP 126977X

WASHER.43177.AGRI
(Superseded to 532126977)

$

$

Not available

63

Electrolux/AYP 126980X

ASS'Y GEAR REDUCT
(Superseded to 532126980)

$

$

Not available

64

Electrolux/AYP 126981X

SUB= 122642X

$

$

Not available

65

Electrolux/AYP 126976X

GREASE.50416.10OZ
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 137195

"KIT, SHAFT 62636"
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 121431X

TRANSAXLE.AGRIFAB
(Superseded to 532121431)

$

$

Not available
