Y 1844 E - Electrolux/AYP Lawn Tractor (1994) 18HP 44" TRACTOR/ENGINE Parts Diagram

Lawn Tractor

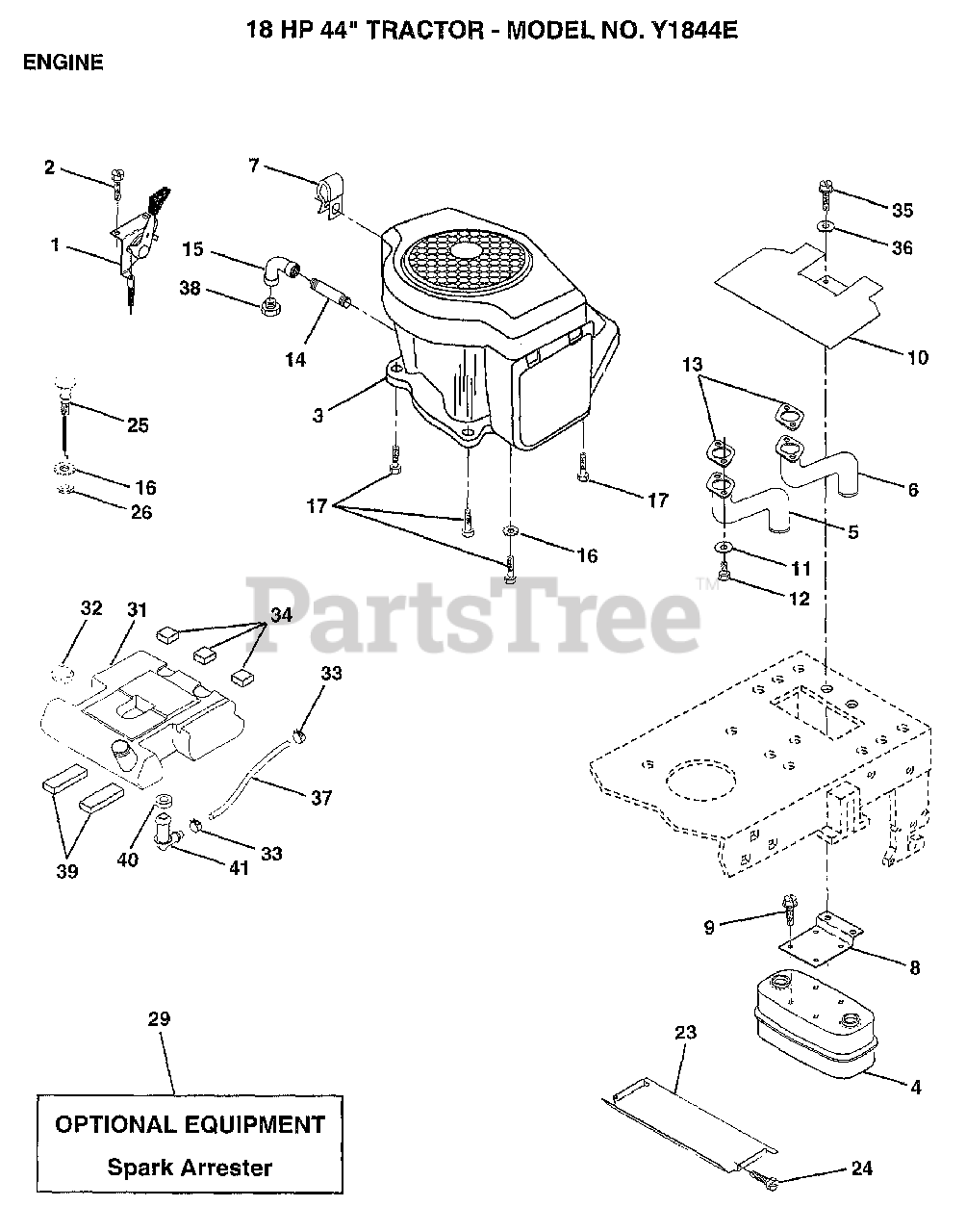

18HP 44" TRACTOR/ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 137214

CONTROL.THROTTL
(Superseded to 532143443)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

CHECK WITH SUPPLIER

$

$

Not available

4

Electrolux/AYP 137978

SUB= 149723

$

$

Not available

5

Electrolux/AYP 136215

"TUBE,MANIFOLD LH"
(Superseded to 532136215)

$

$

Not available

6

Electrolux/AYP 136216

"TUBE,MANIFOLD RH"
(Superseded to 532136216)

$

$

Not available

7

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

8

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

9

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 143600

SHIELD HEAT LT
(Superseded to 532145552)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 74570512

SCREW
(Superseded to 874570512)

$3.99

$

In Stock, only 4 left!

0

13

CHECK WITH SUPPLIER

$

$

Not available

14

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 132782

SUB= 132781
(Superseded to 532132782)

$

$

Not available

26

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 141069

SUB= 151346
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

39

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0
