Y 1844 D - Electrolux/AYP Lawn Tractor (1994) 18HP 44" TRACTOR-MOWER DECK Parts Diagram

Lawn Tractor

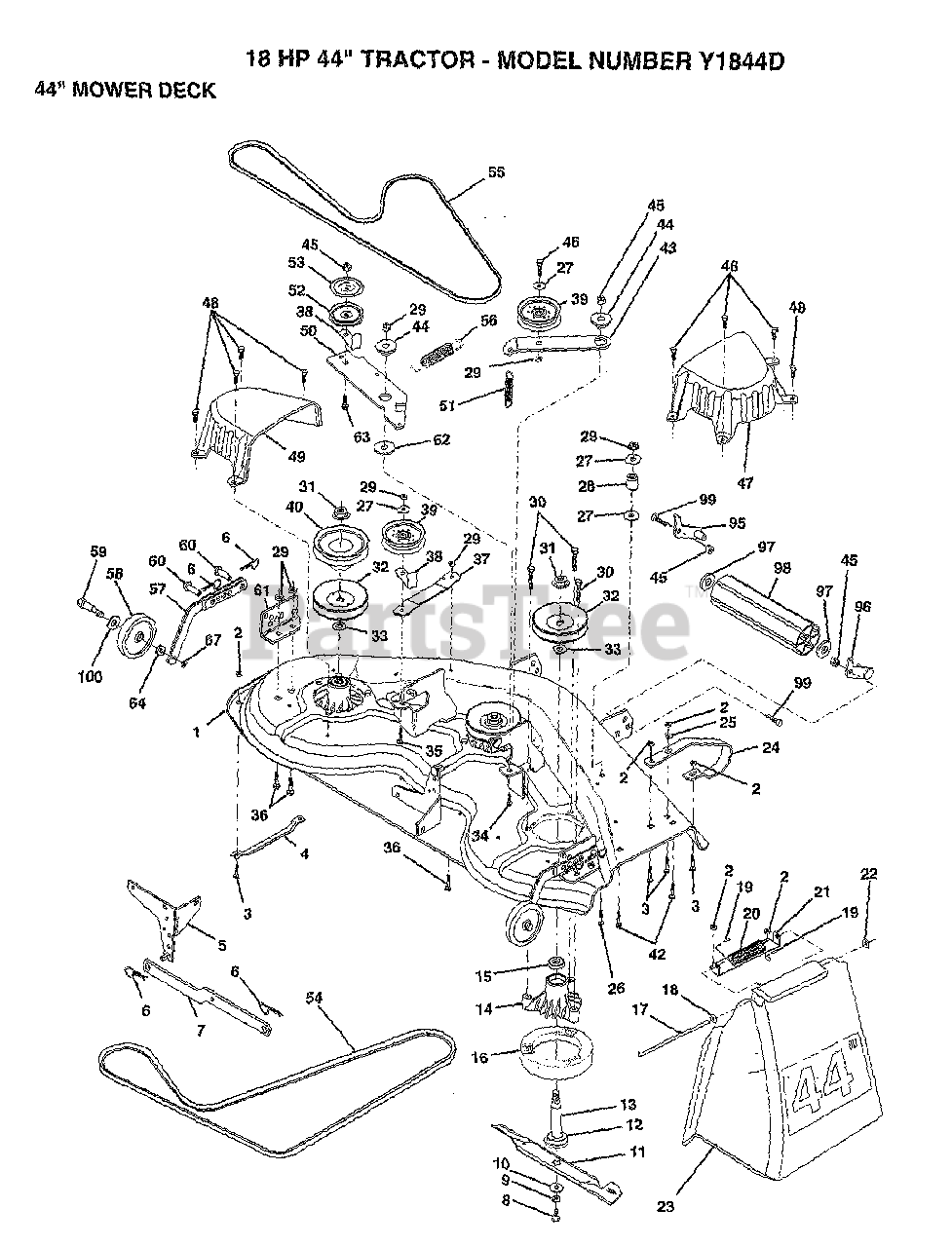

18HP 44" TRACTOR-MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 140579

"DECK ASM WELD44"""
(Superseded to 583074901)

$607.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 138457

BRKT.ASM.SW.44/50
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

6

Murray 4939M

SUB= 85902

$

$

Not available

7

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 130652

"BLADE.44"" HIPERF"
(Superseded to 532130652)

$27.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

SHAFT.ASM.W/BRNG
(Superseded to 532137553)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

HOUSING.MAND.44.V
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 136929

SUB= 140329

$

$

Not available

17

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

19

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 137607

BRKT DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$30.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 136321

RUNNER.RH
(Superseded to 532136321)

$

$

Not available

25

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 132823

SUB= 532132823
(Superseded to 532132823)

$7.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

33

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 72140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110616

BOLT
(Superseded to 872110616)

$3.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 137166

STIFFENER.ARM.IDL
(Superseded to 532137166)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 137554

SUB= 918137554
(Superseded to 597024901)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 136572

"PULLEY.DRIVEN.44"""
(Superseded to 532136572)

$

$

Not available

42

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 136460

"ARM.IDLER.SEC.44"""
(Superseded to 532136460)

$

$

Not available

44

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 137200

"COVER.MAND.RH.44"""
(Superseded to 532137200)

$

$

Not available

48

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 136574

COVER.MANDREL.LH
(Superseded to 532136574)

$

$

Not available

50

Electrolux/AYP 137272

ARM.IDLER.PRIMARY
(Superseded to 532137272)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 137273

"SPRING.SEC.44""VEN"
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

52

Electrolux/AYP 139245

PULLEY.IDLER.VGRO
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 137789

SHIELD.IDLER.44.V
(Superseded to 532137789)

$

$

Not available

54

Electrolux/AYP 131264

V-BELT.PRIM.78.5.
(Superseded to 532131264)

$39.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 131290

BELT-V.88.12.MW
(Superseded to 532144200)

$45.99

$

In Stock, Qty 5

0

56

Electrolux/AYP 138687

SPRING.EXT.DECK.
(Superseded to 532138687)

$

$

Not available

57

Electrolux/AYP 136577

BAR.ASM.GUAGE.WHL
(Superseded to 532136577)

$

$

Not available

58

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 139031

PIN.CLEVIS
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 136573

BRACKET.GUAGE.WHL
(Superseded to 532136573)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 132274

SUB= 532132274
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 132273

SUB= 532132273
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

98

Electrolux/AYP 132264

SUB= 532132264

$

$

Not available

99

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 143651

MANDREL SERV ASM
(Superseded to 532143651)

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 144075

DECK.SERV.44.ELEC
(Superseded to 532144075)

$

$

Not available
