Y 1844 C - Electrolux/AYP Lawn Tractor (1993) 18HP 44" TRACTOR-STEERING Parts Diagram

Lawn Tractor

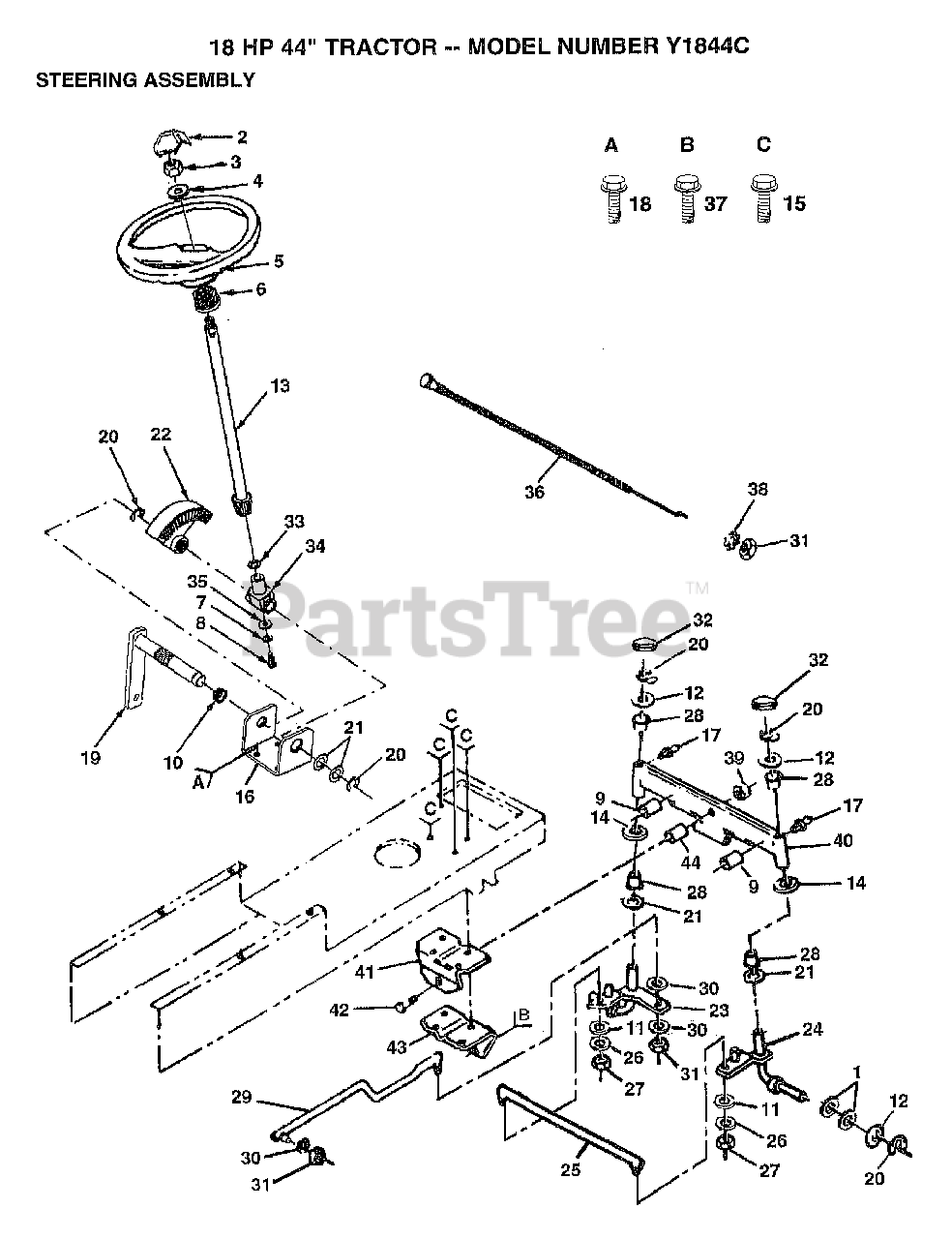

18HP 44" TRACTOR-STEERING Parts Diagram

  • Title
1

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 121584X

INSERT STEERING
(Superseded to 583665801)

$17.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

5

$

$

Not available

6

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

7

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 71070410

"SCREW,SPECIAL"
(Superseded to 71070510)

$

$

Not available

9

Electrolux/AYP 132624

AXLE PIN
(Superseded to 532132624)

$

$

Not available

10

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 128762

SUB= 156544
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 122819X

SCREW SPECIAL
(Superseded to 532122819)

$

$

Not available

16

Electrolux/AYP 124036X

"BRKT,STEERING"
(Superseded to 532124036)

$

$

Not available

17

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 127501

SUB= 918127501
(Superseded to 532156365)

$

$

Not available

20

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

22

Electrolux/AYP 136874

GEAR SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 135227

SPINDLE LH
(Superseded to 532135227)

$

$

Not available

24

Electrolux/AYP 135228

SPINDLE RH
(Superseded to 532135228)

$

$

Not available

25

Electrolux/AYP 130467

TIE ROD
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

26

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 130468

SUB= 532130468
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

33

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

34

Electrolux/AYP 124035X

SUPPORT.SHAFT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

35

Electrolux/AYP 126684X

SUB= 532126684

$

$

Not available

36

Electrolux/AYP 132782

SUB= 132781
(Superseded to 532132782)

$

$

Not available

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 108075X

FRONT AXLE
(Superseded to 532108075)

$

$

Not available

41

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

42

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available
