Y 1844 A - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

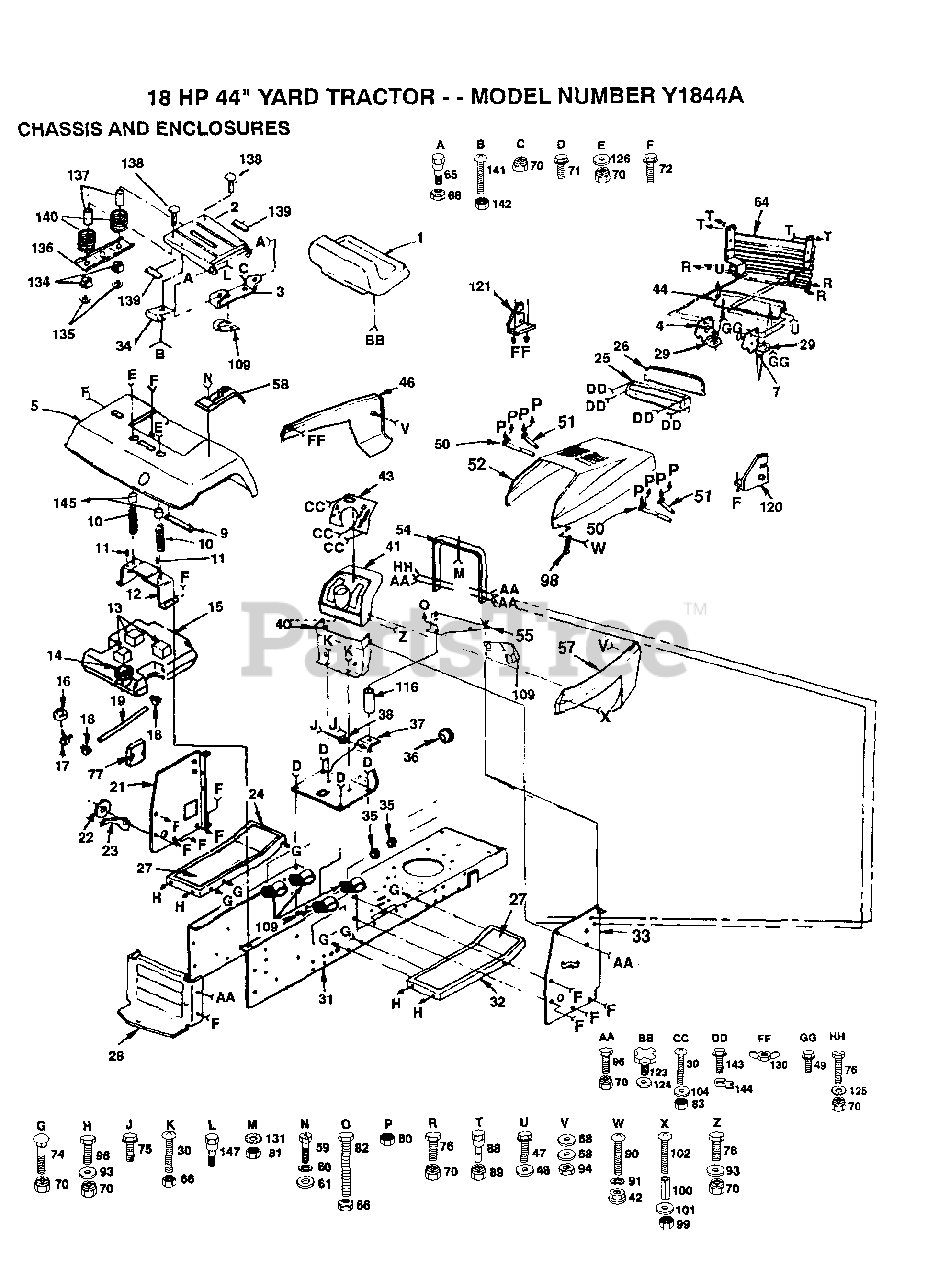

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 127429X

SUB= 140121
(Superseded to 532401043)

$

$

Not available

2

Electrolux/AYP 131451

SUB= 155925

$

$

Not available

3

Electrolux/AYP 126656X

SUB= 140551

$

$

Not available

4

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

5

Electrolux/AYP 123784X505

FENDER
(Superseded to 167270X505)

$91.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

9

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

10

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

13

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

14

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

16

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

18

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

19

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 124118X

PANEL DASH LH
(Superseded to 532124118)

$

$

Not available

22

Electrolux/AYP 120529X

WASHER T
(Superseded to 532120529)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 123933X394

SUB= 123933X505

$

$

Not available

24

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

25

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

26

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 123785X

DRAW BAR
(Superseded to 532145009)

$

$

Not available

29

Electrolux/AYP 19111212

WASHER
(Superseded to 819111212)

$3.99

$

In Stock, Qty 18

0

30

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

31

Electrolux/AYP 127166X

CHASSIS
(Superseded to 532127166)

$

$

Not available

32

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

33

Electrolux/AYP 133748

DASH PANEL RH
(Superseded to 532110828)

$

$

Not available

34

Electrolux/AYP 4171R

CLIP T

$

$

Not available

35

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

36

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

37

Electrolux/AYP 123783X013

SADDLE

$

$

Not available

38

Electrolux/AYP 1551J

BUSHING STEERING

$

$

Not available

40

Electrolux/AYP 104805X

LOWER DASH
(Superseded to 532104805)

$

$

Not available

41

Electrolux/AYP 124252X

SUB= 140398

$

$

Not available

42

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 121444X015

DASHPLATE

$13.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 105419X505

GRILL STRAP

$

$

Not available

46

Electrolux/AYP 132638X505

SUB= 150302X505

$

$

Not available

47

Electrolux/AYP 17190412

SCREW
(Superseded to 817190412)

$

$

Not available

48

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

51

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

52

Electrolux/AYP 132635X505

SUB= 150301X505

$

$

Not available

54

Electrolux/AYP 124130X

SUPPORT ASS'Y
(Superseded to 532124130)

$

$

Not available

55

Electrolux/AYP 106965X

SUB= 140181

$

$

Not available

57

Electrolux/AYP 132639X505

"PANEL,SIDE RH "
(Superseded to 150303X505)

$

$

Not available

58

Electrolux/AYP 123825X

CONSOLE SHIFTER
(Superseded to 532123825)

$

$

Not available

59

Electrolux/AYP 74640806

SCREW
(Superseded to 874640806)

$4.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 10100800

"WASHER,LOCK"
(Superseded to 810100800)

$3.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 19060718

WASHER
(Superseded to 819060718)

$2.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 122100X

GRILL ASSY

$

$

Not available

65

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

66

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

74

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

76

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

80

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

81

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

82

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 123481X

SUB= 7605J

$

$

Not available

89

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

90

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

93

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

94

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

96

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

98

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

99

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 8

0

101

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

104

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

109

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

116

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

120

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

121

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

123

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

124

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

125

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

126

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

131

Electrolux/AYP 11050400

LOCKWASHER

$2.49

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

136

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

137

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

138

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

139

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

140

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

141

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

142

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 17211010

SCREW LT

$2.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 124238X

CAP SPRING
(Superseded to 532124238)

$

$

Not available

147

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0
