Y 144 (21AA144R900) - Yard Machines Tiller (2010) General Assembly 11.30.11 & Before Parts Diagram

Tiller

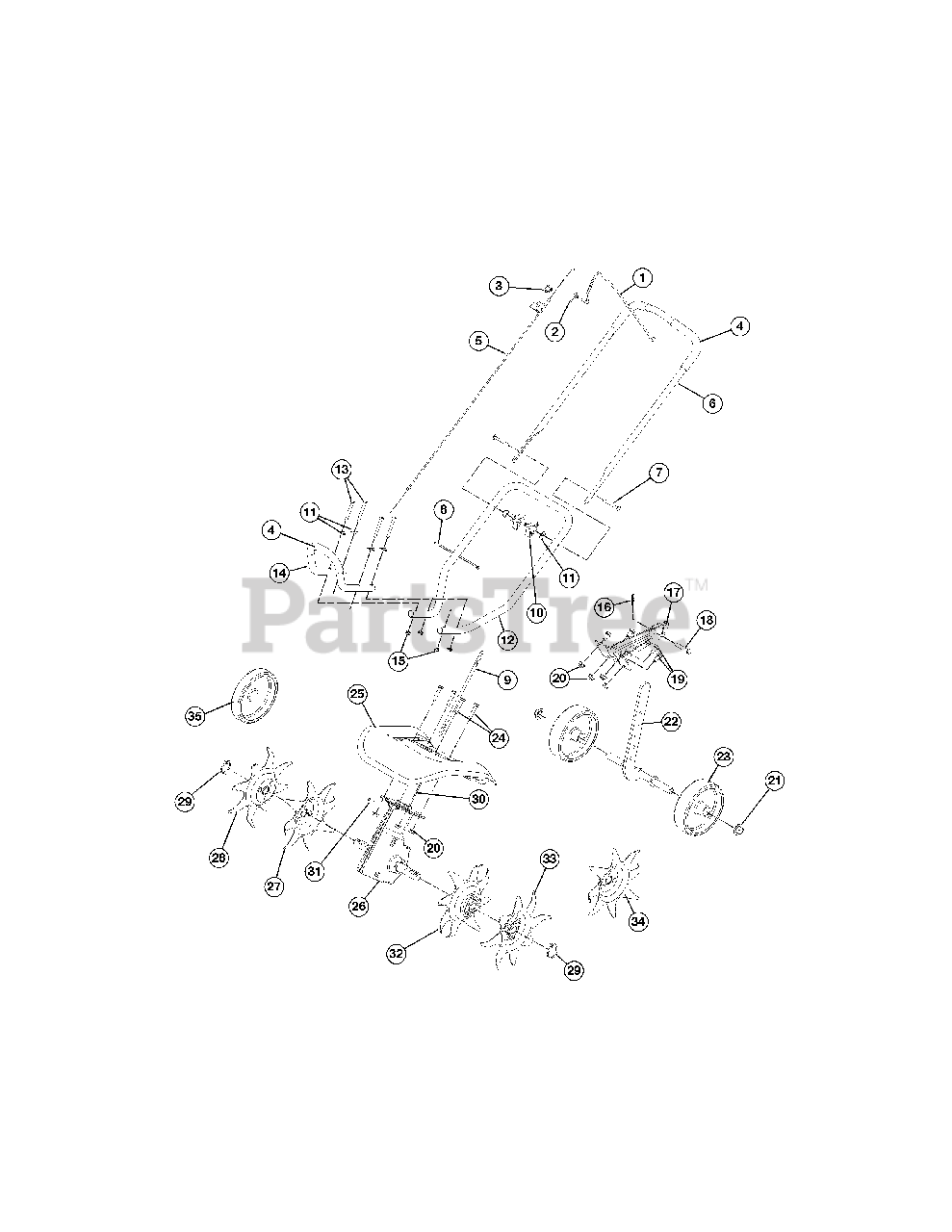

General Assembly 11.30.11 & Before Parts Diagram

  • Title
1

MTD 753-04042

Throttle Control

$

$

Not available

2

MTD 753-05940

Torsion Spring

$3.99

$

In Stock, Qty 9

0

3

MTD 791-182405

On/Off Switch

$10.99

$

In Stock, Qty 12

0

4

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

5

MTD 753-06050

Throttle Cable

$26.99

$

In Stock, only 4 left!

0

6

MTD 749-04080-0637

Upper Handle
(Superseded to 753-06319)

$23.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

MTD 753-04499

Flex Shaft

$29.99

$

In Stock, Qty 6

0

10

$14.99

$

In Stock, only 2 left!

0

11

MTD 936-0451

Shoulder Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 749-1295A-0637

Lower Handle

$59.99

$

In Stock, only 1 left!

0

13

MTD 710-0395

Screw

$4.99

$

In Stock, only 1 left!

0

14

MTD 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

15

MTD 712-3004A

Lock Nut

$3.99

$

In Stock, Qty 20+

0

16

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 753-04058

Tailpiece Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

18

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

19

MTD 710-3013

Cap Screw

$4.99

$

In Stock, Qty 11

0

20

MTD 912-3027

Lock Nut

$4.49

$

In Stock, Qty 17

0

21

MTD 726-0299

Cap Push

$8.49

$

In Stock, Qty 20+

0

22

MTD 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

23

MTD 1917754

Wheel
(Superseded to 734-04261)

$21.99

$

In Stock, only 1 left!

0

24

MTD 6109

Cap Screw

$4.49

$

Usually ships in 3-6 days

0

25

MTD 753-04502

Tine Shield

$

$

Not available

26

MTD 753-04075

Gear Box Assembly

$196.99

$

Usually ships in 3-6 days

0

27

MTD 753-04074

Tine (Inner)

Note: RH

$

$

Not available

28

MTD 753-04073

Tine (Outer)

Note: RH

$

$

Not available

29

MTD 753-04070

Click Pin

$9.99

$

In Stock, Qty 20+

0

30

MTD 753-05469

Drive Shaft Housing

$36.99

$

In Stock, only 1 left!

0

31

MTD 791-180288

Sleeve Retaining Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

32

MTD 753-04072

Tine (Inner)

Note: LH

$

$

Not available

33

MTD 753-04071

Tine (Outer)

Note: LH

$

$

Not available

34

MTD 753-04069

Edger Tine

$

$

Not available

35

MTD 753-04068

Edger Wheel

$17.99

$

Usually ships in 3-6 days

0
