Y 1438 B - Electrolux/AYP Lawn Tractor (1991) MOWER Parts Diagram

Lawn Tractor

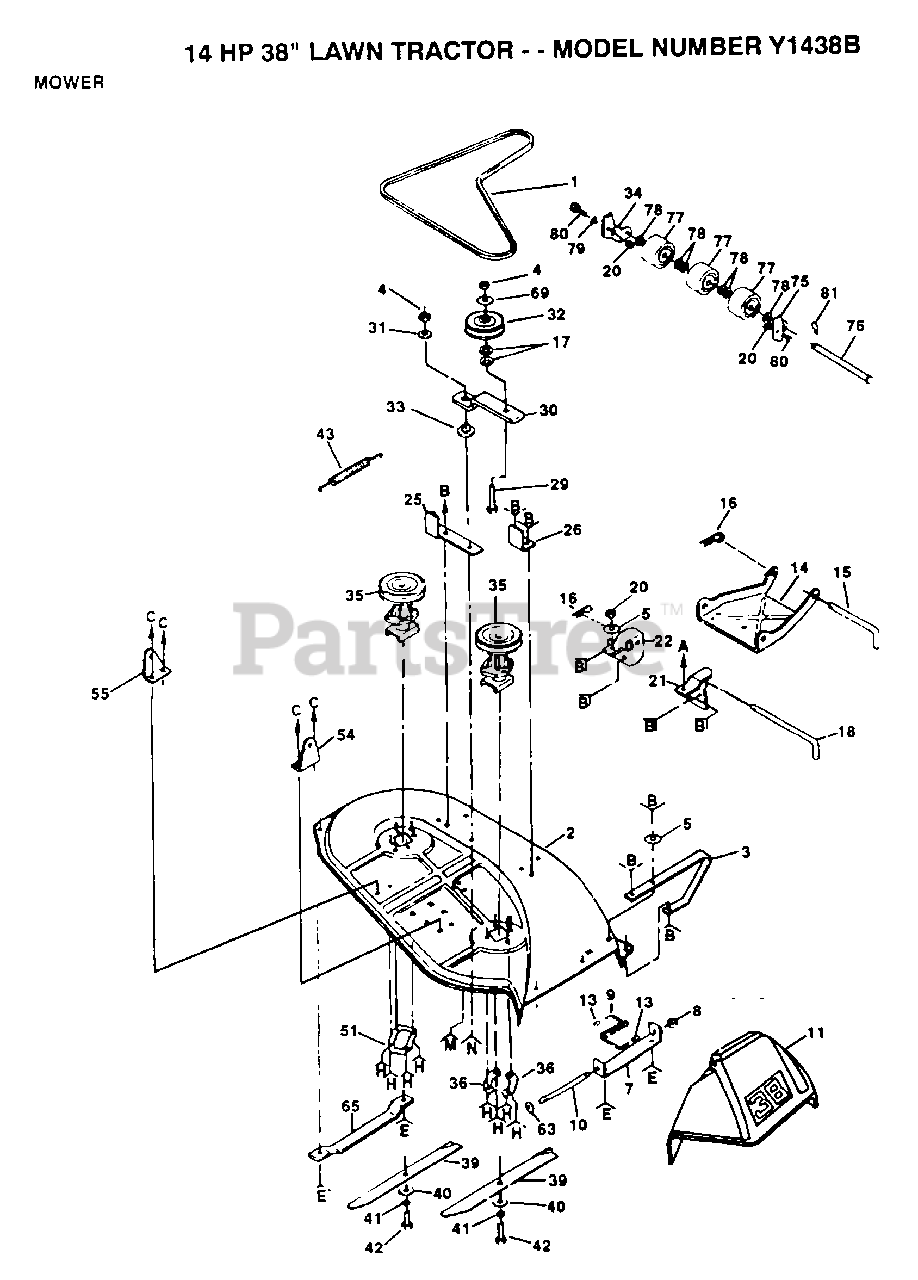

MOWER Parts Diagram

  • Title
1

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$43.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 121458X

SUB= 144726
(Superseded to 532121458)

$

$

Not available

3

Electrolux/AYP 8417J

SUB= 128772

$

$

Not available

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 105896X

SUB= 137607
(Superseded to 532105896)

$

$

Not available

8

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

10

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

13

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

15

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

16

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

18

Electrolux/AYP 109835X

HINGE PIN T
(Superseded to 532109835)

$

$

Not available

20

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 109598X

BRACKET RH LT
(Superseded to 532109598)

$

$

Not available

22

Electrolux/AYP 109597X

BRACKET LH T
(Superseded to 532109597)

$

$

Not available

25

Electrolux/AYP 109503X

SUPPORT ARM T
(Superseded to 532109503)

$

$

Not available

26

Electrolux/AYP 109504X

STOP T
(Superseded to 532109504)

$

$

Not available

29

Electrolux/AYP 74760636

BOLT
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

30

$

$

Not available

31

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 123688X

SUB= 121316X

$

$

Not available

33

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

34

Electrolux/AYP 109646X

BRACKET LH T
(Superseded to 532109646)

$

$

Not available

65

Electrolux/AYP 121676X

SUB= 121687X

$

$

Not available

36

Electrolux/AYP 100668L

SUPPORT PLATE LT
(Superseded to 532100668)

$

$

Not available

39

Electrolux/AYP 121263X

"BLADE.38"" HI-LI"
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

42

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

51

Electrolux/AYP 110445X

SUPPORT T
(Superseded to 532110445)

$10.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 105857X

"BRKT,SUSP RH T"
(Superseded to 532105857)

$

$

Not available

55

Electrolux/AYP 108673X

"BRKT,SUSP REAR LH"
(Superseded to 532108673)

$

$

Not available

63

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

65

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

75

Electrolux/AYP 109647X

BRACKET RH T
(Superseded to 532109647)

$

$

Not available

76

Electrolux/AYP 109776X

PIVOT PIN T
(Superseded to 532109776)

$8.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 109729X

ROLLER T
(Superseded to 532109729)

$

$

Not available

78

Electrolux/AYP 19151610

WASHER T
(Superseded to 819151610)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

Electrolux/AYP 122221X

"DECK,COMPLETE"

$

$

Not available

Electrolux/AYP 108682X

NLA
(Superseded to 532108682)

$

$

Not available

Electrolux/AYP 121349X

DECAL WARNING
(Superseded to 532121349)

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 109820X

DECAL YT
(Superseded to 532109820)

$

$

Not available
