Y 1438 B - Electrolux/AYP Lawn Tractor (1991) ELECTRICAL Parts Diagram

Lawn Tractor

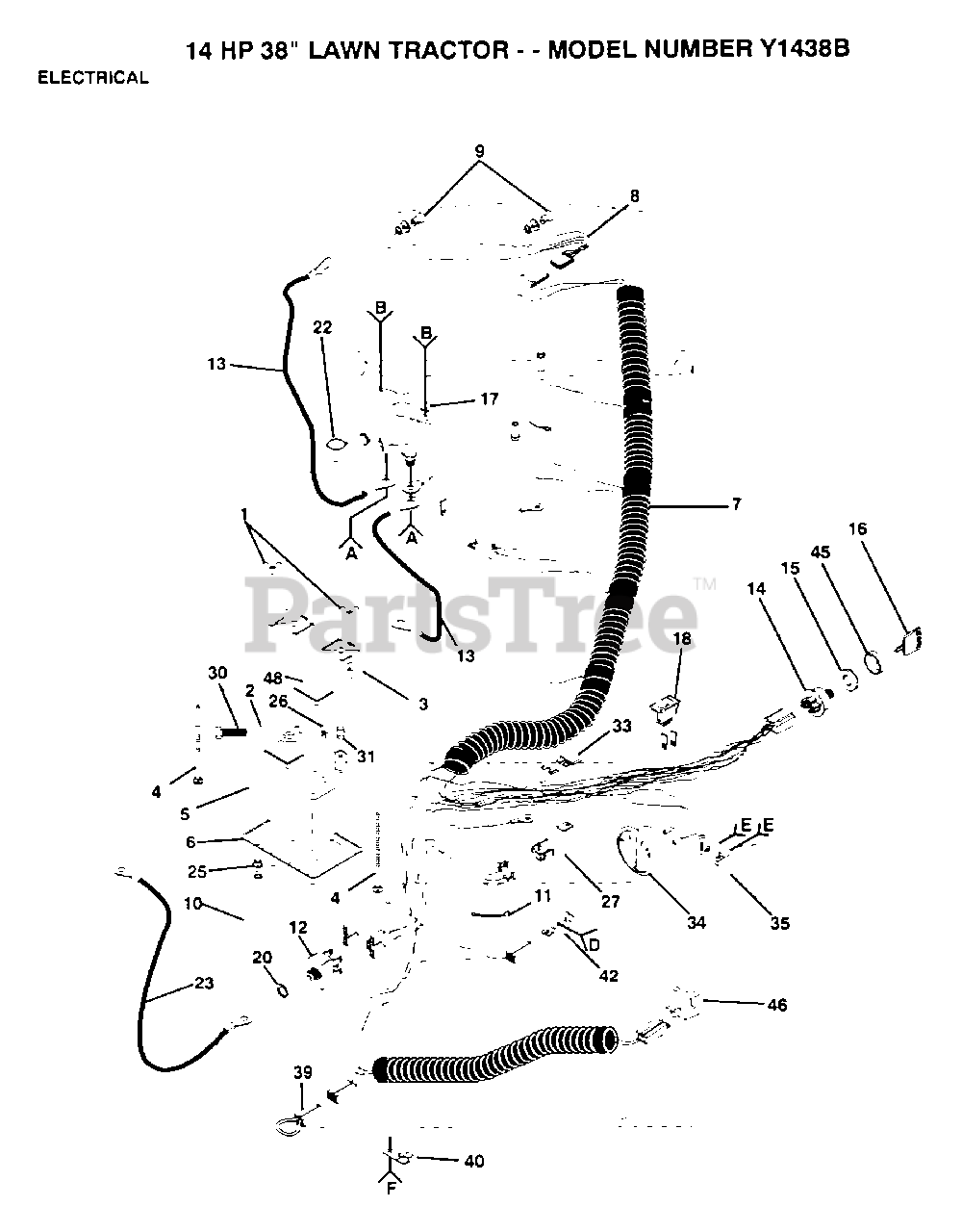

ELECTRICAL Parts Diagram

  • Title
2

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

4

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

6

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 127441X

SUB= 136850
(Superseded to 136850)

$

$

Not available

9

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

14

Electrolux/AYP 102972X

SUB= 918102972X
(Superseded to 532102972)

$

$

Not available

15

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

16

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

17

$

$

Not available

18

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available

22

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

23

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 6009J

SUB= 532131708
(Superseded to 532124901)

$

$

Not available

39

Electrolux/AYP 102501X

SUB= 141940
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

45

$

$

Not available

46

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

$

$

Not available

$

$

Not available

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 101572X

SHEET-INSTRUCTION (FRENCH)
(Superseded to 532101572)

$

$

Not available

Electrolux/AYP 121549X

DECAL
(Superseded to 532121549)

$

$

Not available
