Y 1438 B - Electrolux/AYP Lawn Tractor (1991) DRIVE GROUP Parts Diagram

Lawn Tractor

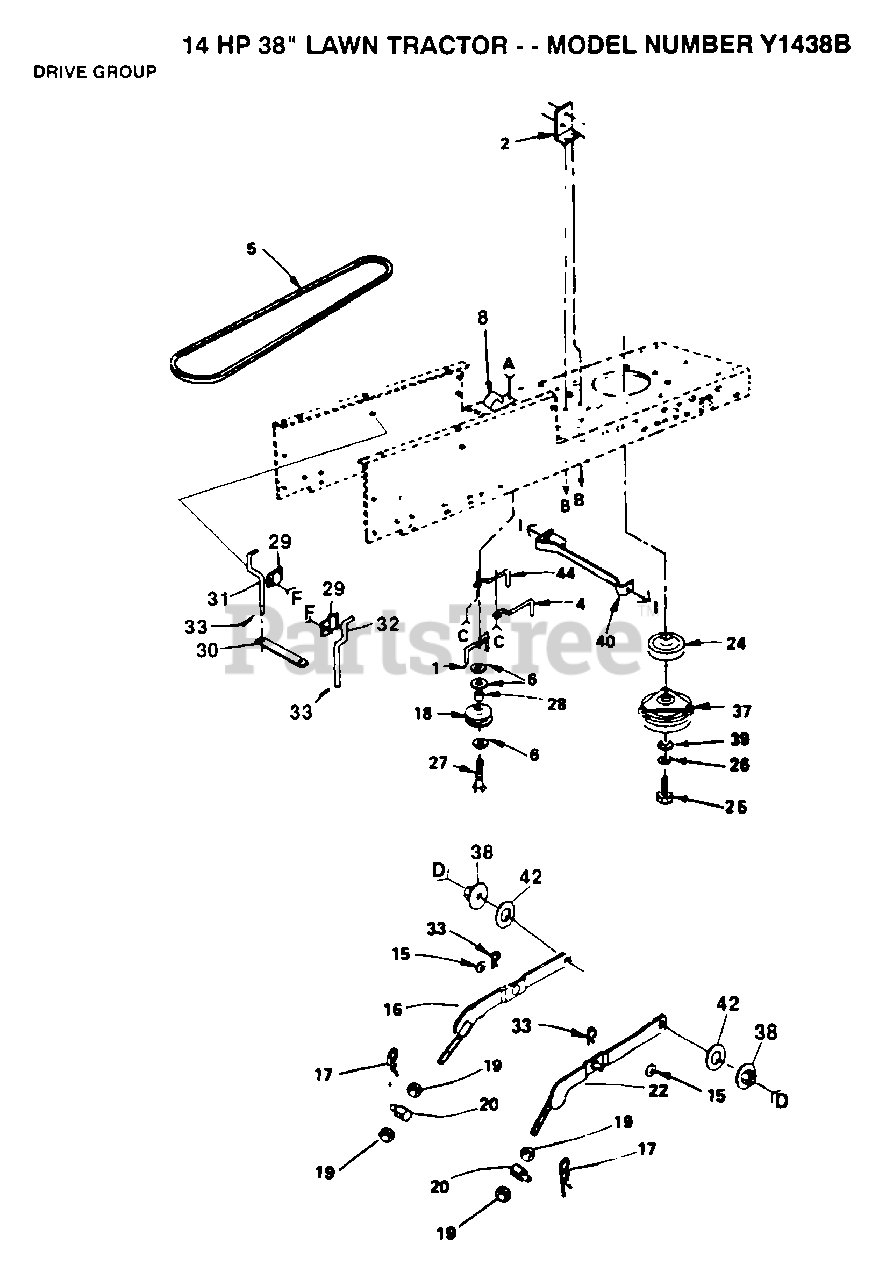

DRIVE GROUP Parts Diagram

  • Title
1

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 105730X

"KEEPER,BLT ENG LT"
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 125907X

BELT-V.90.0.GD.DR
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

6

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121599X

LH SUSP ARM ASM
(Superseded to 532121599)

$

$

Not available

17

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

20

$

$

Not available

22

Electrolux/AYP 121598X

RH SUSP ARM ASM
(Superseded to 532121598)

$

$

Not available

24

$

$

Not available

25

Electrolux/AYP 71130764

SUB= 71130768

$

$

Not available

26

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 106190X

CLAMP LT
(Superseded to 532106190)

$

$

Not available

30

Electrolux/AYP 123770X

STRAP LOCATOR
(Superseded to 532123770)

$

$

Not available

31

Electrolux/AYP 123662X

KEEPER BELT LH
(Superseded to 532123662)

$

$

Not available

32

Electrolux/AYP 123663X

KEEPER BELTRH
(Superseded to 532123663)

$

$

Not available

33

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

37

$

$

Not available

38

Electrolux/AYP 73980600

NUT SPECIAL T
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

40

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

42

Electrolux/AYP 110739X

WASHER T
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 121218X

KEEPER BELT ENGLH
(Superseded to 532121218)

$

$

Not available
