Y 12R38 D - Electrolux/AYP Lawn Tractor (1995) TRANSAXLE Parts Diagram

Lawn Tractor

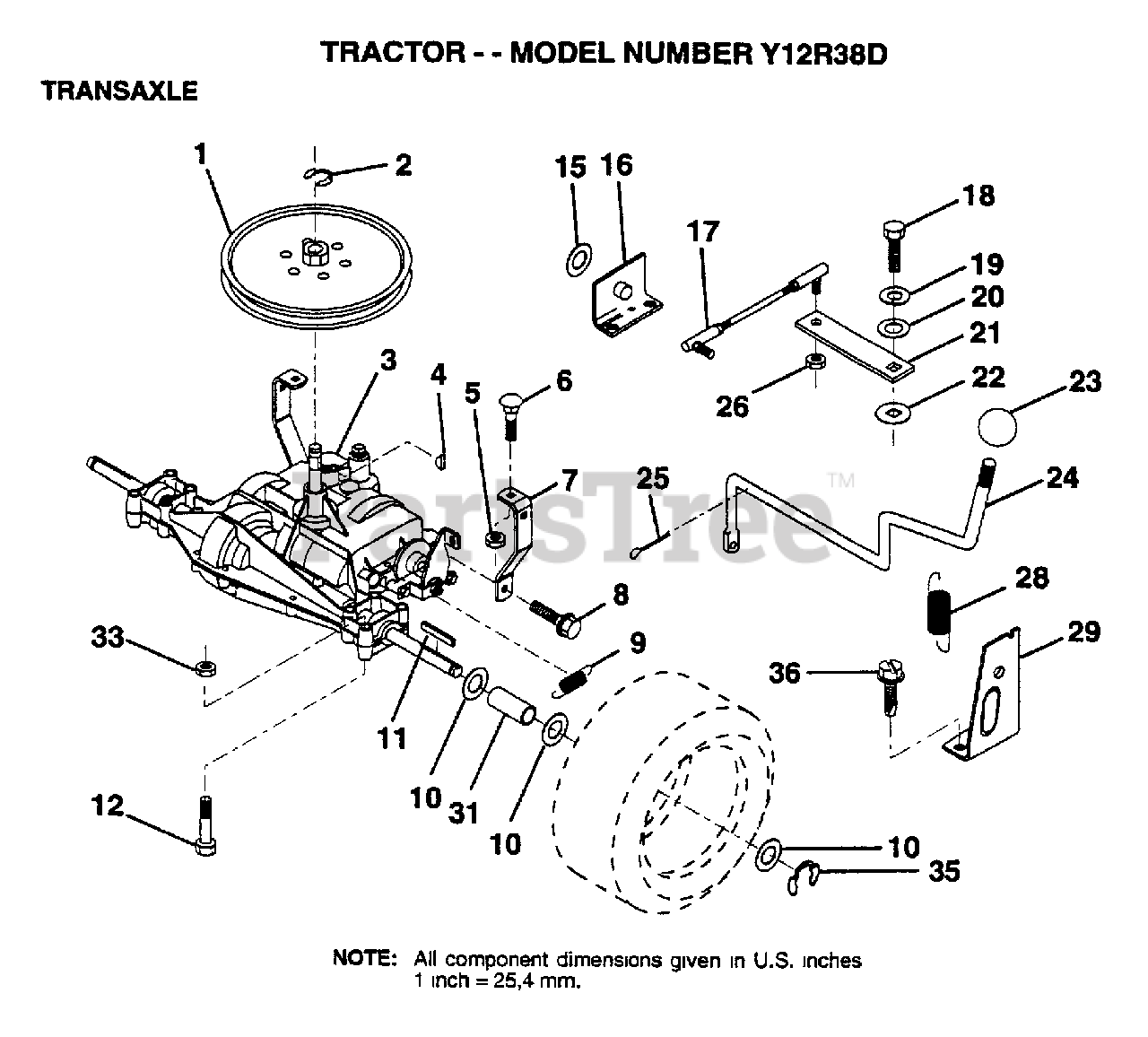

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 123385X

PULLEY
(Superseded to 532123385)

$45.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

3

Electrolux/AYP 142603

SUB= 160664
(Superseded to 170269)

$

$

Not available

4

Murray 2228M

SUB= 2228M1

$

$

Not available

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 123378X

"STRAP,TORQUE"
(Superseded to 532123378)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 146682

SPRING.BRAKE.RETU
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

12

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 124600X

"SUPT,HDLE SHT LH"
(Superseded to 532124600)

$

$

Not available

17

Electrolux/AYP 123632X

"LINK,SHIFT"
(Superseded to 532123632)

$

$

Not available

18

Electrolux/AYP 74550412

BOLT.1/4-28.W/PAT
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 123539X

"ARM,SHIFT"
(Superseded to 532123539)

$

$

Not available

22

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 121274X

KNOB.DUCKHEAD.1/2
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 128215

"ROD,SHIFT"
(Superseded to 532128215)

$

$

Not available

25

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 128085

"SPRING,EXT"
(Superseded to 532128085)

$

$

Not available

29

Electrolux/AYP 128084

"SUPT,HDLE RH"
(Superseded to 532128084)

$

$

Not available

31

Electrolux/AYP 109502X

SPACER LT
(Superseded to 532109502)

$

$

Not available

33

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0
