Y 125H42 A - Electrolux/AYP Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

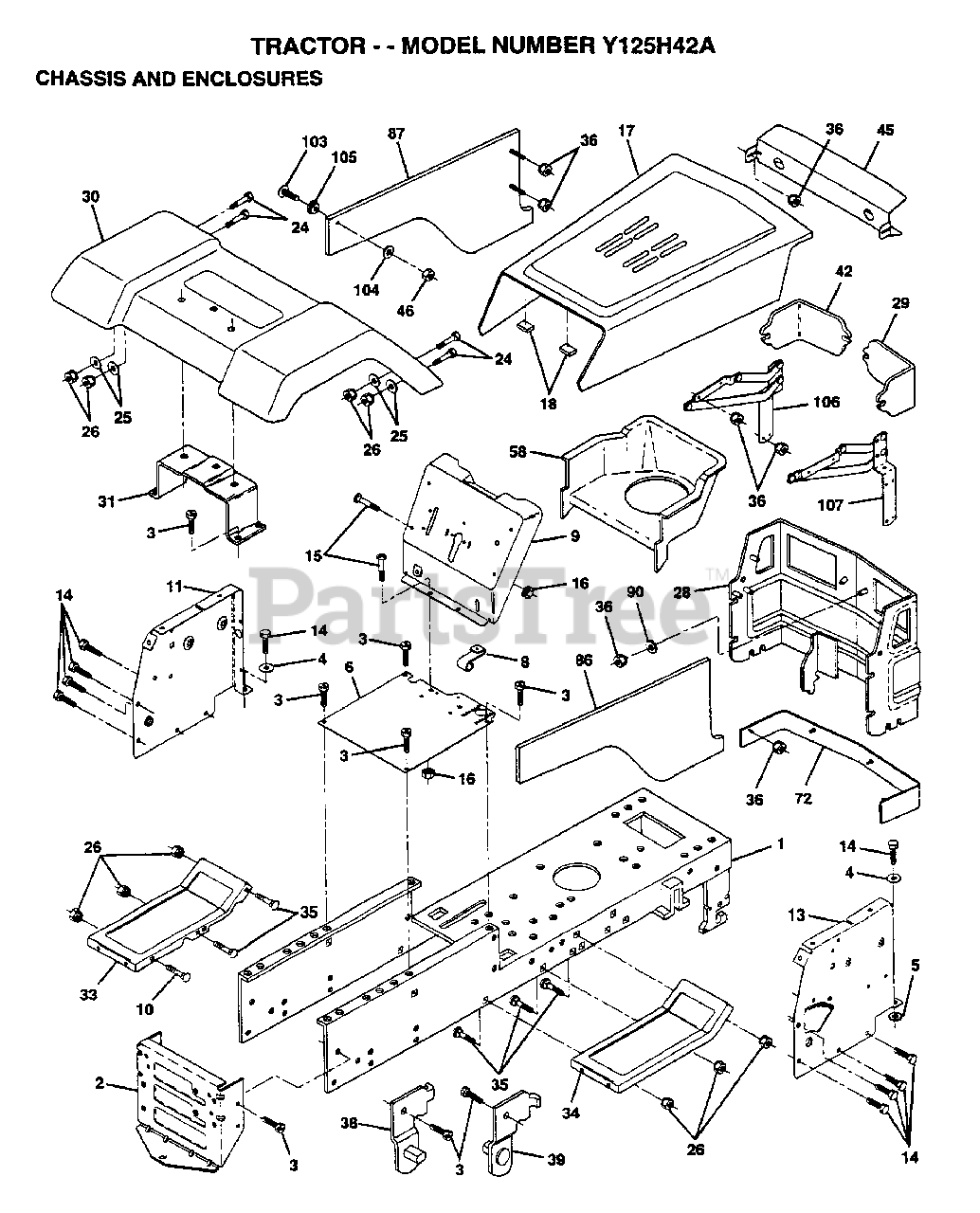

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

4

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140637X011

DASH SILKSCRN 1

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 135464

DASH PANEL LH
(Superseded to 146956)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 124031X012

SUB= 155934X010

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 105682X505

HOOD ASM.

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 128313

SUB= 532128313

$

$

Not available

29

Electrolux/AYP 108360X

LENS RH LT

$

$

Not available

30

Electrolux/AYP 140001X505

FENDER PNT LT

$104.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

BRKT FENDER
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

34

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

42

Electrolux/AYP 108361X

LENS LH LT

$

$

Not available

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

46

Electrolux/AYP 127316X

RETAINER
(Superseded to 532127316)

$

$

Not available

58

Electrolux/AYP 106213X

"DUCT, INTAKE T"
(Superseded to 583649101)

$

$

Not available

72

Electrolux/AYP 109745X505

STRAP ASM GRILL

$3.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 106927X505

SIDE PANEL ASM RH

$

$

Not available

87

Electrolux/AYP 106929X505

SIDE PANEL ASM LH

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 127317X

"SCREW,SPECIAL"

$2.49

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 129664

WASHER

$

$

Not available

105

Electrolux/AYP 127318X

"GROMMET,PLASTIC"
(Superseded to 583673301)

$3.99

$

Usually ships in 3-10 days

0

106

Electrolux/AYP 105797X

"HINGE,HOOD,LH T"

$

$

Not available

107

Electrolux/AYP 105792X

"HINGE,HOOD,RH T"

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
