Y 125H38 A - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

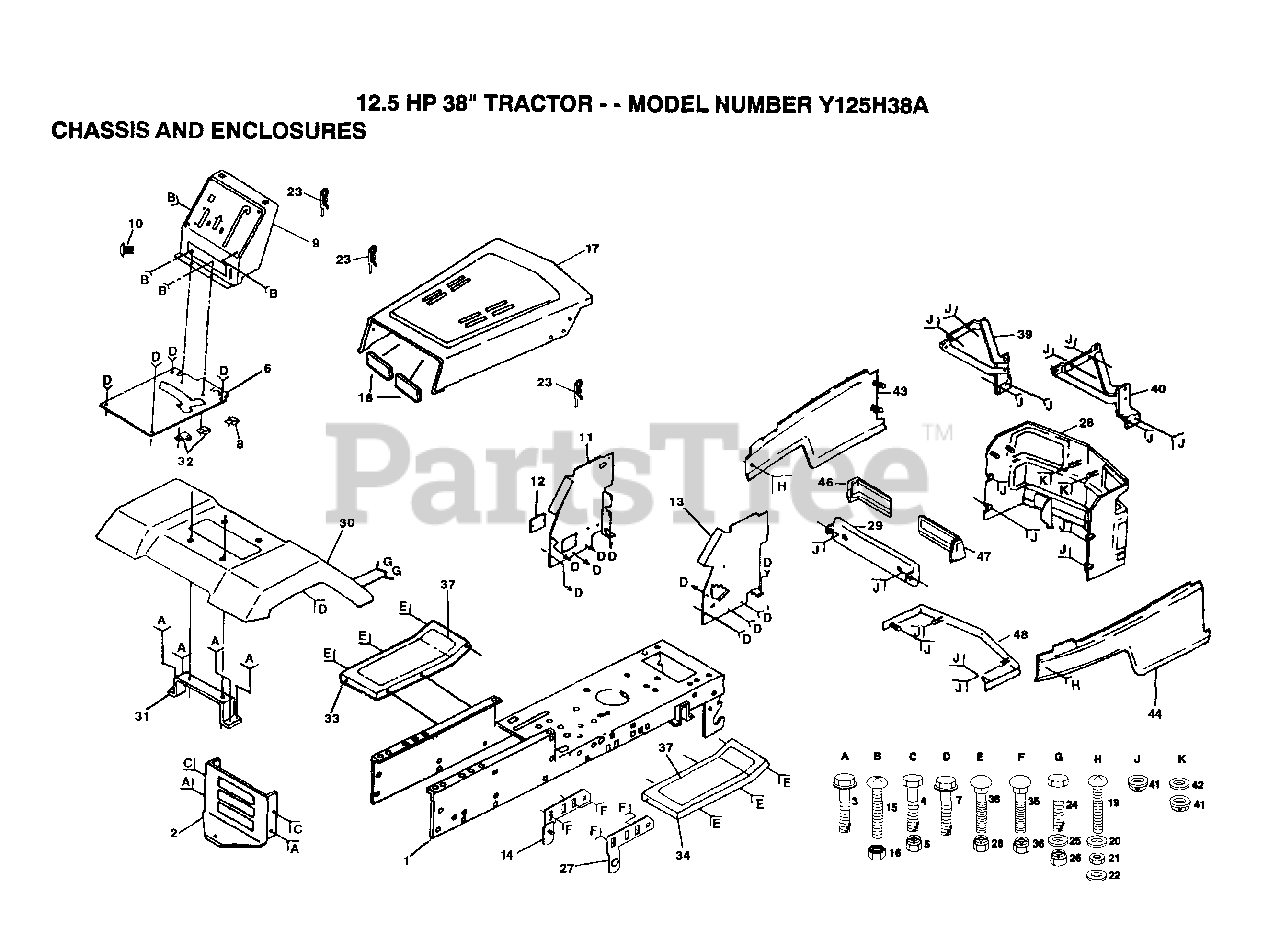

CHASSIS AND ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 135033

CHASSIS ASM

$

$

Not available

2

Electrolux/AYP 127866

DRAWBAR LT/YT
(Superseded to 532121306)

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

5

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 126595X012

SADDLE

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 126601X011

No Desciption for Part

$

$

Not available

10

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 122795X

PANEL DASH LH

$5.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 124031X012

SUB= 155934X010

$

$

Not available

14

Electrolux/AYP 134618

BRKT ASM PIVOT LH
(Superseded to 582950001)

$6.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 105682X505

HOOD ASM.

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

19

Electrolux/AYP 127317X

"SCREW,SPECIAL"

$2.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 129964

SUB= 129664

$

$

Not available

21

Electrolux/AYP 127316X

RETAINER
(Superseded to 532127316)

$

$

Not available

22

Electrolux/AYP 127318X

"GROMMET,PLASTIC"
(Superseded to 583673301)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 134617

BRKT ASM PIVOT RH

$

$

Not available

28

Electrolux/AYP 128313

SUB= 532128313

$

$

Not available

29

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

30

Electrolux/AYP 126599X505

FENDER

$

$

Not available

31

Electrolux/AYP 109873X

SUB= 136619

$

$

Not available

32

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

34

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

35

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

36

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 105797X

"HINGE,HOOD,LH T"

$

$

Not available

40

Electrolux/AYP 105792X

"HINGE,HOOD,RH T"

$

$

Not available

41

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

42

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 106929X505

SIDE PANEL ASM LH

$

$

Not available

44

Electrolux/AYP 106927X505

SIDE PANEL ASM RH

$

$

Not available

46

Electrolux/AYP 108361X

LENS LH LT

$

$

Not available

47

Electrolux/AYP 108360X

LENS RH LT

$

$

Not available

48

Electrolux/AYP 109745X505

STRAP ASM GRILL

$3.99

$

Usually ships in 3-10 days

0
