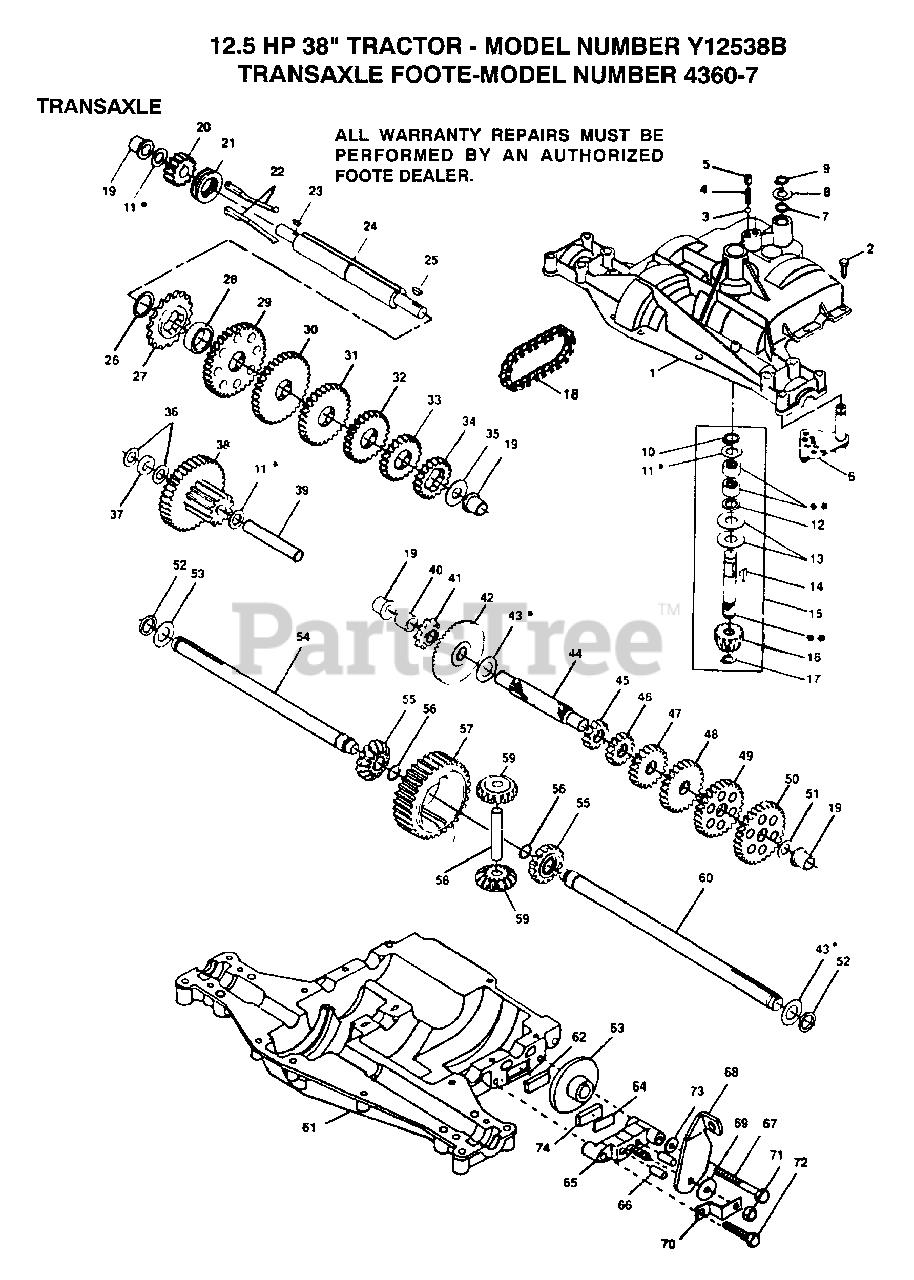

Y 12538 B - Electrolux/AYP Lawn Tractor (1992) TRANSAXLE Parts Diagram

Lawn Tractor

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 3865

HOUSING UPPER

$

$

Not available

$

$

Not available

3

Electrolux/AYP 1151

BALL DETENT

$

$

Not available

4

Electrolux/AYP 3626

SPRING, DETENT

$

$

Not available

5

Electrolux/AYP 3623

SCREW, SET

$

$

Not available

6

Electrolux/AYP 4336

ASSY SHIFTER

$

$

Not available

$

$

Not available

8

Electrolux/AYP 3885

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3886

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3887

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3888

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3889

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3121

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3890

WASHER PLAIN

$

$

Not available

9

Electrolux/AYP 1100

RING RETAINING

$

$

Not available

10

Electrolux/AYP 1099

RING RETAINING

$

$

Not available

11

Electrolux/AYP 1959

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1441

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1423

WASHER, PLAIN .632 X 1.00 X .026

$

$

Not available

Electrolux/AYP 1082

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1424

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1068

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

Electrolux/AYP 1319

WASHER PLAIN

$

$

Not available

$

$

Not available

13

Electrolux/AYP 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

14

Electrolux/AYP 1374

KEY WOODRUFF #9

$

$

Not available

15

Electrolux/AYP 4134

ASSY KIT INPUT SHAFT

$

$

Not available

16

Electrolux/AYP 3590

PINION, BEVEL, 14 TEETH

$

$

Not available

17

Electrolux/AYP 3624

RING, RETAINING

$

$

Not available

18

Electrolux/AYP 3625

CHAIN, 24 PITCHES

$

$

Not available

19

Electrolux/AYP 1542

BEARING, FLANGE

$

$

Not available

20

Electrolux/AYP 3773

GEAR SPUR, 14 TEETH

$

$

Not available

21

Electrolux/AYP 3631

COLLAR CLUTCH

$

$

Not available

22

Electrolux/AYP 3828

KEY CLUTCH

$

$

Not available

23

Electrolux/AYP 1369

KEY WOODRUFF #3

$

$

Not available

24

Electrolux/AYP 3883

SHAFT INTERMEDIATE

$

$

Not available

25

Electrolux/AYP 1375

KEY, WOODRUFF, #61

$

$

Not available

26

Electrolux/AYP 3627

RING, RETAINING

$

$

Not available

27

Electrolux/AYP 3830

SPROCKET, 18 TEETH

$

$

Not available

$

$

Not available

29

Electrolux/AYP 3786

GEAR, SPUR, 37 TEETH

$

$

Not available

30

Electrolux/AYP 3785

GEAR, SPUR, 35 TEETH

$

$

Not available

31

Electrolux/AYP 3867

GEAR, SPUR, 30 TEETH

$

$

Not available

32

Electrolux/AYP 3783

GEAR, SPUR, 25 TEETH

$

$

Not available

33

Electrolux/AYP 3869

GEAR, SPUR, 22 TEETH

$

$

Not available

34

$

$

Not available

35

Electrolux/AYP 3628

WASHER, PLAIN .640 X 1.37 X .061

$

$

Not available

36

Electrolux/AYP 1423

WASHER, PLAIN .632 X 1.00 X .026

$

$

Not available

37

Electrolux/AYP 3422

SPACER .630 X 1.00 X .169

$

$

Not available

38

Electrolux/AYP 4286

ASSY GEAR COMB 12&35 TEETH

$

$

Not available

39

Electrolux/AYP 3877

SHAFT IDLER

$

$

Not available

40

Electrolux/AYP 3901

SPACER .635 X .875 X .755

$

$

Not available

41

Electrolux/AYP 3645

SPROCKET, 9 TEETH

$

$

Not available

42

Electrolux/AYP 3853

GEAR, BEVEL, 42 TEETH

$

$

Not available

43

Electrolux/AYP 3749

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3652

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3693

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3653

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3408

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3732

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

Electrolux/AYP 3733

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3198

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3734

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3735

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3736

WASHER PLAIN

$

$

Not available

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

44

Electrolux/AYP 3882

SHAFT, DRIVE

$

$

Not available

45

Electrolux/AYP 3646

GEAR, SPUR, 12 TEETH

$

$

Not available

46

Electrolux/AYP 3707

GEAR SPUR, 15 TEETH

$

$

Not available

47

Electrolux/AYP 3866

GEAR, SPUR, 20 TEETH

$

$

Not available

48

Electrolux/AYP 3719

GEAR, SPUR, 25 TEETH

$

$

Not available

49

Electrolux/AYP 3868

GEAR, SPUR, 28 TEETH

$

$

Not available

50

Electrolux/AYP 3683

GEAR, SPUR, 31 TEETH

$

$

Not available

51

Electrolux/AYP 1145

WASHER, PLAIN .632 X 1.00 X .060

$

$

Not available

52

$

$

Not available

53

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

54

Electrolux/AYP 3880

AXLE LEFT HAND

$

$

Not available

55

Electrolux/AYP 3780

GEAR, MITER, 15 TEETH

$

$

Not available

56

Electrolux/AYP 3656

RING, RETAINING

$

$

Not available

57

Electrolux/AYP 3839

GEAR, SPUR, 32 TEETH

$

$

Not available

58

Electrolux/AYP 3919

SHAFT, CROSS

$

$

Not available

59

Electrolux/AYP 3781

GEAR, MITER, 15 TEETH

$

$

Not available

60

Electrolux/AYP 3881

AXLE, R.H.

$

$

Not available

61

Electrolux/AYP 3864

HOUSING LOWER

$

$

Not available

62

Electrolux/AYP 3920

PUCK, FRICTION

$

$

Not available

63

Electrolux/AYP 3276

DISC, BRAKE

$

$

Not available

$

$

Not available

65

Electrolux/AYP 3916

JAW, BRAKE

$

$

Not available

66

Electrolux/AYP 3843

PIN, DOWEL

$

$

Not available

67

Electrolux/AYP 3915

SCREW TAPPING

$

$

Not available

68

Electrolux/AYP 3768

LEVER, ACTUATING

$

$

Not available

69

Electrolux/AYP 3760

WASHER, PLAIN .321 X 1.00 X .055

$

$

Not available

70

Electrolux/AYP 3917

BRACKET, ANTI-ROTATION

$

$

Not available

71

Electrolux/AYP 3847

LOCKNUT 5/16-24

$

$

Not available

72

Electrolux/AYP 3724

SCREW TAPPING

$

$

Not available

73

Electrolux/AYP 3906

WASHER PLAIN

$

$

Not available

74

Electrolux/AYP 3907

PUCK, FRICTION

$

$

Not available

$

$
