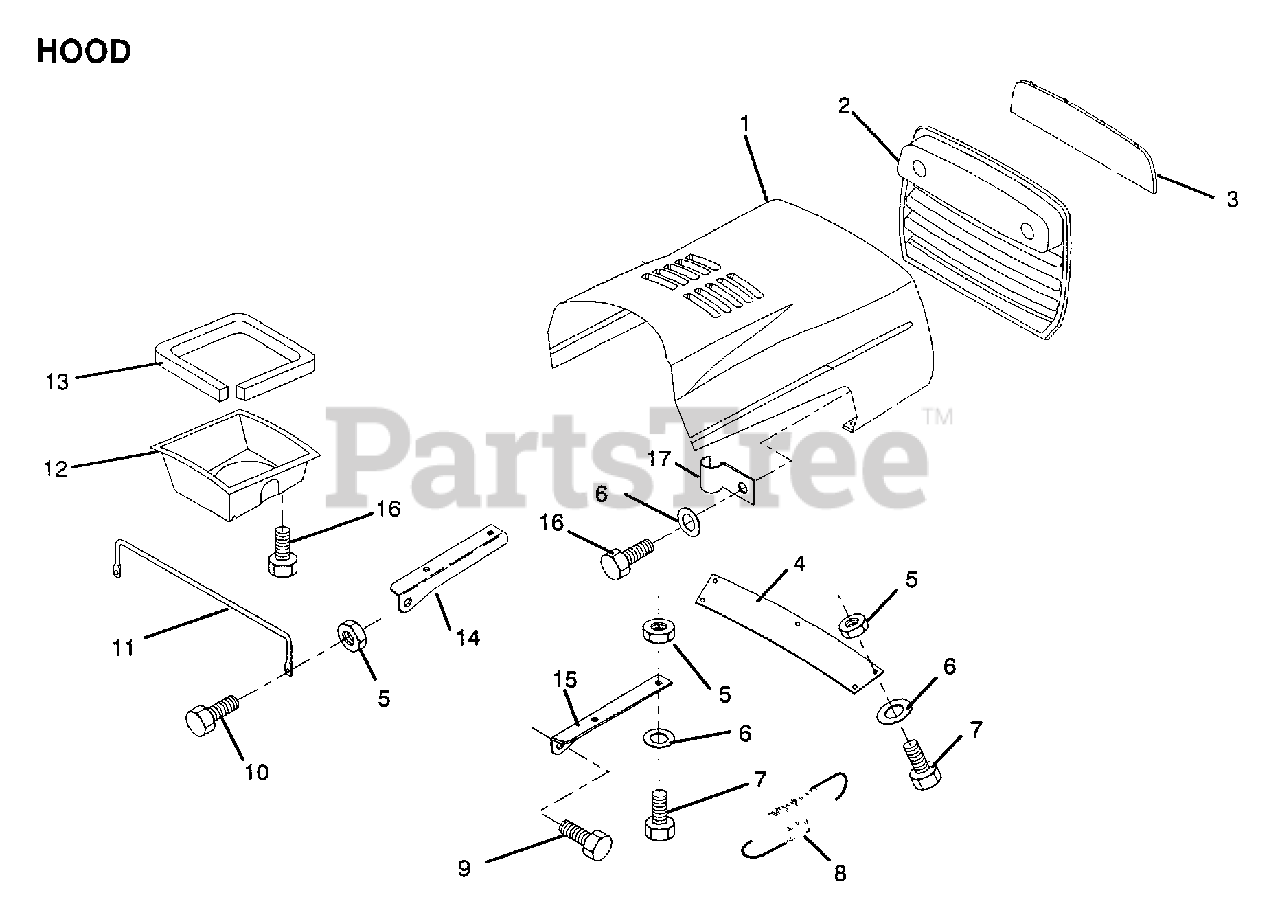

Y 1236 C - Electrolux/AYP Lawn Tractor (1991) HOOD Parts Diagram

Lawn Tractor

HOOD Parts Diagram

  • Title
1

Electrolux/AYP 122032X394

SUB= 132918X505

$

$

Not available

2

Electrolux/AYP 127029X

GRILL
(Superseded to 583672601)

$35.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 122035X

LENS
(Superseded to 532122035)

$14.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 122550X423

"STRAP,GRILL T"

$

$

Not available

5

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

6

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 74780410

BOLT
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 124657X

EXT SPRING
(Superseded to 532124657)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 126675X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

11

Electrolux/AYP 123693X

"BRACE,HOOD"
(Superseded to 532123693)

$

$

Not available

12

Electrolux/AYP 123840X

"DUCT,AIR"
(Superseded to 532123840)

$

$

Not available

13

Electrolux/AYP 120537X

FOAM STRIP LT
(Superseded to 532120537)

$

$

Not available

14

Electrolux/AYP 122548X

BRKT HOOD LH
(Superseded to 532122548)

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 122549X

BRKT HOOD RH
(Superseded to 532122549)

$

$

Not available

16

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

17

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

Electrolux/AYP 126860X

"DECAL,LIGHT BOX"
(Superseded to 532126860)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available
