Y 10L36 B - Electrolux/AYP Lawn Tractor (1993) TRANSAXLE Parts Diagram

Lawn Tractor

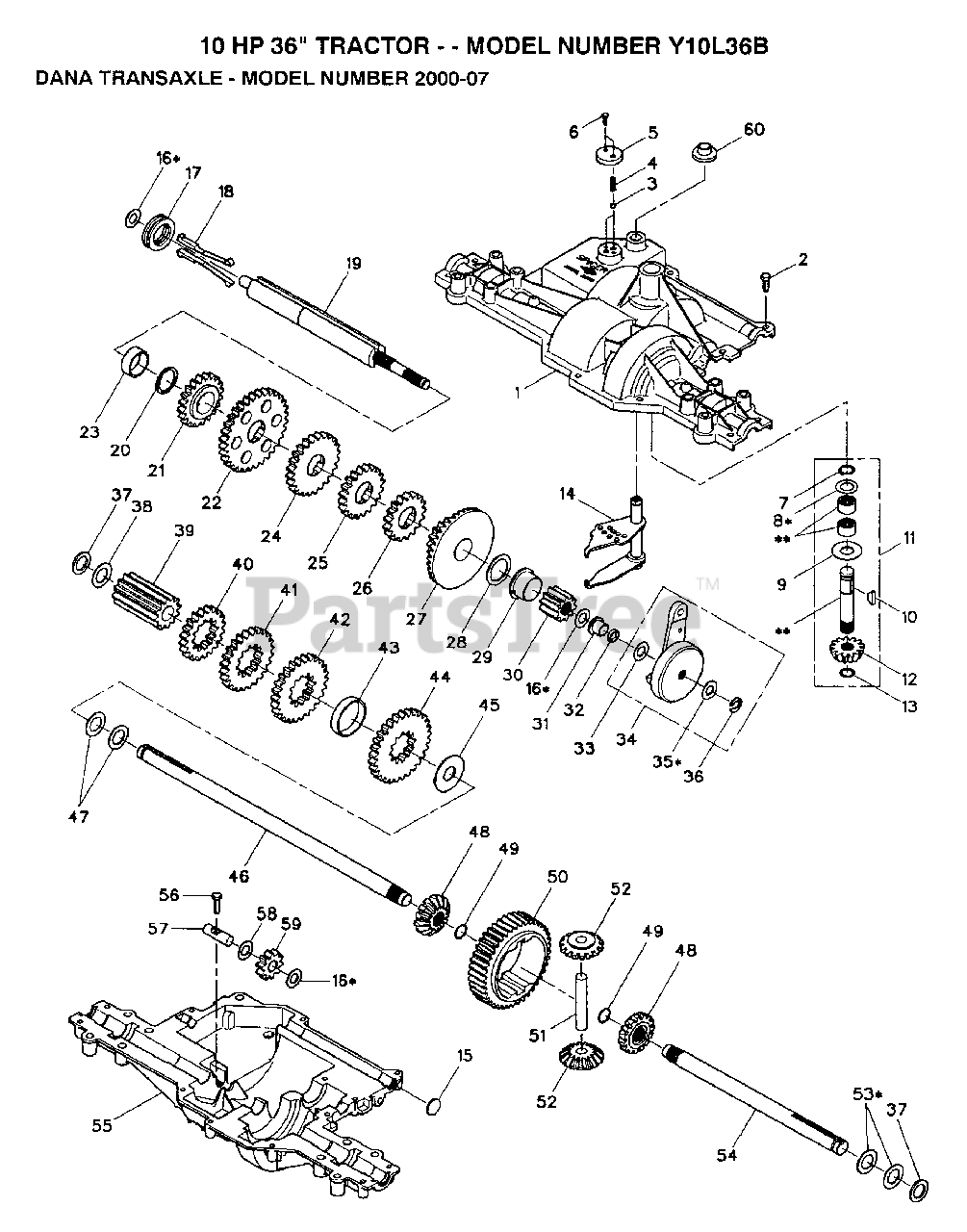

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 139171

HOUSING. UPPER

$

$

Not available

2

Electrolux/AYP 2274J

SUB= 74760412

$

$

Not available

3

Electrolux/AYP 134400

SUB= 68003

$

$

Not available

4

Electrolux/AYP 134423

SPRING, DETENT

$

$

Not available

5

Electrolux/AYP 134422

COVER, DETENT

$

$

Not available

6

Electrolux/AYP 6731J

SCREW, TAPPING, LARGE #8-32 X .50

$

$

Not available

7

Electrolux/AYP 2267J

RETAINING RING LT
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

8

Electrolux/AYP 134793

ASM KIT SHIM 4689
(Superseded to 532134793)

$

$

Not available

9

Electrolux/AYP 120415X

WASHER T
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 2257J

WOODRUFF KEY

$

$

Not available

11

Electrolux/AYP 134390

ASSEMBLY, KIT, INPUT SHAFT

$

$

Not available

12

Electrolux/AYP 134381

PINION,, BEVE, 13 TEETH

$

$

Not available

13

Electrolux/AYP 134383

RING, RETAINING

$

$

Not available

14

Electrolux/AYP 134387

ASSEMBLY, SHIFTER

$

$

Not available

15

Electrolux/AYP 134428

SEAL

$

$

Not available

16

Electrolux/AYP 134393

ASSEMBLY, KIT, SHIM, .500 SHAFT

$

$

Not available

17

Electrolux/AYP 105913X

SUB= 138246

$

$

Not available

18

Electrolux/AYP 134391

ASSEMBLY, KIT, CLUTCH KEYS

$

$

Not available

19

Electrolux/AYP 134415

SHAFT, DRIVE

$

$

Not available

20

Electrolux/AYP 105916X

"RING,RETAINING LT"
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 134409

GEAR, SPUR, 20 TEETH

$

$

Not available

22

Electrolux/AYP 134408

GEAR , SPUR, 32 TEETH

$

$

Not available

23

Electrolux/AYP 134432

SPACER 1.130X1.330X.465

$

$

Not available

24

Electrolux/AYP 134406

GEEAR, SPUR, 24 TEETH

$

$

Not available

25

Electrolux/AYP 134403

GEAR, SPUR, 20 TEETH

$

$

Not available

26

Electrolux/AYP 134402

GEAR, SPUR, 17 TEETH

$

$

Not available

27

Electrolux/AYP 134431

GEAR BEVEL 39 & SPUR 15

$

$

Not available

28

Electrolux/AYP 134429

WASHER, PLAIN 1,135 X 1.56 X .062

$

$

Not available

29

Electrolux/AYP 134421

BEARING, FLANGE

$

$

Not available

30

Electrolux/AYP 134418

GEAR, SPUR, 10 TEETH
(Superseded to 582949601)

$17.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 134420

BEARING, FLANGE

$

$

Not available

32

Electrolux/AYP 134439

SEAL

$

$

Not available

33

Electrolux/AYP 120464X

WASHER T
(Superseded to 583662601)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 139166

ASSEMBLY, KIT CONE BRAKE

$

$

Not available

35

Electrolux/AYP 134395

ASSEMBLY, KIT, SHAM .464 SHAFT

$

$

Not available

36

Electrolux/AYP 134438

KLIP RING

$

$

Not available

37

Electrolux/AYP 134401

NEOPRENE WASHER
(Superseded to 532134401)

$

$

Not available

38

Electrolux/AYP 2263J

WASHER 062
(Superseded to 583729601)

$6.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 134411

GEAR, SPUR, 12 TEETH

$

$

Not available

40

Electrolux/AYP 134380

GEAR, SPUR, 17 TEETH

$

$

Not available

41

Electrolux/AYP 134414

GEAR, SPUR, 24 TEETH

$

$

Not available

42

Electrolux/AYP 134413

GEAR, SPUR, 26 TEETH

$

$

Not available

43

Electrolux/AYP 134433

SPACER 1.710X1.910X.375

$

$

Not available

44

Electrolux/AYP 134412

GEAR SPUR, 29 TEETH

$

$

Not available

45

Electrolux/AYP 134382

WASHER, PLAIN, .758 X 1.88 X .062

$

$

Not available

46

Electrolux/AYP 139167

AXLE, L.H.

$

$

Not available

47

Electrolux/AYP 2264J

WASHER 031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 110081X

GEAR 15T T
(Superseded to 532169651)

$

$

Not available

49

Electrolux/AYP 105941X

"RING,RETAINING LT"
(Superseded to 583647801)

$

$

Not available

50

Electrolux/AYP 134419

GEAR, SPUR, 41 TEETH
(Superseded to 582949701)

$

$

Not available

51

Electrolux/AYP 120952X

SHAFT T
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 110082X

GEAR 1ST T
(Superseded to 532169651)

$

$

Not available

53

Electrolux/AYP 134394

ASM KIT SHIM
(Superseded to 532134394)

$

$

Not available

54

Electrolux/AYP 139168

AXLE, R.H.

$

$

Not available

55

Electrolux/AYP 139169

HOUSING, LOWER

$

$

Not available

56

Electrolux/AYP 2274J

SUB= 74760412

$

$

Not available

57

Electrolux/AYP 134385

SHAFT, IDLER

$

$

Not available

58

Electrolux/AYP 120465X

WASHER T
(Superseded to 583662701)

$2.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 139170

GEAR, SPUR, 10 TEETH

$

$

Not available

60

Electrolux/AYP 134399

SHIFTER BOOT

$

$

Not available

61

Electrolux/AYP 120416X

SUB= 126976X

$

$

Not available
