XTX775-3153 - Kohler XTX Series Engine, Made for PEMSA, 7.75 ft-lbs, 173cc 02 CrankCase Parts Diagram

XTX Series Engine, Made for PEMSA, 7.75 ft-lbs, 173cc

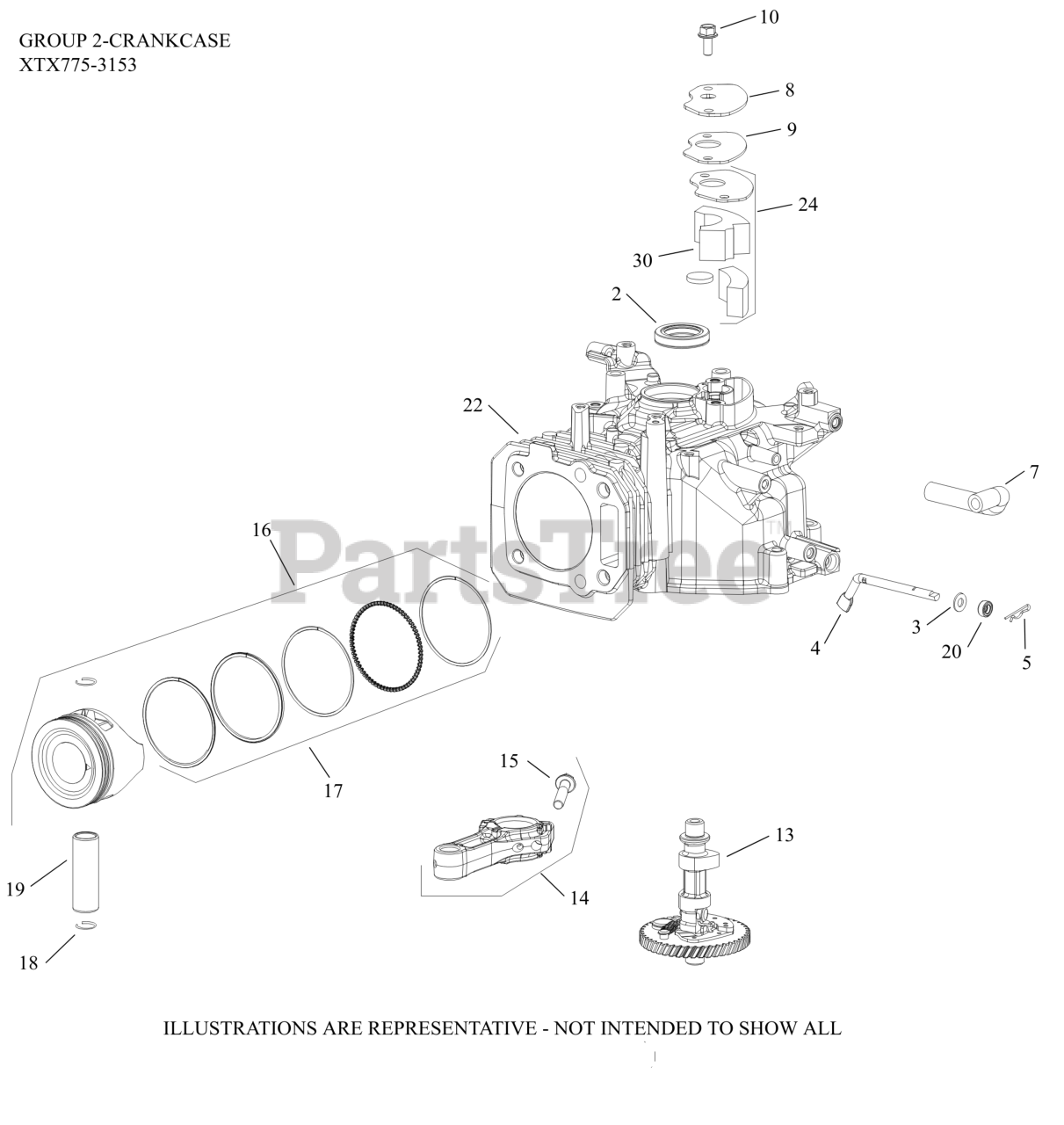

02 CrankCase Parts Diagram

  • Title

2

Kohler 14 032 02-S

SEAL, CCASE/FLYWHEEL

$9.49

$

In Stock, only 4 left!

0

3

Kohler 14 468 30-S

WASHER, FLAT (DIA 13mm O.D.)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 14 144 02-S

SHAFT, GOVERNOR CROSS

$11.99

$

Usually ships in 2-5 days

0

5

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.49

$

In Stock, only 1 left!

0

7

Kohler 14 123 05-S

HOSE, BREATHER

$5.49

$

In Stock, only 4 left!

0

8

Kohler 14 096 125-S

COVER, BREATHER

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 14 041 30-S

GASKET, BREATHER COVER

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

13

Kohler 14 010 13-S

CAMSHAFT ASSEMBLY

$48.99

$

Usually ships in 2-5 days

0

14

Kohler 14 067 01-S

CONNECTING ROD

$49.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 150-S

SCREW, HEX FLANGE (M7)

$2.49

$

In Stock, only 2 left!

0

16

Kohler 14 874 03-S

KIT, PISTON

$70.99

$

Usually ships in 2-5 days

0

17

Kohler 14 108 02-S

RING SET

$31.99

$

Usually ships in 2-5 days

0

18

Kohler 14 018 03-S

RETAINER, PISTON PIN

$3.49

$

Usually ships in 2-5 days

0

19

Kohler 14 380 04-S

PIN, PISTON

$3.99

$

Usually ships in 2-5 days

0

20

Kohler 14 032 04-S

SEAL, OIL

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 14 561 24-S

CRANKCASE

$126.99

$

Usually ships in 2-5 days

0

24

Kohler 14 050 31-S

KIT, BREATHER FILTER

$7.99

$

Usually ships in 2-5 days

0

30

Kohler 14 050 32-S

FILTER, BREATHER MEDIA-USE 14 050 31-S

$

$

Currently unavailable
