XTX775-3152 - Kohler XTX Series Engine, Made for Lofra, 7.75 ft-lbs, 173cc 09 Engine Controls Parts Diagram

XTX Series Engine, Made for Lofra, 7.75 ft-lbs, 173cc

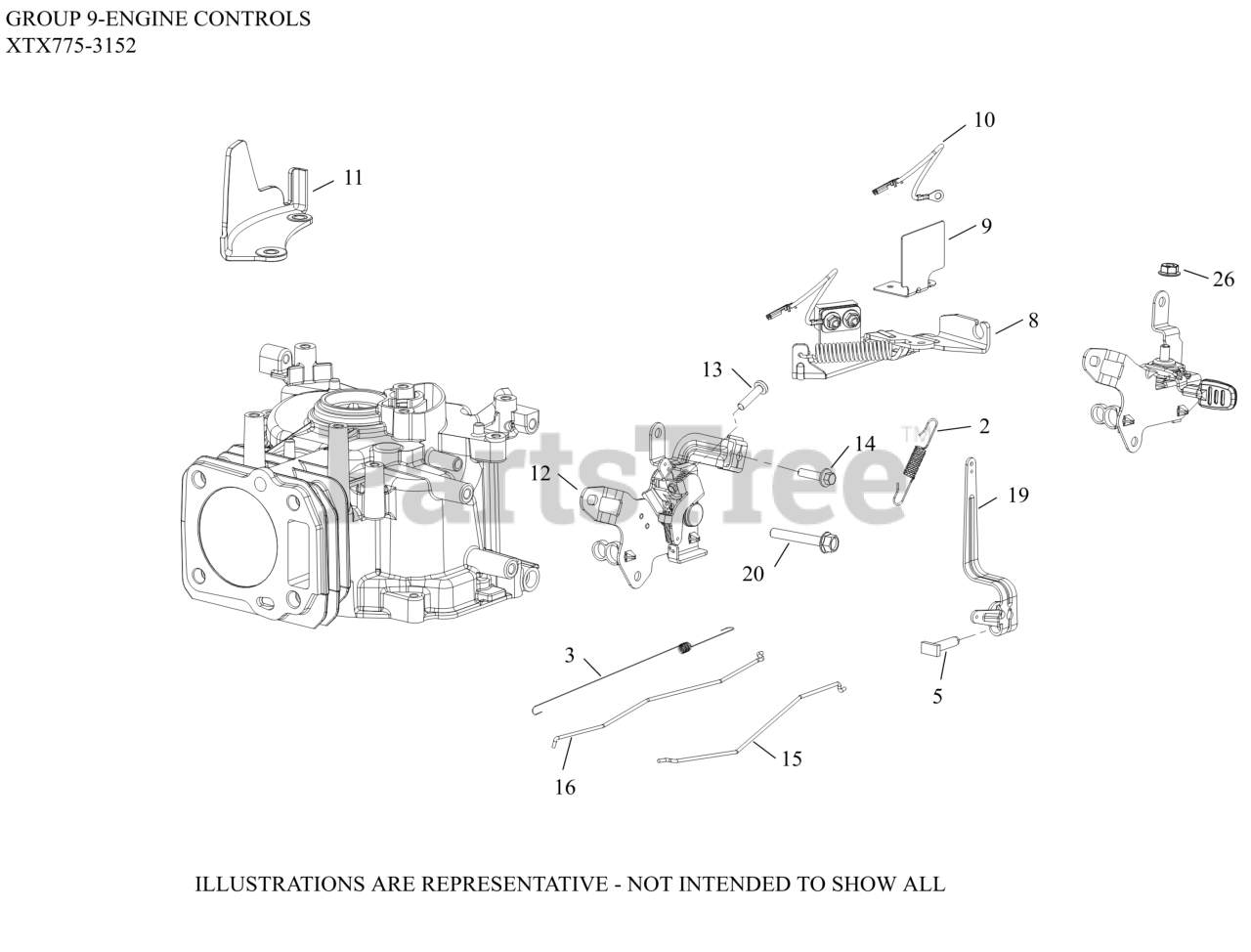

09 Engine Controls Parts Diagram

  • Title

2

Kohler 14 089 14-S

SPRING, GOV (2800-3300 RPM)

$5.49

$

In Stock, Qty 8

0

3

Kohler 14 089 43-S

SPRING, LINKAGE

$5.49

$

Usually ships in 2-5 days

0

5

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 2 left!

0

8

Kohler 14 219 21-S

BRAKE ASSEMBLY

$23.99

$

In Stock, Qty 5

0

9

Kohler 14 314 17-S

GUARD, BRAKE - USE 14 314 30-S
(Superseded to 14 314 30-S)

$

$

Not available

10

Kohler 14 518 29-S

LEAD, KILL (BRAKE TO IGN. MODULE)

$4.49

$

Usually ships in 2-5 days

0

11

Kohler 14 314 25-S

GUARD, FINGER

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 14 536 08-S

CONTROL ASSEMBLY (VAR. SPEED)

$15.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 165-S

SCREW, #25 6-LOBE PAN HD (M5)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 086 232-S

SCREW, (M5) HEX FLANGE

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 14 079 24-S

LINKAGE, CHOKE-(#DSC)

$

$

Not available

16

Kohler 14 079 23-S

LINKAGE, GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

19

Kohler 14 090 46-S

LEVER, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 307-S

SCREW, HEX FLANGE (M6)

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 3 left!

0
