XTX775-3150 - Kohler XTX Series Engine, Made for Outils Wolf, 7.75 ft-lbs, 173cc 09 Engine Controls Parts Diagram

XTX Series Engine, Made for Outils Wolf, 7.75 ft-lbs, 173cc

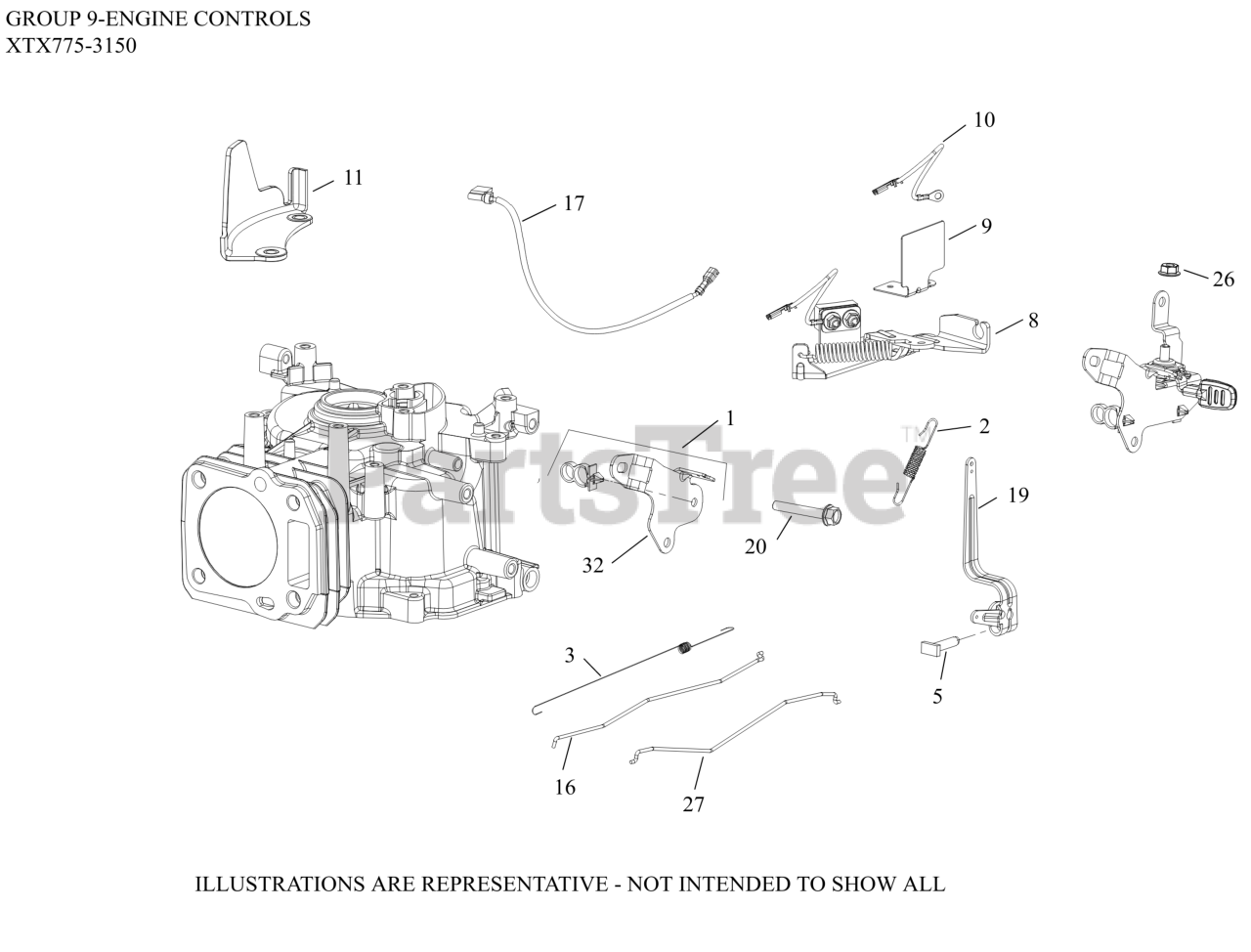

09 Engine Controls Parts Diagram

  • Title

1

Kohler 14 126 81-S

BRACKET ASSEMBLY, FIXED SPEED CONTROL

$9.99

$

Usually ships in 2-5 days

0

2

Kohler 14 089 70-S

SPRING, EXTENSION (GOVERNOR)

$6.49

$

Usually ships in 2-5 days

0

3

Kohler 14 089 43-S

SPRING, LINKAGE

$5.99

$

In Stock, only 3 left!

0

5

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 1 left!

0

8

Kohler 14 219 21-S

BRAKE ASSEMBLY

$25.99

$

In Stock, only 2 left!

0

9

Kohler 14 314 17-S

GUARD, BRAKE - USE 14 314 30-S
(Superseded to 14 314 30-S)

$

$

Not available

10

Kohler 14 518 29-S

LEAD, KILL (BRAKE TO IGN. MODULE)

$4.99

$

Usually ships in 2-5 days

0

11

Kohler 14 314 25-S

GUARD, FINGER

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 14 079 13-S

LINKAGE, GOVERNOR - USE 14 079 30-S
(Superseded to 14 079 30-S)

$5.49

$

Usually ships in 2-5 days

0

19

Kohler 14 090 46-S

LEVER, GOVERNOR

$6.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 307-S

SCREW, HEX FLANGE (M6)

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, Qty 20+

0

27

Kohler 14 079 04-S

LINKAGE, CHOKE

$5.49

$

In Stock, only 2 left!

0

32

Kohler 14 126 84-S

BRACKET, FIXED SPPED - DISCONTINUED

$

$

Not available
