XTX775-3150 - Kohler XTX Series Engine, Made for Outils Wolf, 7.75 ft-lbs, 173cc 08 Fuel System Parts Diagram

XTX Series Engine, Made for Outils Wolf, 7.75 ft-lbs, 173cc

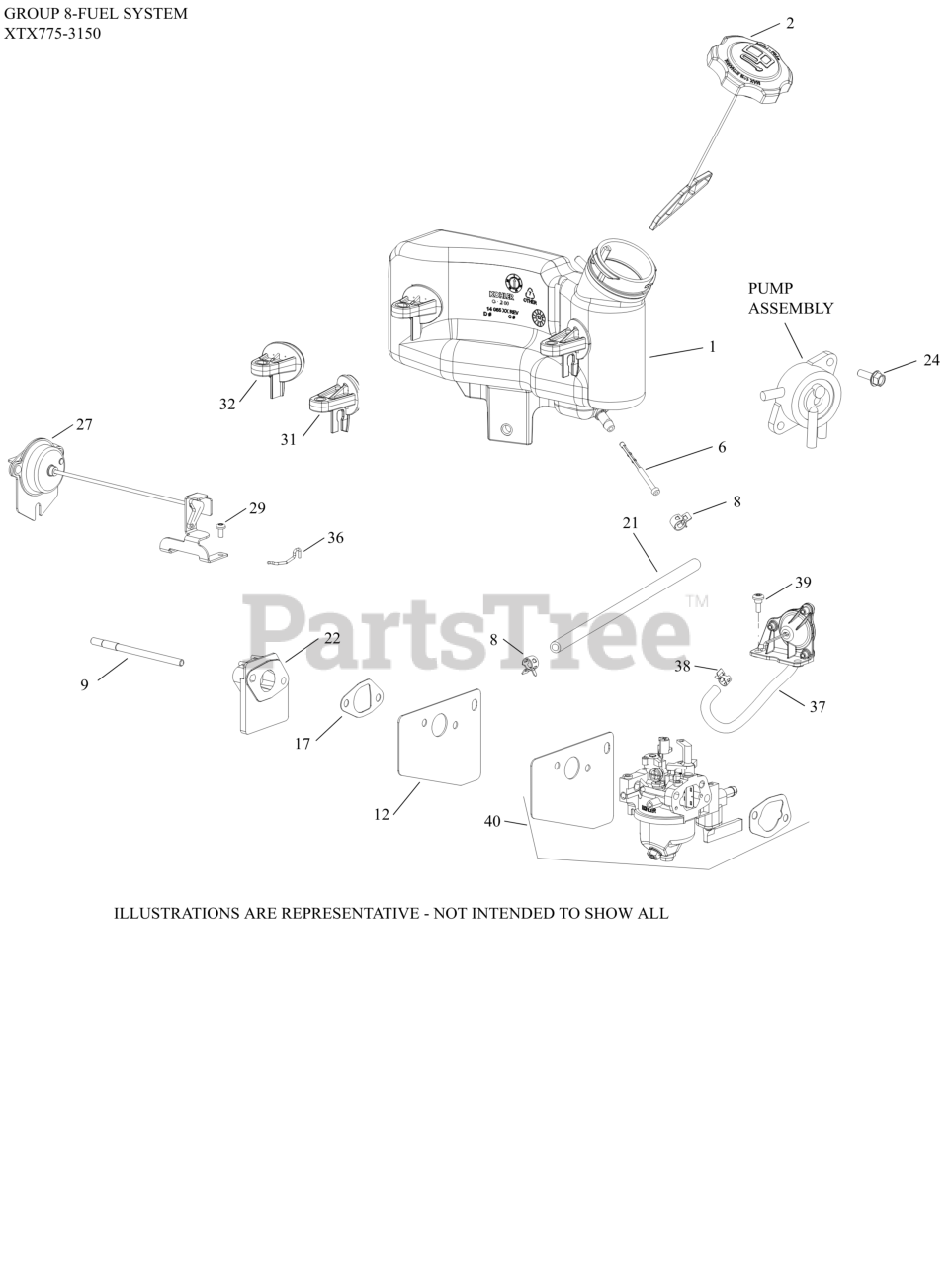

08 Fuel System Parts Diagram

  • Title
1

Kohler 14 065 72-S

TANK, FUEL

$49.99

$

Usually ships in 2-5 days

0

2

Kohler 14 227 26-S

FUEL CAP ASSEMBLY

$30.99

$

In Stock, only 1 left!

0

6

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$6.99

$

In Stock, Qty 14

0

8

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$2.49

$

In Stock, Qty 14

0

9

Kohler 14 072 23-S

STUD,M6X1.0X100.2MM

$4.99

$

In Stock, only 2 left!

0

12

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$13.99

$

In Stock, Qty 6

0

17

Kohler 17 041 03-S

KIT, INTAKE GASKET

$10.99

$

In Stock, Qty 8

0

21

Kohler 25 111 102-S

HOSE, FUEL LOW-PERMEATION

$8.49

$

Usually ships in 2-5 days

0

22

Kohler 14 112 09-S

KIT, SPACER

$16.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 459-S

SCREW, HEX FLANGE (M6)

$2.49

$

Usually ships in 2-5 days

0

27

Kohler 14 187 15-S

ARM ASSY,AUTO CHOKE-USE 14 187 18-S
(Superseded to 14 187 18-S)

$28.99

$

Usually ships in 2-5 days

0

29

Kohler 25 086 277-S

SCREW, M4 THRD FRMNG-(#25086439S)
(Superseded to 25 086 439-S)

$2.49

$

In Stock, Qty 11

0

31

Kohler 14 126 79-S

BRACKET, FUEL TANK

$

$

Not available

32

Kohler 14 126 78-S

BRACKET, FUEL TANK

$

$

Not available

36

Kohler 14 079 17-S

LINKAGE, AUTO CHOKE
(Superseded to 14 079 26-S)

$4.99

$

In Stock, only 4 left!

0

37

Kohler 14 268 04-S

DIAPHRAGM, ASSEMBLY

$19.99

$

In Stock, only 1 left!

0

38

Kohler 14 237 05-S

CLAMP, HOSE

$2.49

$

In Stock, Qty 5

0

39

Kohler 25 086 275-S

SCREW, SHOULDER-(#25086440S)
(Superseded to 25 086 440-S)

$2.49

$

In Stock, only 2 left!

0

40

Kohler 14 853 59-S

KIT, CARBURETOR 13 MM AUTO CHOKE

$44.99

$

In Stock, only 1 left!

0

NI

Kohler 14 755 21-S

KIT, HIGH ALTITUDE - USE 14 755 04-S
(Superseded to 14 755 04-S)

$16.99

$

Usually ships in 2-5 days

0

NI

Kohler 14 757 03-S

KIT, CARBURETOR REPAIR (RUIXING)

$15.99

$

In Stock, Qty 11

0
