XTX775-3148 - Kohler XTX Series Engine, Made for CPT, 7.75 ft-lbs, 173cc 09 Engine Controls Parts Diagram

XTX Series Engine, Made for CPT, 7.75 ft-lbs, 173cc

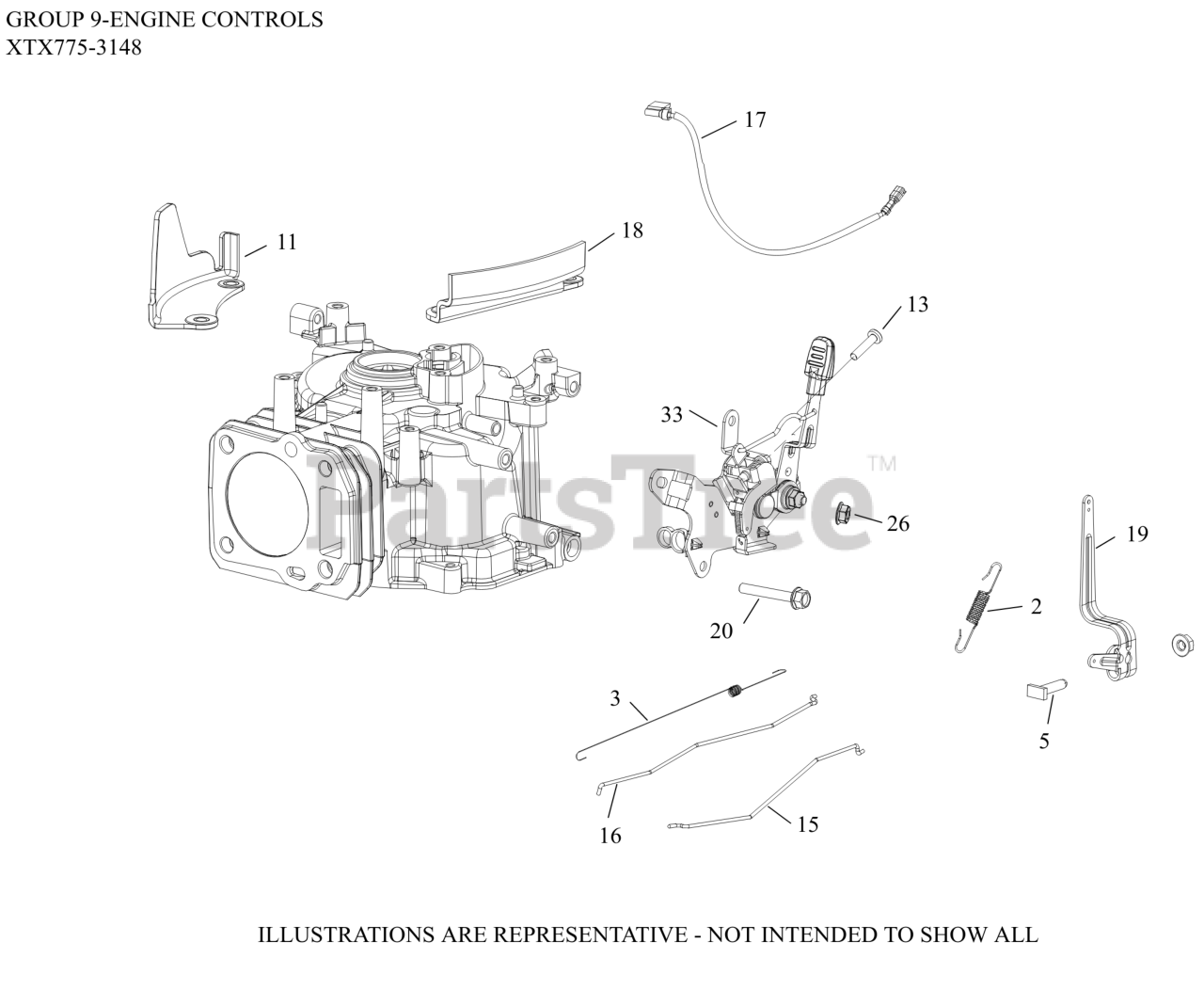

09 Engine Controls Parts Diagram

  • Title

2

Kohler 14 089 14-S

SPRING, GOV (2800-3300 RPM)

$5.49

$

In Stock, Qty 8

0

3

Kohler 14 089 43-S

SPRING, LINKAGE

$5.49

$

Usually ships in 2-5 days

0

5

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 2 left!

0

11

Kohler 14 314 25-S

GUARD, FINGER

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 165-S

SCREW, #25 6-LOBE PAN HD (M5)

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 14 079 15-S

LINKAGE, CHOKE

$4.99

$

Usually ships in 2-5 days

0

16

Kohler 14 079 09-S

LINKAGE, GOVERNOR

$4.99

$

In Stock, only 2 left!

0

17

Kohler 14 518 16-S

LEAD

$4.49

$

Usually ships in 2-5 days

0

18

Kohler 14 314 24-S

GUARD, FINGER

$3.99

$

In Stock, only 1 left!

0

19

Kohler 14 090 46-S

LEVER, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 307-S

SCREW, HEX FLANGE (M6)

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 2 left!

0

33

Kohler 14 536 13-S

CNTRL ASSY,NON-REM VAR SPD W/CHK & KI

$26.99

$

In Stock, only 1 left!

0
