XTX775-3101 - Kohler XTX Series Engine, Made for Masport, 7.75 ft-lbs, 173cc Lubrication Parts Diagram

XTX Series Engine, Made for Masport, 7.75 ft-lbs, 173cc

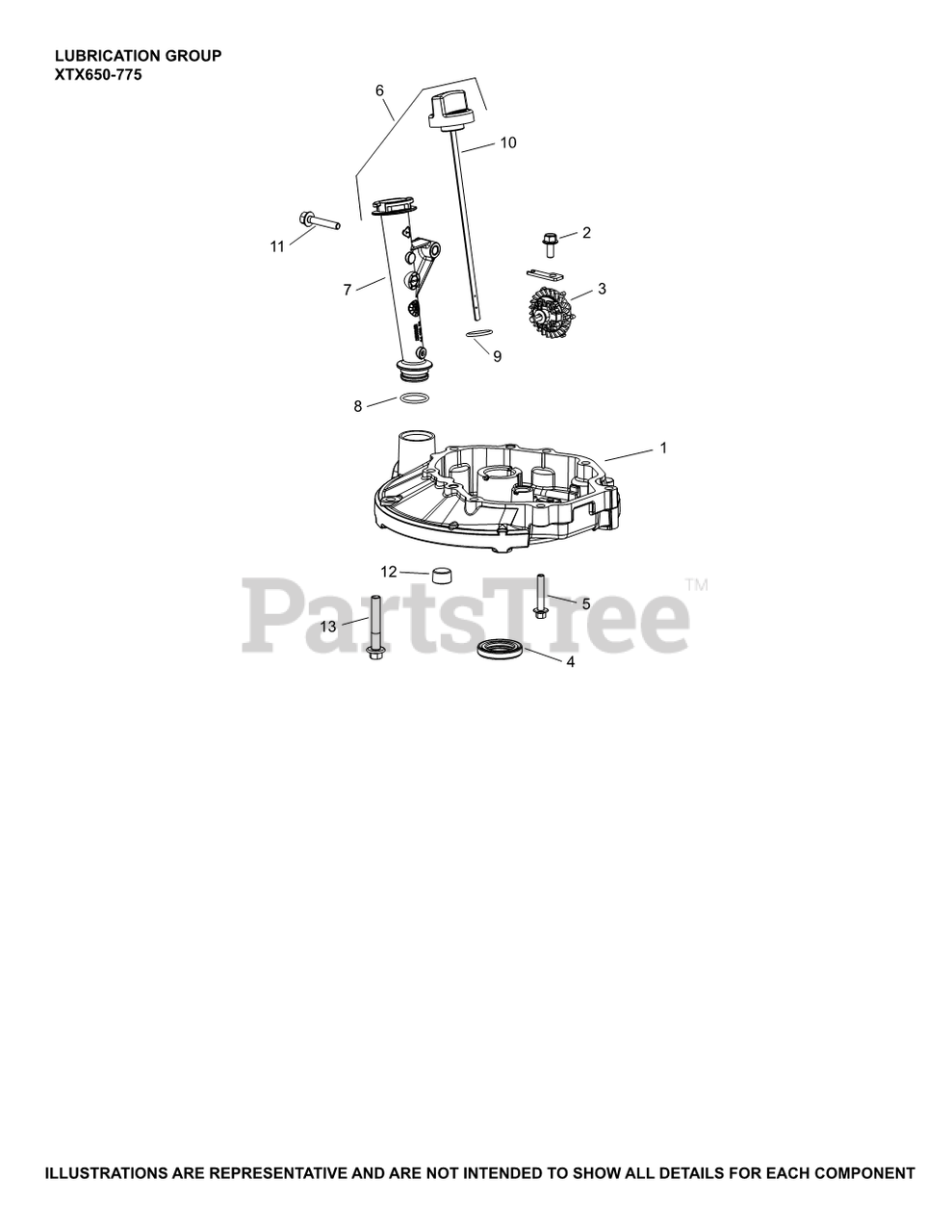

Lubrication Parts Diagram

  • Title

1

Kohler 14 199 32-S

KIT, OIL PAN

$86.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

3

Kohler 14 310 02-S

GEAR ASSEMBLY, GOVERNOR

$7.99

$

In Stock, only 1 left!

0

3

Kohler 17 310 01-S

GOVERNOR ASSEMBLY USE 17 310 08-S
(Superseded to 17 310 08-S)

$29.99

$

Usually ships in 2-5 days

0

4

Kohler 14 032 07-S

OIL SEAL

$9.49

$

In Stock, only 2 left!

0

6

Kohler 14 123 13-S

"PUSH-IN" DIPSTICK AND TUBE ASSEMBLY USE 14 123 20-S
(Superseded to 14 123 20-S)

$15.99

$

In Stock, only 2 left!

0

7

Kohler 14 123 26-S

TUBE ASSEMBLY, OIL FILL

$9.99

$

Usually ships in 2-5 days

0

8

Kohler 14 153 03-S

O-RING, OIL FILL TUBE

$2.99

$

In Stock, only 1 left!

0

9

Kohler 14 153 05-S

O-RING (CAP)

$2.99

$

In Stock, only 1 left!

0

10

Kohler 14 227 22-S

CAP, DIPSTICK ASSEMBLY

$5.99

$

In Stock, only 2 left!

0

11

Kohler 25 086 145-S

SCREW, HEX FLANGE (M6) - USE 25 086 435-S
(Superseded to 25 086 435-S)

$2.49

$

In Stock, Qty 7

0

12

Kohler 14 139 02-S

PLUG, PIPE (W/SEALANT)

$9.49

$

Usually ships in 2-5 days

0

13

Kohler 25 086 161-S

SCREW, HEX FLANGE (M8) USE 25 086 456-S
(Superseded to 25 086 456-S)

$2.49

$

In Stock, only 4 left!

0
