XTX775-3058 - Kohler XTX Series Engine, Made for Fna, 7.75 ft-lbs, 173cc 05 Ignition/Charging Parts Diagram

XTX Series Engine, Made for Fna, 7.75 ft-lbs, 173cc

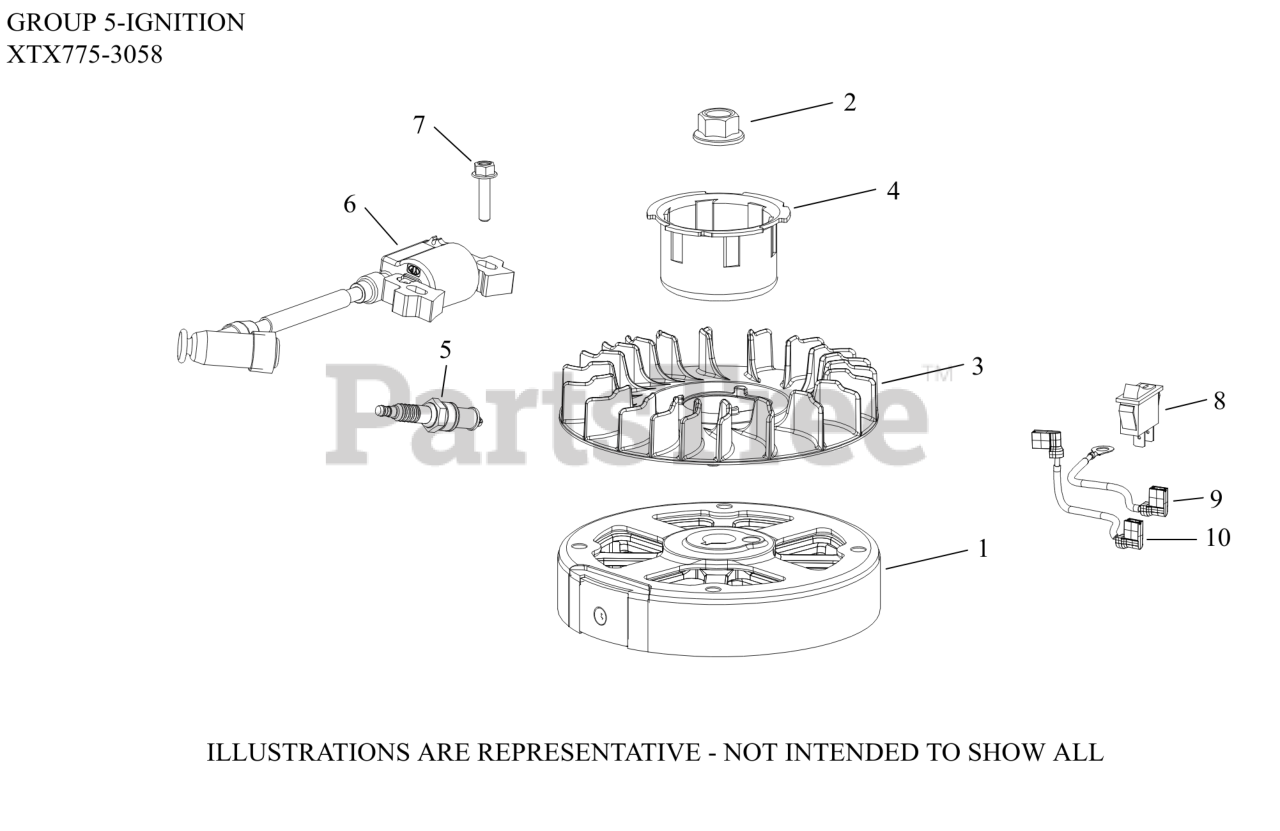

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 14 025 01-S

FLYWHEEL (CAST IRON)

$120.99

$

Usually ships in 2-5 days

0

2

Kohler 14 100 10-S

NUT, FLYWHEEL (W/SERRATIONS)

$5.49

$

In Stock, only 1 left!

0

3

Kohler 17 157 06-S

FAN, FLYWHEEL

$10.99

$

In Stock, only 2 left!

0

4

Kohler 14 109 02-S

CUP, DRIVE - (#1410905S)
(Superseded to 14 109 05-S)

$11.99

$

Usually ships in 2-5 days

0

5

Kohler 14 132 11-S

PLUG SPARK 12MM RFI

$8.49

$

In Stock, Qty 20+

0

6

Kohler 14 584 04-S

MODULE IGN (#1458416S)
(Superseded to 14 584 16-S)

$54.99

$

In Stock, only 1 left!

0

7

Kohler 25 086 186-S

SCREW, M6 X 25-(#25086436S)
(Superseded to 25 086 436-S)

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 14 099 07-S

SWITCH, ROCKER

$5.99

$

In Stock, only 1 left!

0

9

Kohler 14 518 24-S

LEAD,GROUND TO KILL (RCKR SWITCH)

$4.49

$

In Stock, only 1 left!

0

10

Kohler 14 518 25-S

LEAD, TOGGLE SWITCH KILL

$4.49

$

Usually ships in 2-5 days

0
