XTX675-3119 - Kohler XTX Series Engine, Made for Pemsa & Transdiesel, 6.75 ft-lbs, 149cc 02 CrankCase Parts Diagram

XTX Series Engine, Made for Pemsa & Transdiesel, 6.75 ft-lbs, 149cc

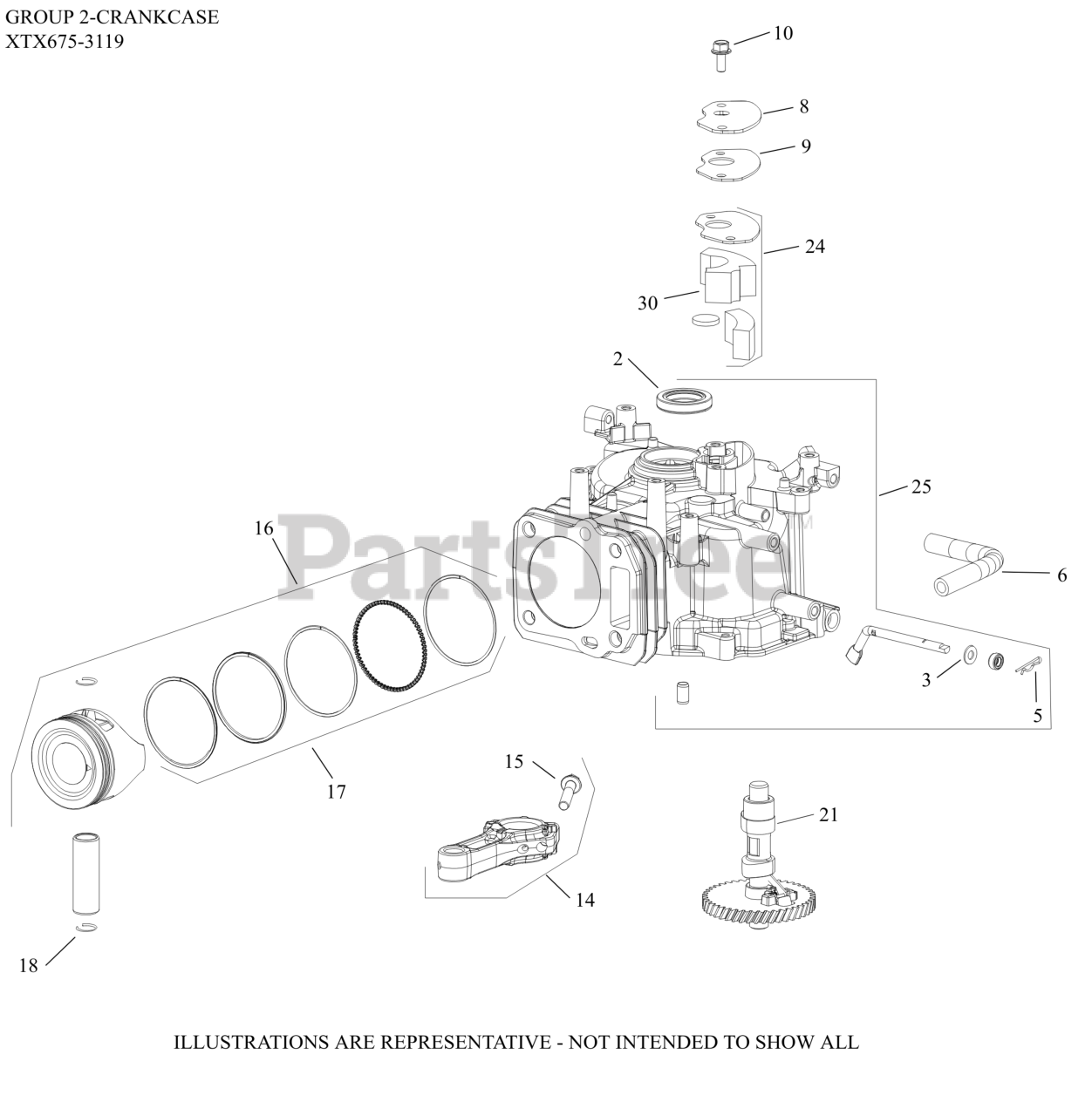

02 CrankCase Parts Diagram

  • Title

2

Kohler 14 032 02-S

SEAL, CCASE/FLYWHEEL

$9.49

$

In Stock, only 4 left!

0

3

Kohler 14 468 30-S

WASHER, FLAT (DIA 13mm O.D.)

$2.49

$

In Stock, only 1 left!

0

5

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.49

$

In Stock, only 1 left!

0

6

Kohler 14 123 19-S

HOSE, BREATHER

$5.49

$

Usually ships in 2-5 days

0

8

Kohler 14 096 125-S

COVER, BREATHER

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 14 041 30-S

GASKET, BREATHER COVER

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

14

Kohler 14 067 02-S

ROD, CONNECTING ASSEMBLY

$49.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 150-S

SCREW, HEX FLANGE (M7)

$2.49

$

In Stock, only 2 left!

0

16

Kohler 14 874 07-S

PISTON ASSEMBLY (SERVICE)

$72.99

$

In Stock, only 1 left!

0

17

Kohler 14 108 05-S

RING SET (SERVICE) (XT149)

$32.99

$

In Stock, only 2 left!

0

18

Kohler 14 018 11-S

RETAINER, PISTON PIN

$3.49

$

Usually ships in 2-5 days

0

21

Kohler 14 010 19-S

CAMSHAFT, ASSEMBLY

$46.99

$

Usually ships in 2-5 days

0

24

Kohler 14 050 31-S

KIT, BREATHER FILTER

$7.99

$

Usually ships in 2-5 days

0

25

Kohler 14 561 29-S

KIT, CRANKCASE

$120.99

$

Usually ships in 2-5 days

0

30

Kohler 14 050 32-S

FILTER, BREATHER MEDIA-USE 14 050 31-S

$

$

Currently unavailable
