XTX675-3116 - Kohler XTX Series Engine, Made for Toro, 6.75 ft-lbs, 149cc 08 Fuel System Parts Diagram

XTX Series Engine, Made for Toro, 6.75 ft-lbs, 149cc

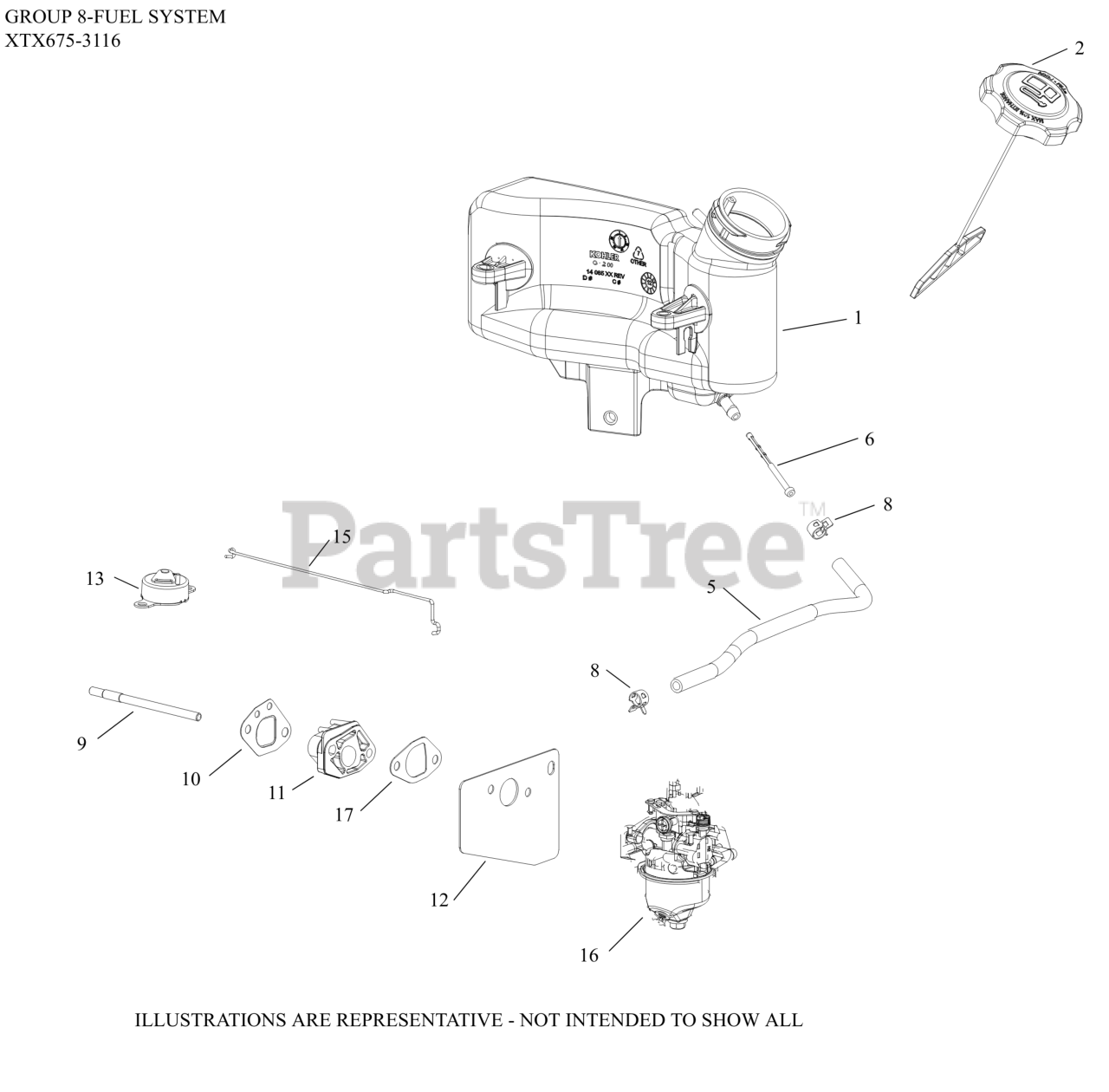

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 065 64-S

TANK, FUEL
(Superseded to 14 065 74-S)

$46.99

$

In Stock, only 1 left!

0

2

Kohler 14 227 26-S

FUEL CAP ASSEMBLY

$30.99

$

In Stock, only 1 left!

0

5

Kohler 25 111 69-S

HOSE, FUEL LOW-PERMEATION (CKY)

$9.49

$

In Stock, Qty 5

0

6

Kohler 14 050 14-S

FILTER, FUEL IN-NIPPLE

$6.99

$

In Stock, Qty 14

0

8

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$2.49

$

In Stock, Qty 14

0

9

Kohler 14 072 23-S

STUD,M6X1.0X100.2MM

$4.99

$

In Stock, only 2 left!

0

10

Kohler 14 041 16-S

GASKET, SPACER - USE 14 041 24-S
(Superseded to 14 041 31-S)

$13.99

$

In Stock, Qty 6

0

11

Kohler 14 112 27-S

SPACER, CARBURETOR

$5.49

$

In Stock, only 1 left!

0

12

Kohler 14 041 31-S

KIT, CARBURETOR HEAT SHIELD GASKET

$13.99

$

In Stock, Qty 6

0

13

Kohler 14 187 22-S

ARM ASSEMBLY, AUTO CHOKE

$28.99

$

In Stock, only 1 left!

0

15

Kohler 14 079 32-S

LINKAGE, AUTO CHOKE

$4.99

$

In Stock, only 1 left!

0

16

Kohler 14 853 119-S

KIT,CARB (HUAYI)

$44.99

$

Usually ships in 2-5 days

0

17

Kohler 17 041 03-S

KIT, INTAKE GASKET

$10.99

$

In Stock, Qty 8

0

NI

Kohler 14 757 04-S

KIT, CARBURETOR REPAIR (HUAYI)

$15.99

$

In Stock, only 4 left!

0

NI

Kohler 18 755 07-S

KIT, HIGH ALTITUDE 4000-8000'

$9.99

$

In Stock, only 1 left!

0
