XT800-3069 - Kohler Courage XT8 Series Engine, Made for MTD, 8.0 ft-lbs, 173cc Lubrication Group XT800-3069 Parts Diagram

Courage XT8 Series Engine, Made for MTD, 8.0 ft-lbs, 173cc

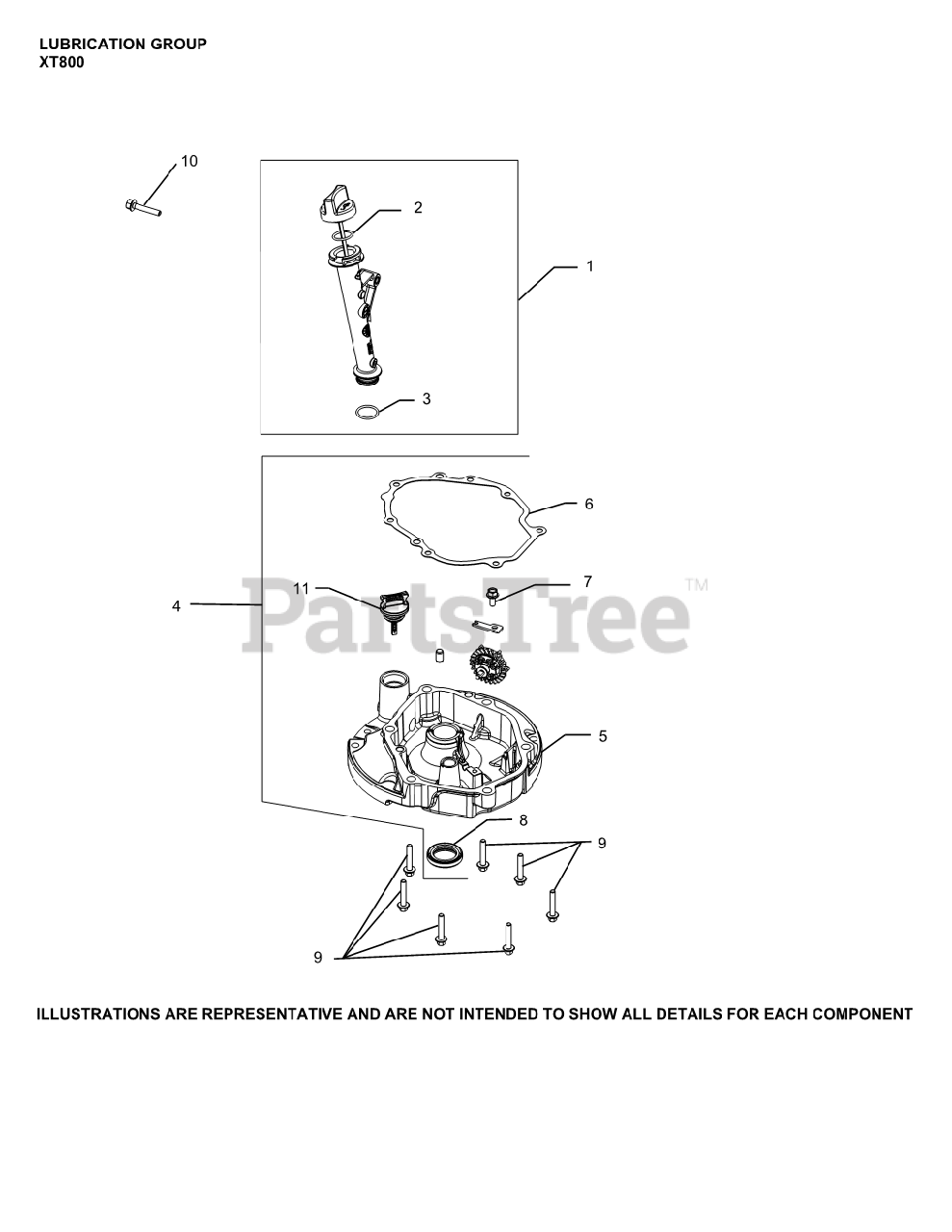

Lubrication Group XT800-3069 Parts Diagram

  • Title

1

Kohler 14 123 13-S

"PUSH-IN" DIPSTICK AND TUBE ASSEMBLY USE 14 123 20-S
(Superseded to 14 123 20-S)

$15.99

$

In Stock, only 1 left!

0

2

Kohler 14 153 05-S

O-RING (CAP)

$2.99

$

In Stock, only 1 left!

0

3

Kohler 14 153 03-S

O-RING, OIL FILL TUBE

$2.99

$

In Stock, only 1 left!

0

5

Kohler 14 199 32-S

KIT, OIL PAN

$86.99

$

Usually ships in 2-5 days

0

7

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

8

Kohler 14 032 07-S

OIL SEAL

$9.49

$

In Stock, only 1 left!

0

9

Kohler 25 086 161-S

SCREW, HEX FLANGE (M8) USE 25 086 456-S
(Superseded to 25 086 456-S)

$2.49

$

In Stock, only 4 left!

0

10

Kohler 25 086 145-S

SCREW, HEX FLANGE (M6) - USE 25 086 435-S
(Superseded to 25 086 435-S)

$2.49

$

In Stock, Qty 7

0
