XT675-3032 - Kohler XT Series Engine, Basic Version, 6.75 ft-lbs, 149cc 03 Lubrication Parts Diagram

XT Series Engine, Basic Version, 6.75 ft-lbs, 149cc

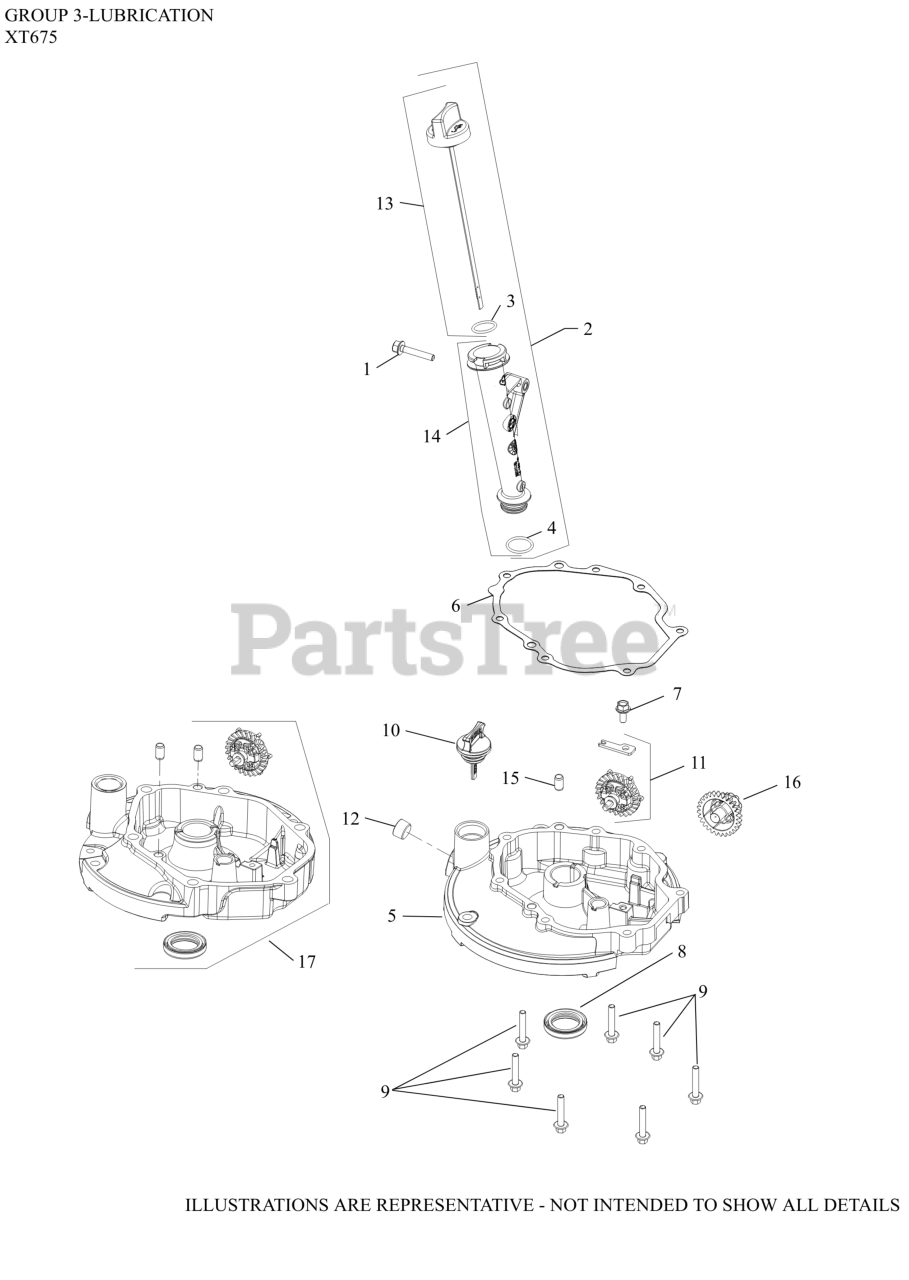

03 Lubrication Parts Diagram

  • Title

1

Kohler 25 086 145-S

SCREW, HEX FLANGE (M6)-(#25086435S)
(Superseded to 25 086 435-S)

$2.49

$

In Stock, Qty 7

0

2

Kohler 14 123 13-S

KIT, DIPSTICK AND TUBE-(#1412320S)
(Superseded to 14 123 20-S)

$15.99

$

In Stock, only 2 left!

0

3

Kohler 14 153 05-S

O-RING (CAP)

$2.99

$

In Stock, only 1 left!

0

4

Kohler 14 153 03-S

O-RING, OIL FILL TUBE

$2.99

$

In Stock, only 1 left!

0

5

Kohler 14 199 19-S

PAN, OIL

$86.99

$

Usually ships in 2-5 days

0

6

Kohler 14 041 28-S

GASKET, OIL PAN

$8.99

$

In Stock, only 1 left!

0

8

Kohler 14 032 07-S

OIL SEAL

$9.49

$

In Stock, only 2 left!

0

9

Kohler 25 086 293-S

SCREW, HEX FLANGE (M6)-(#25086434S)
(Superseded to 25 086 434-S)

$2.49

$

In Stock, Qty 9

0

11

Kohler 14 310 02-S

GEAR ASSEMBLY, GOVERNOR

$7.99

$

In Stock, only 1 left!

0

13

Kohler 14 227 22-S

CAP, DIPSTICK ASSEMBLY

$5.99

$

In Stock, only 2 left!

0

14

Kohler 14 123 26-S

TUBE ASSEMBLY, OIL FILL

$9.99

$

Usually ships in 2-5 days

0

15

Kohler 14 380 05-S

PIN, DOWEL (8MM)

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 17 310 01-S

GOVERNOR ASSEMBLY-USE 17 310 08-S
(Superseded to 17 310 08-S)

$29.99

$

Usually ships in 2-5 days

0
