XT3-GSX (14YD3LE-010) - Cub Cadet XT3 Enduro Garden Tractor (2016) Drive Parts Diagram

XT3 Enduro Garden Tractor

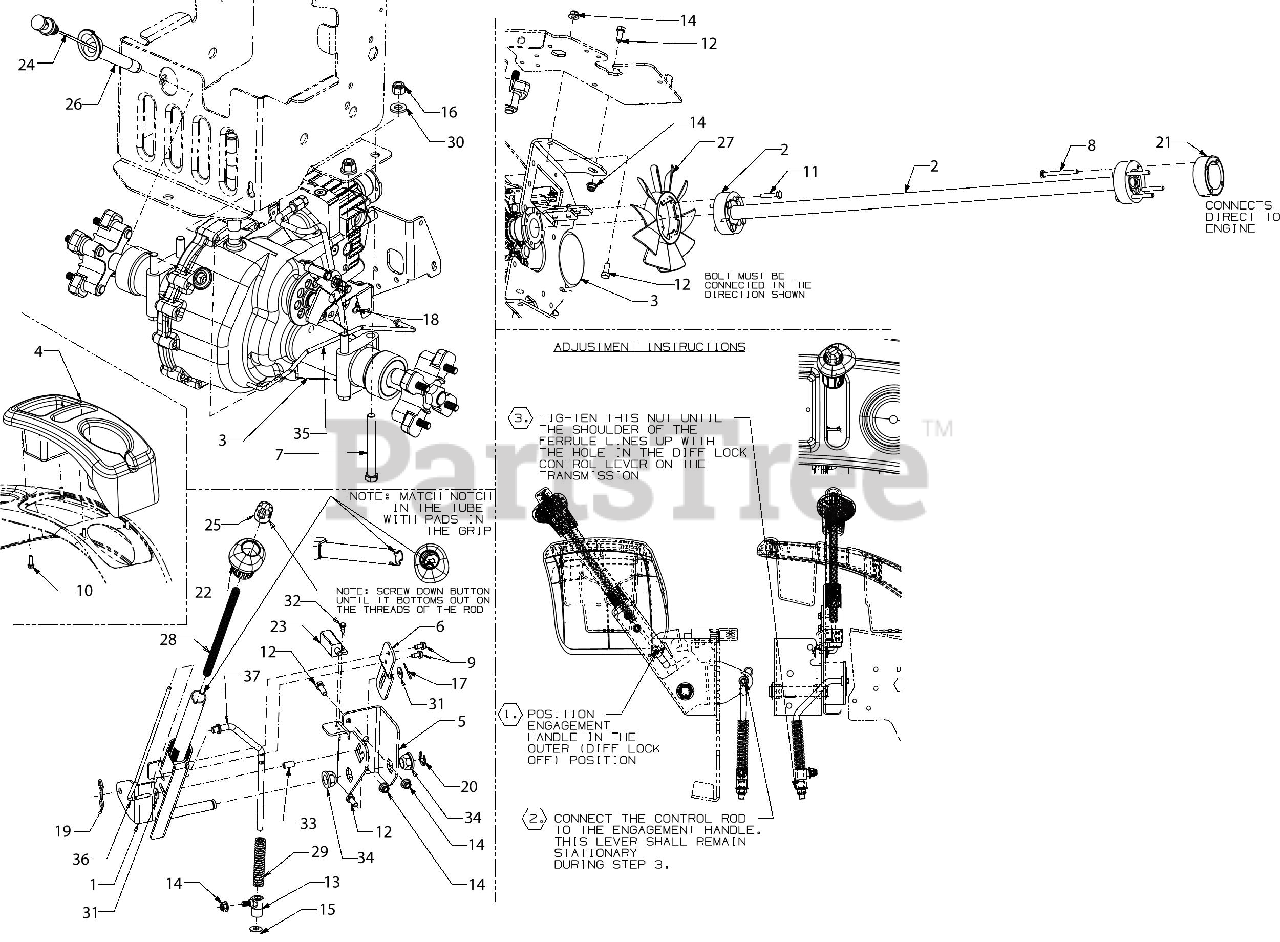

Drive Parts Diagram

  • Title
1

Cub Cadet 603-05212-0637

DIFF LOCK ENGAGE HANDLE ASSEMBLY

$152.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04993

DRIVE SHAFT ASSEMBLY 30.55

$296.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07213

SERVICE TRANSMISSION (W/O HUBS & PUMP)

Note: (See Transmission Page)

$2082.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-05320

CVR-CUP/DIF LOC FNDR (LH)

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09978-0637

HANDLE MOUNTING BRACKET

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10088-0637

DIFF LOCK BRACKET

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0465

SCREW 1/2-20 x 4.50 GR5

$11.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-04743

SCREW 1/4-20 x 2.50 GR5

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

11

Cub Cadet 710-1062

SCREW 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-06094A

SHOULDER FERRULE 3/8 ID x .420

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 16

0

17

Cub Cadet 914-0111

COTTER PIN-3/32
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 12

0

$5.49

$

In Stock, only 2 left!

0

21

Cub Cadet 718-04428A

DRIVE SHAFT ADAPTER

$60.99

$

In Stock, only 2 left!

0

$18.99

$

In Stock, only 3 left!

0

23

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 10

0

24

Cub Cadet 727-3148

TRANSMISSION DIPSTICK

$29.99

$

In Stock, only 1 left!

0

25

Cub Cadet 731-11023

DIFF LOCK HANDLE BUTTON

$9.49

$

In Stock, only 3 left!

0

26

Cub Cadet 731-3245

DIPSTICK HOLDER

$32.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3297

10 BLADE COOLING FAN

$37.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-05334

COMPRESSION SPRING .400 x 9.52 GSX

$10.99

$

In Stock, only 1 left!

0

29

Cub Cadet 732-05368

COMPRESSION SPRING .676 OD x 3.215 LG

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

31

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 11

0

32

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

33

Cub Cadet 738-05135A

SLEEVE SPACER .24X.37X.685

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 19

0

35

Cub Cadet 747-05509B

HYDRO PUMP RELEASE ROD

$37.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06498

DIFF LOCK BUTTON ROD

$31.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-06520

DIFF LOCK ENGAGEMENT ROD

$30.99

$

Usually ships in 3-6 days

0
