XT3-GSX (14AD3LE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Hood Assembly Parts Diagram

XT3 Enduro Garden Tractor

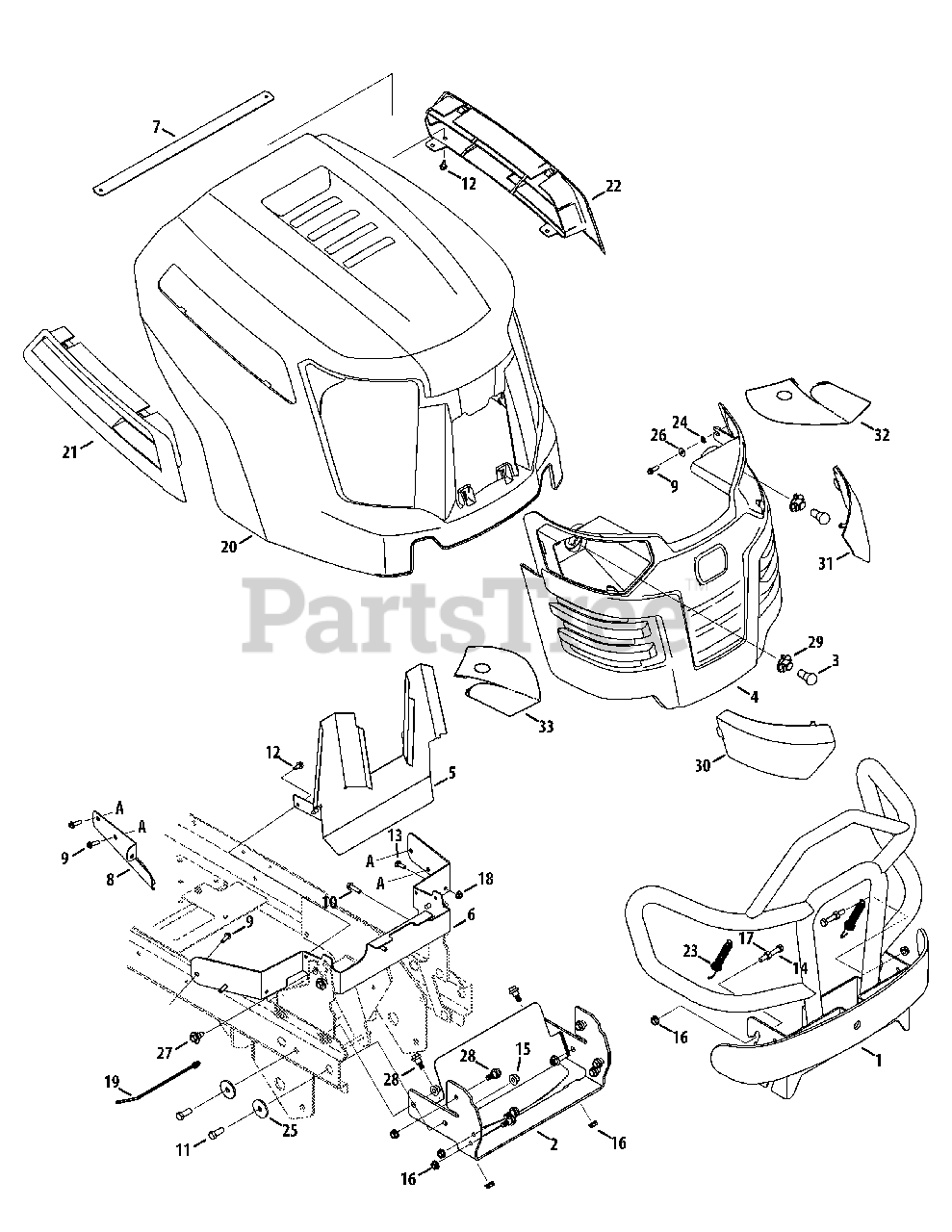

Hood Assembly Parts Diagram

  • Title

1

Cub Cadet 603-05222-4021

Front Bumper Assembly
(Superseded to 603-05222A-4021)

$613.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05225-4021

Brush Guard Assembly

$135.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 925-0963

Bulb

$7.49

$

In Stock, only 1 left!

0

4

Cub Cadet 931-04563A

Grill

$115.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08756

Heat Shield

$74.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08760-0637

Hood Pivot Bracket

$67.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08787A-0637

Cross Brace

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09959

Heat Shield
(Superseded to 703-09959A)

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3103

Hex Cap Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3027

Hex Flange Nut, 1/4-20

$4.49

$

In Stock, Qty 17

0

19

Cub Cadet 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 931-10675

Hood
(Superseded to 931-10675A)

$360.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 931-10763

RH Hood Scoop

$46.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-10764

LH Hood Scoop

$46.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-05323

Extension Spring, .54 OD X 5.0 LG

$9.49

$

In Stock, Qty 6

0

24

Cub Cadet 936-0222

Lock Washer, 1/4
(Superseded to 736-0222)

$

$

Not available

25

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

26

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

27

Cub Cadet 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 738-04141

Shoulder Bolt, .435 x .350, 5/16-18

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

30

Cub Cadet 931-07878

RH Hood Lens

$17.99

$

In Stock, only 1 left!

0

31

Cub Cadet 931-07879

LH Hood Lens

$17.99

$

In Stock, only 1 left!

0

32

Cub Cadet 777X44662

Left Lens Reflector Label

$13.99

$

In Stock, only 1 left!

0

33

Cub Cadet 777X44663

Right Lens Reflector Label

$13.99

$

In Stock, only 2 left!

0
