XT3-GSX (14AD3LE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Drive Assembly Parts Diagram

XT3 Enduro Garden Tractor

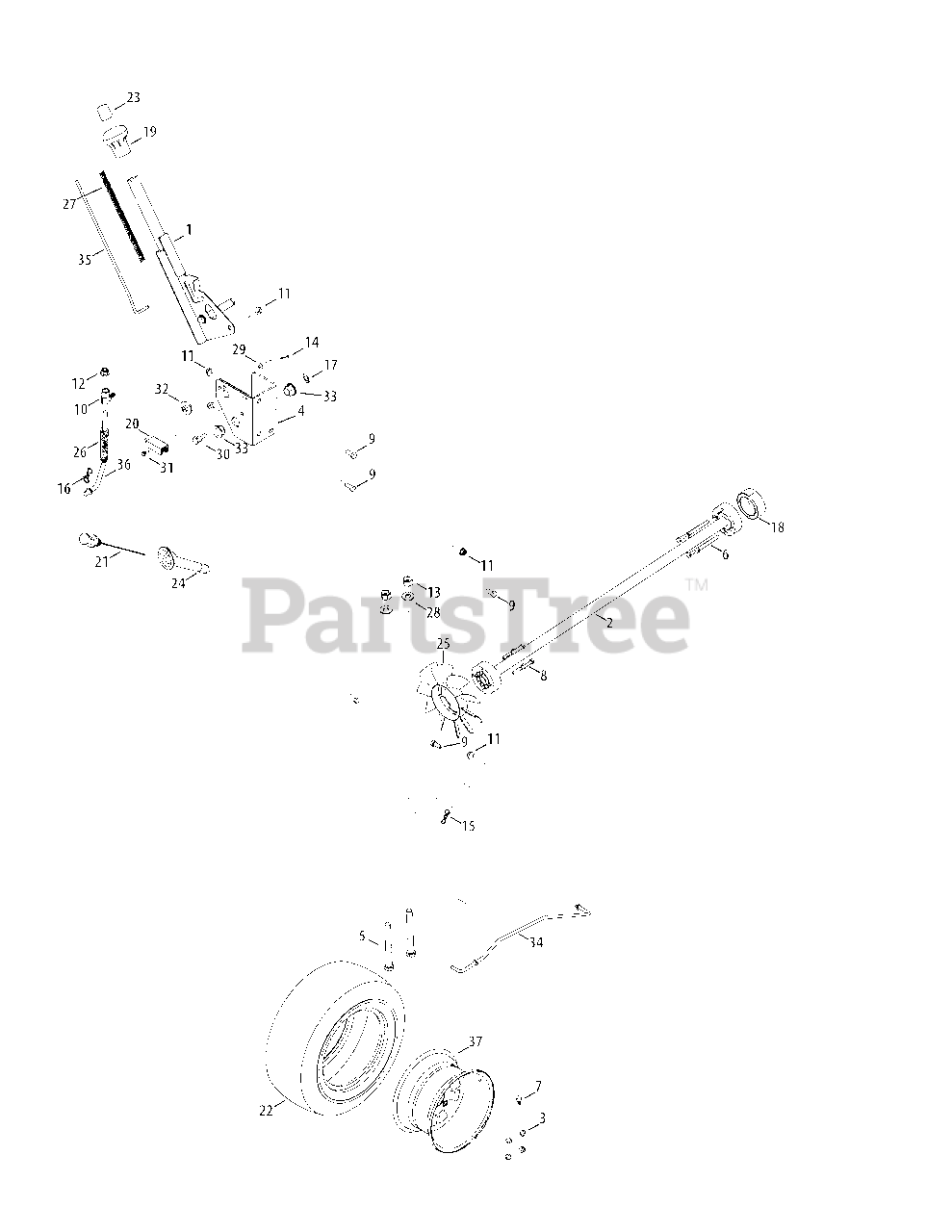

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 603-05212-0637

Engagement Handle Assembly

$152.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04993

Shaft Assembly, 30.55

$296.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 759-3764

Drive Barrel Kit

Note: (not shown)

$27.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-09978-0637

Control Mounting Bracket

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0465

Hex Screw, 1/2-20 x 4.50

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04743

Hex Screw, 1/4-20 x 2.50

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1062

Hex Screw, 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-06094A

Ferrule, 3/8 ID x .420 Shldr

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

14

Cub Cadet 914-0111

Cotter Pin 3/32" Dia. x 1" Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

15

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

17

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

18

Cub Cadet 718-04428A

Drive Shaft Adapter

$60.99

$

In Stock, only 2 left!

0

19

Cub Cadet 720-05100

Grip, 1.0 ID

$18.99

$

In Stock, only 3 left!

0

20

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 8

0

21

Cub Cadet 727-3148

Transaxle Dipstick

$29.99

$

In Stock, only 1 left!

0

22

Cub Cadet 734-05116-0901

Tire, 23.0 x 10.5 x 12

$327.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-11023

Grip, 1.0 OD x 1/4-20

$9.49

$

In Stock, only 3 left!

0

24

Cub Cadet 731-3245

Dipstick Holder

$32.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-3297

Pump Fan, 7.0

$37.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-05075

Compression Spring, .45 x 3.215

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 732-3097

Compression Spring

$14.99

$

In Stock, only 4 left!

0

28

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

29

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

30

Cub Cadet 738-0138A

Shoulder Screw, .437 x .470, 5/16-18

$6.99

$

In Stock, only 2 left!

0

31

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

32

Cub Cadet 738-05135

Shoulder Spacer, .24 ID x .37/.5 OD

$6.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

34

Cub Cadet 747-05509B

Hydro Relief Lever

$37.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-06498

Control Rod

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06520

Engagement Control Rod

$30.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 634-05112-0499

Rim Assembly, 12.0 x 7.0
(Superseded to 753-10244)

$186.99

$

Usually ships in 3-6 days

0
